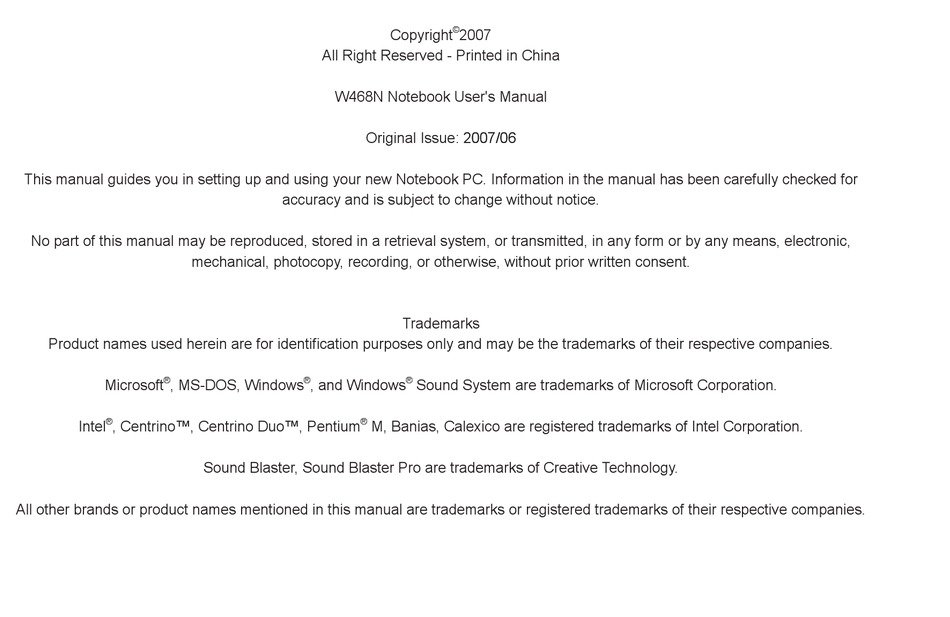

W468N Notebook User's Manual
Original Issue: 2007�06
2007�06
This manual guides you in setting up and using your new Notebook PC. Information in the manual has been carefully checked for
accuracy and is subject to change without notice.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical, photocopy, recording, or otherwise, without prior written consent.
Trademarks
Product names used herein are for identification purposes only and may be the trademarks of their respective companies.
®
®
®
Microsoft
, MS-DOS, Windows
, and Windows
Sound System are trademarks of Microsoft Corporation.
®
®
Intel
, Centrino™, Centrino Duo™, Pentium
M, Banias, Calexico are registered trademarks of Intel Corporation.
Sound Blaster, Sound Blaster Pro are trademarks of Creative Technology.
All other brands or product names mentioned in this manual are trademarks or registered trademarks of their respective companies.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W468N and is the answer not in the manual?

Questions and answers

Related Manuals for Gigabyte W468N

Summary of Contents for Gigabyte W468N

  • Page 1 © Copyright 2007 All Right Reserved - Printed in China W468N Notebook User's Manual Original Issue: 2007�06 2007�06 This manual guides you in setting up and using your new Notebook PC. Information in the manual has been carefully checked for accuracy and is subject to change without notice.

  • Page 2: Safety Instructions

    Safety Instructions Use the following safety guidelines to help protect yourself and your computer. General Warnings • Do not operate your portable computer for an extended period of time with the base resting directly on your body. With extended operation, heat can potentially build up in the base. Allowing sustained contact with the skin could cause discomfort or, eventually, a burn.
  • Page 3 • Place the AC adapter in a ventilated area, such as a desktop or W468N Notebook User's Manual on the floor, when you use it to run the computer or to charge the battery. Do not cover the AC adapter with papers or other items that will reduce cooling;...
  • Page 4 - Do not crush, disassemble, puncture, or incinerate the short external contacts of battery pack. - Do not connect the positive (+) and negative (-) terminals with a metal object such as wire. Short-circuiting may occur leading the battery pack to leak acid, overheat, emit smoke, burst and�or ignite.
  • Page 5 PSTNs provided in different countries, the approval does not, in itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event W468N Notebook User's Manual of problems, you should contact your equipment supplier in the first instance.
  • Page 6 rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating. 9. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short- out parts that could result in a fire or electric shock.
  • Page 7 W468N Notebook User's Manual BSMI 通告 (僅限於台灣地區) 如果您在電腦的底部、側面或背面板上找到一個 標誌，則適 用於以下部份的相關規定： Macrovision License of Notice This product incorporates copyright protection technology that is protected by methods and claims of certain U.S. patents and other intellectual rights owned by Macrovision Corporation, and other rights owners.
  • Page 8 About this User’s Manual This user’s manual is designed to let you easily find the information you need to get the most from your notebook. • Introduces you to the features of your notebook. • Gives you useful details on using your notebook. •...

  • Page 9: Table Of Contents

    High Power USB Port ... 6 1.3.6 IEEE 1394 Port ... 7 1.3.7 New Card Slot (For PCI Express Card) ... 7 W468N Notebook User's Manual 1.3.8 Multiple Digital Media Card Slot ... 7 1.3.9 Audio Ports ... 7 1.4 Rear Side ... 7 1.5 Bottom Side ...
  • Page 10 3.2.4 Travel Tips ... 17 3.2.5 If Your Notebook Is Lost or Stolen ... 17 Chapter 4 Peripherals 4.1 PCI Express Cards ... 19 4.1.1 PCI Express Card Types ... 19 4.1.2 Installing a PCI Express Card ... 19 4.1.3 Removing a PCI Express Card ...

  • Page 11: Chapter 1 Introducing Your Notebook

    W468N Notebook User's Manual Chapter 1 Introducing Your Notebook...

  • Page 12: Front Side

    1.1 Front Side The following picture shows the front side of the W468N notebook. LCD Module Latch Built-in Camera Built-in Microphone Display Power Button Easy Buttons Keyboard Status Lights 1.1.1 LCD Module Latch The LCD Module Latch secures the display case to your notebook.

  • Page 13: Keyboard

    - Keyboard Indicators: HDD access indicator Num Lock On�Off indicator Caps Lock On�Off indicator Scroll Lock On�Off indicator W468N Notebook User's Manual 1.1.6 Keyboard The keyboard includes a numeric keypad and the Microsoft® Windows® logo key. See 2.1 Keyboard and Touch Pad for details on using keyboard shortcuts.

  • Page 14: Touch Pad

    1.1.8 Touch Pad The touch pad works as a desktop mouse. For more information, see 2.1 Keyboard and Touch Pad. 1.1.9 Touch Pad Buttons The left and right touch pad buttons work as the left�right buttons on a standard mouse. 1.1.10 Wireless Communication Switch Turns the wireless communication function on or off.

  • Page 15: Right Side

    1.2 Right Side The following picture shows the right side of the W468N notebook. Optical Media Drive USB Ports AC Adapter Connector 1.2.1 Optical Media Drive The optical media drive provides a means for you to import�export data and small files into/from your computer. Depending on the configuration of your computer, you may either be able to record CDs or play DVDs.

  • Page 16: Left Side

    1.3 Left Side The following picture shows the left side of the W468N notebook. VGA Port LAN Jack Modem Jack S-Video out Port High Power USB Ports IEEE 1394 Port New Card Slot Multiple Digital Media Slot Microphone Jack Headphone Jack 1.3.1...

  • Page 17: Ieee 1394 Port

    You can connect a headphone or an external speaker to the port and a microphone to the port. The built-in speakers are disabled when a device is connected to the 1.4 Rear Side The following picture shows the rear side of the W468N notebook. port. W468N Notebook User's Manual...

  • Page 18: Bottom Side

    1.5 Bottom Side The following picture shows the bottom side of the W468N notebook. Battery Pack Battery Release Latch HDD Cover Battery Lock Switch Thermal Cover Memory Module Cover 1.5.1 Battery Pack With a charged battery pack installed, you can use your notebook without connecting it to an electrical outlet.

  • Page 19: Chapter 2 Operating Your Notebook

    W468N Notebook User's Manual Chapter 2 Operating Your Notebook...

  • Page 20: Keyboard And Touch Pad

    2.1 Keyboard and Touch Pad Ø Numeric Keypad Ø Keyboard Shortcuts Ø Windows Logo Key Functions Ø Touch Pad Ø Customizing the Touch Pad Ø Finger Printer 2.1.1 Numeric Keypad Keypad numbers and symbols are marked in blue on the lower right edge of the keypad keys.

  • Page 21: Windows Logo Key Functions

    Stop Fast Rewind Fast Forward Number Lock Scroll Lock Caps Lock W468N Notebook User's Manual 2.1.3 Windows Logo Key Functions Opens Windows Explorer Opens the Run dialog box Opens the Search Results dialog box Opens the Search Results - Computers...

  • Page 22: Touch Pad

    2.1.4 Touch Pad The Touch Pad responds to the movements and pressure of your finger, allowing you to move the cursor around the screen, in the same way you would with a mouse. Place your fingers on the keyboard in the normal typing position. You can use the Touch Pad by moving either your right or left thumb off the space bar and on to the Touch Pad.
  • Page 23 • Do not paste stickers or write on the finger printer. • Do not touch the sensor with a finger or any object with built-up static electricity. W468N Notebook User's Manual 2.1.6.1 Delete the Finger Printer Data Saved fingerprint data is stored in the non-volatile memory inside the finger printer.
  • Page 24 Chapter 3 Caring for Your Notebook...

  • Page 25: Caring For Your Notebook

    Never spray cleaning products directly onto your notebook's case or display. Only use products designed for cleaning computer displays. W468N Notebook User's Manual 3.1.1 Cleaning Your Notebook and Keyboard 1. Shut your notebook down, turn it off and disconnect it from the electrical outlet and any external devices, such as a printer.

  • Page 26: Precautions

    3.1.5 Precautions • Do not spill liquids on the keyboard. If liquid is spilt on the keyboard, turn your notebook off immediately. Leave off overnight to let it completely dry out before using it again. • Do not turn off your notebook if a drive light indicates a drive is active.

  • Page 27: Setting A Password

    To enable password protection on Boot, use the down key to select Password on boot. Press Enter and select Enabled. W468N Notebook User's Manual 3.2.4 Travel Tips • If you are traveling abroad, carry proof of ownership—or of your right to use the computer if it is company-owned—to speed your...

  • Page 28: Chapter 4 Peripherals

    Chapter 4 Peripherals...

  • Page 29: Pci Express Cards

    4.1 PCI Express Cards Ø PCI Express Card Types Ø Installing a PCI Express Card Ø Removing a PCI Express Card W468N Notebook User's Manual 4.1.1 PCI Express Card Types The New Card slot supports one 54mm type PCI Express Card.

  • Page 30: Removing A Pci Express Card

    1. Press to release the dummy card from the New Card slot. 2. Hold the PCI Express card with its orientation symbol pointing into the slot and the topside of the card facing up. 3. Slide the card into the slot until it clicks into the connector. 4.

  • Page 31: Chapter 5 The Battery

    W468N Notebook User's Manual Chapter 5 The Battery...

  • Page 32: Battery

    5.1 Battery Ø Battery Performance Ø Checking the Battery Charge Ø Power Meter Ø Low-Battery Warning Ø Charging the Battery Ø Removing a Battery Ø Installing a Battery Ø Storing a Battery Ø Working With Extra Battery Packs Ø Maximizing Battery Life 5.1.1 Battery Performance The performance of the battery can vary, depending on operating...

  • Page 33: Low-Battery Warning

    W468N Notebook User's Manual Once a battery pack is fully charged for the first time, use your notebook on battery power until the battery discharges completely.

  • Page 34: Storing A Battery

    5.1.8 Storing a Battery If storing your notebook for an extended period of time, remove the battery. Fully charge the battery before using your notebook again. 5.1.9 Working With Extra Battery Packs If you spend a lot of time traveling, working without connecting your notebook to an electrical outlet, it may be a good idea to carry additional battery packs so you can quickly replace a discharged battery and continue working.
  • Page 35 W468N Notebook User's Manual Chapter 6 The BIOS Setup Program...

  • Page 36: Chapter 6 The Bios Setup Program

    6.1 Introduction The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor the operation of your notebook to your individual work needs. A ROM-based configuration utility displays the system's configuration status and provides you with a tool to set system parameters.

  • Page 37: Accessing The Bios Setup Program

    6.2.1 Accessing the BIOS Setup Program To access the BIOS Setup program, press the [F2] key as soon as the computer starts up and you see the Phoenix BIOS screen. W468N Notebook User's Manual PhoenixBIOS Setup Utility Main Advanced Security...

  • Page 38: Launching Submenus

    Exit Allows the user to save CMOS setting and exit the Setup program. To move between menu bar items, use the [◄] and [►] arrow keys until the desired item is highlighted. For example, if you want to move from the Main menu to the Advanced menu, press the right arrow key [►] once.

  • Page 39: The Advanced Menu

    Language This field allows the user to change the languages between English and Japanese in the BIOS Setup Program. W468N Notebook User's Manual 6.4 The Advanced Menu Selecting Advanced on the menu bar displays the Advanced Menu. Each field on this menu is covered below.

  • Page 40: The Security Menu

    6.5 The Security Menu The notebook’s advanced security system allows you to set a password to prevent unauthorized access to system resources, data, and the BIOS Setup program. This section covers each Security parameter. Selecting Security from the menu bar displays the Security menu.
  • Page 41 Built-in HDD1 Status HDD Password is set. Clear HDD Password is not set. Built-in HDD1 Password Select User Only User+Master Master password must be set first before W468N Notebook User's Manual Setup Notice [Continue] Setup Warning Re-enter password. password. assword.
  • Page 42 Set HDD User Password / Set HDD Master Password Enter this field always shows the message. While this field is highlighted, press [Enter]. The following message is shown: Set HDD Master Password Enter New Password Confirm New Password If there is an old password then setup will prompt with the following window instead and a current password will be required to be entered at first: Set HDD Master Password...

  • Page 43: The Tpm State Menu (*)

    Main Advanced CD�DVD Help ↑↓ select item Exit ←→ select menu W468N Notebook User's Manual data from being used and Deactivated security chip prevents a user from taking ownership. PhoenixBIOS Setup Utility Security TPM State(*) Boot Exit...

  • Page 44: The Exit Menu

    6.8 The Exit Menu PhoenixBIOS Setup Utility Main Advanced Security TPM State(*) Exit Saving Changes Exit Discarding Changes Load Setup Defaults Help ↑↓ Select Item F5�F6 Change Values Exit ←→ Select Menu Enter Execute Command Exit Saving Changes Allows the user to save changes to CMOS and reboot system. The following message is prompted when user press [Enter] on the item.

  • Page 45: Chapter 7 Software Description & Button Definition

    W468N Notebook User's Manual Chapter 7 Software Description & Button Definition...

  • Page 46: Q-Charging Button With Smart Battery Software

    Smart Battery software. When you press the Q-Charging button, a pop-up message will appear ‘Charging in progress. Avoid disconnecting AC adaptor’. DO NOT disconnect the AC adaptor, as this may cause irreversible damage to your battery and laptop.

  • Page 47: Using The Power Usb Button

    W468N Notebook User's Manual 7.2 Using the Power USB Button The laptop is equipped with a power USB function, which allows you to increase the power output when charging an external USB device, such as a mobile phone or PDA.

  • Page 48: Appendix A Specifications

    Appendix A Specifications...

  • Page 49: Specifications

    • 9.5mm height, 2.5” HDD • Up to 160GB capacity • 5400 RPM • Easily removable • Supports SATA 1.5Gb�s (150MB�s) W468N Notebook User's Manual Optical Disc Drive (ODD) • 5.25” 12.7mm height DVD-Super Multi Drive Options • 256MB�512MB�1GB�2GB SO-DIMM DDR-II modules •...
  • Page 50 WLAN • PCI Express base specification compliant • 802.11 a�g�n, 802.11 a�b�g (INTEL chip) Modem • Internal Modem with MDC solution (MDC1.5) Bluetooth • Foxconn Bluetooth V2.0+EDR (Broadcom chipset) Mini Card Organization • One Mini card slot for WLAN • One 3G module •...

  • Page 51: Appendix B Recovery Update Notices

    W468N Notebook User's Manual Appendix B Recovery Update Notices...
  • Page 52 How to restore your W468N to factory defaults Time to restore: When your computer is infected by virus or there is any other reason that you want to restore your operation system to the factory defaults. Execute Xpress Recovery2 Lite (XR2 Lite) Professional Recovery Utility.Please take the following procedures:...
  • Page 53 W468N Notebook User's Manual 5. After all the selections have been made, the screen shows "RESTORE NOW…", indicating your computer is now recovering the operation system data. When the recovery is complete, the computer will automatically restart and restore to...

  • Page 54: Appendix C Service Center
