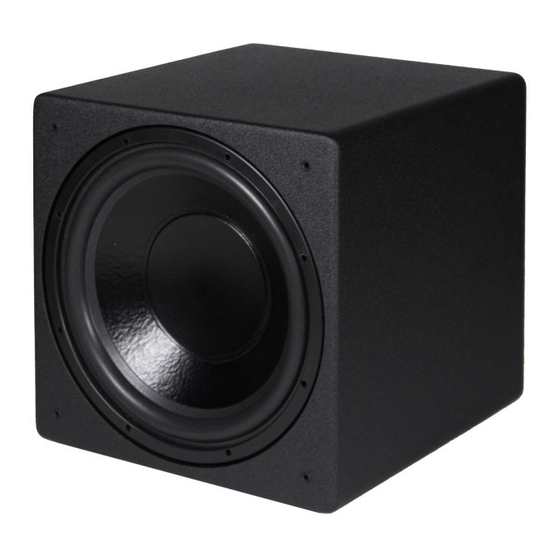

Summary of Contents for Power Sound Audio S1510
- Page 1 USER GUIDE SUBWOOFERS...
- Page 2 AVIS: CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE FUSE AND RATING. The lightning fl ash with arrowhead symbol is intended to alert the user to the presence of uninsulated “danger- ous voltage” within the product’s enclosure that may be of suffi...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Read Instructions - All safety and operating instructions should be read before the subwoofer is operated. Retain Instructions - The safety and operating instructions should be retained for future reference. Heed Warnings - Adhere to all warnings on the subwoofer and in the operating instruc- tions.
- Page 4 Warranty..............15 Please read before unpacking your subwoofer. We suggest unpacking your Power Sound Audio subwoofer on a car- peted fl oor. This will avoid accidental scratches to a hard surface or to the subwoofer as you remove it from the shipping box. Your Power Sound Audio subwoofer may be very heavy.
- Page 5 Unpacking Unpacking Process (S1510, S1811 V1510, V1811, S3010 & S3611) 1. Inspect the shipping box for any damage. If you notice any damage please contact us at support@powersoundaudio.com. 2. With assistance, place the subwoofer box upside down, so the UP arrows are pointing at the ground.
-
Page 6: Unpacking
Unpacking Unpacking Process (S1510DF & V1510DF) 1. Inspect the shipping box for any damage. If you notice any damage please contact us at support@powersoundaudio.com. 2. With assistance, place the subwoofer box with the UP arrows point- ing at the ceiling. 3. -
Page 7: Placement
Placement Proper placement of your new Power Sound Audio subwoofer is very important. Bass frequencies are non-directional, mean- ing the human ear cannot locate a properly functioning subwoof- er in a typical home theater environment. While there are “rules of thumb” regarding placement options, every room is a little dif- ferent. - Page 8 Corner placement away from large opening Nearfi eld placement Multiple subwoofer placement Option 1 (collocated) Option 2...
-
Page 9: Installation
Installation Your subwoofer was designed for easy installation in a typical home theater environment. Please read all the installation instructions to properly optimize your sub- woofer. WARNING - Always be sure the power is OFF to any audio component before connecting or disconnecting any wires or cables. - Page 10 AMPLIFIER CONNECTIONS AND CONTROLS LED INDICATOR POWER = The subwoofer is on when the LED is green. STANDBY = The subwoofer is in standby mode when the LED is red. The amplifi er will enter standby mode after 20 minutes without a signal. OFF = The subwoofer is off...
- Page 11 (RCA) on the rear panel of your receiver/processor to the LEFT/LFE input jack on the subwoofer amplifi er. If you have a two channel stereo system please contact Power Sound Audio to discuss the best option to connect your new subwoofer.
- Page 12 SETUP PROCEDURES RECEIVER/PROCESSOR BASS MANAGEMENT OPTIONS Once the subwoofer is connected to your receiver or processor you should enter the “set up” menu and set all of your speakers to “small”. If they give you options for the crossover frequency e.g., 40hz, 60hz, 80hz, 100hz, start with 80hz.
- Page 13 SETUP PROCEDURES DELAY SETTING The DELAY control is used to properly blend the main speakers with the subwoofer through the crossover region. The goal is to adjust the DELAY control so the subwoofer driver moves in unison with the main speaker drivers through the crossover region.
-
Page 14: Warranty
Warranty Power Sound Audio warrants its products to be free from original manufacturing defects in materials and workmanship for a period of 5 years from the original date of purchase. The warranty applies to the product and not the end user. If...
