Fixing and Adjustment

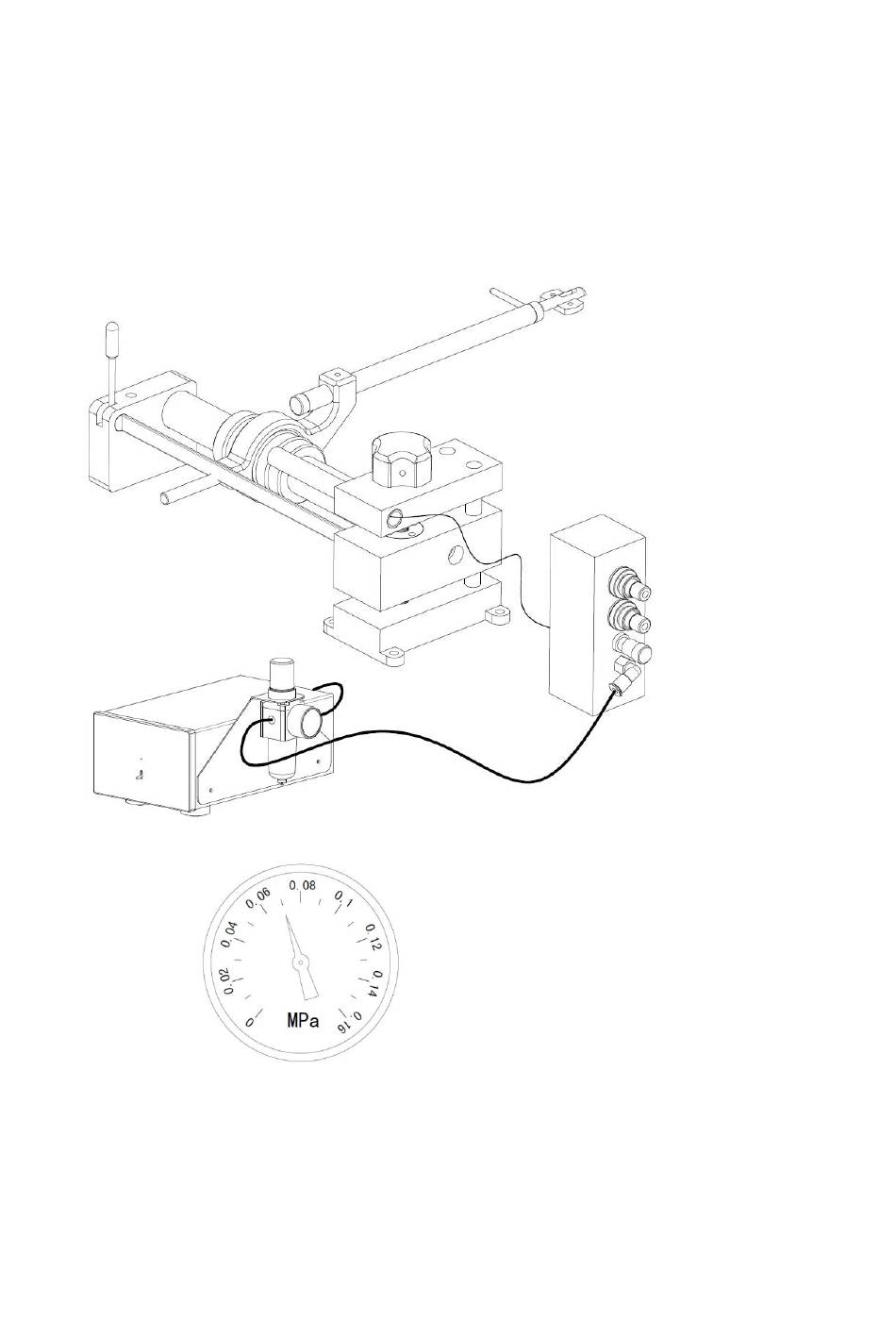

1. Remove the pump from the package. Follow the picture, make sure it use
the airtube to connect with the water separator and tonearm. Then turn on
pump. If the installation is correct, barometer will show 0.05MPa. Make sure
the air bearing move is very smooth.
Note1: It is very important to adjust the level of the air float tonearm. First
you can adjust feet. If necessary, you also adjust the screw 1 confirm
with the spirit level. In the end fix screw 1.
