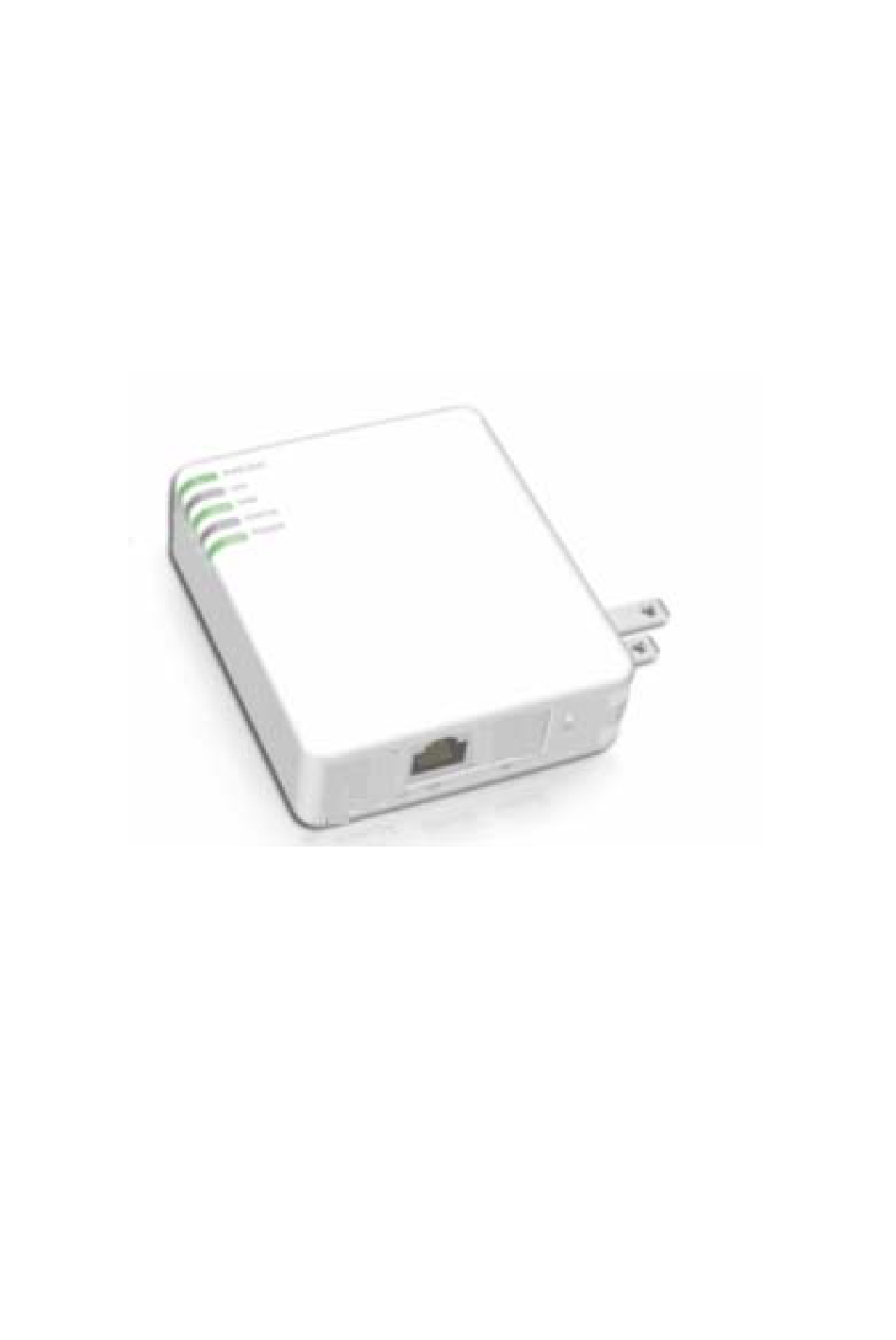

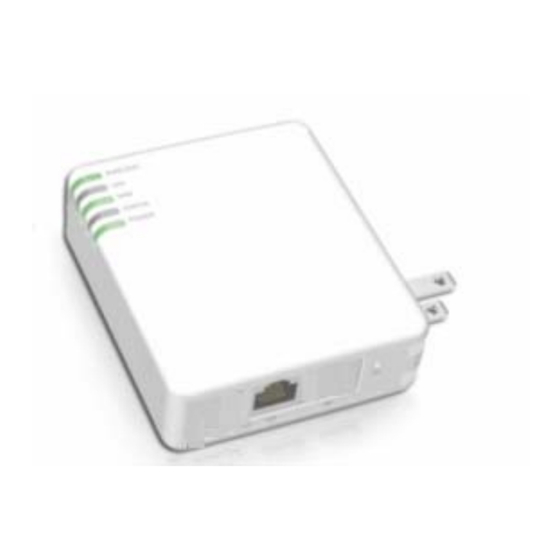

- Page 1 PR126g Power Line Router User Guide Quick Setup Guide V1.0...
-
Page 2: Table Of Contents
Table of Contents TABLE OF CONTENTS ........................... 2 FCC CAUTION ............................4 CHAPTER 1 INTRODUCTION......................5 PR 126 NSTRUCTION OF ................5 EATURES ........................5 HE INTRODUCTION OF FUNCTION OF THREE ODES UICK ETUP ......6 1.3.1 The introduction of Quick Setup of Router mode........6 ... - Page 3 CHAPTER 3 THE MAIN FRAME OF FAMILY APPLICATIONS ......... 23 AMILY PPLICATIONS ......................23 ARGET PPLICATIONS ......................24 Quick Setup Guide V1.0...
-
Page 4: Fcc Caution
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Chapter 1 Introduction
Chapter 1 Introduction The Main Instruction of PR 126g The Mini Router of PR126g is a portable and convenient wireless solution for the traveling business person, which features with router, bridge, AP and USB port, and it can connect with USB MFP, provide with the shared of scanner, printer and card reader to the users of local area network. -
Page 6: The Introduction Of Function Of Three Modes Quick Setup
It’s used with the attached transferor to connect with the audio equipment, and play music directly via local area network. Encryption and authentication system It has the encryption and authentication system of WEP, WPA, WPA2, and 802.11x, provide the users with more data protection. 10. -
Page 7: The Introduction Of Quick Setup Of Ap Mode
When the slide switch turn to AP mode, Navi PR126g will become the Bridge with two LAN ports. Navi PR126g can connect with the up Router or AP via LAN port, Wireless(WDS) or Powerline, and attain the IP via up DHCP. -
Page 8: Basic Setup
1.3.4 The main introduction of PC Utility Navi PR126g provides with the utility program, which can automatically detect the operation mode of Router and its connected USB device, so that it will help the users can easily and quickly do the setup step-by-step without entering GUI;... -
Page 9: Hardware Specification
Hardware specification 1.4.1 Hardware Features Item Specification Key Components Star 9105gu Flash ROM 8MBytes (NAND Gate) DRAM 32Mbytes Communication Interfaces WAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX LAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX USB Port 2 x USB2.0 Host Interface, for USB Printer, Webcam, HDD, Flash, Speaker, All in One... -
Page 10: Hardware Block Diagram
Receive Sensitivity Nominal Temp Range: 11Mbps: 10-5 BER @ -83 dBm, TYP. Dimensions 91mm(L) x 78mm(W) x 30mm(H) Button Reset button – Press one second for device reset and press over 5 second for restore to factory default setting Slide switch Switch to Router, AP or Client mode. -
Page 11: Led Feature Spec
1.4.3 LED Feature SPEC Function Color Status Description Power Power indication Power is being applied to this Green On product Active status Blinkin Status System status Green Reset/Firmware updates in progress 120ms Connected at 100Mbps Green Blinkin 10Mbps TX/RX Activity g 30ms WAN port activity Connected at 10Mbps... -
Page 12: Software Specification
Software Specification 1.5.1 Router Mode Item Specification Major Modules Kernel ucLinux 2.4.x Protocol TCP/IP v4 Functions WAN connection Dynamic IP PPPoE Static IP PPTP Routing DHCP server/client, DNS server UPnP (Universal plug and play) Virtual Server: 20 sets virtual server DMZ Host: One DMZ host Firewall URL blocking: 20 sets rule based URL blocking... -
Page 13: Ap Mode
WebCamera Webcam View Via Browser By Internet Real Time Server Video / Picture monitor and record from LAN/WAN Picture recording to FTP server or USB HDD Motion Detection and Send E-mail Alert. FTP Server User account create assign folder path Anonymous login User login Supervisor login... - Page 14 Camera Webcam view via browser by internet real time Server Video/Picture monitor and record to LAN/WAN PC Picture recording to FTP server or USB HDD Motion detection and send e-mail alert. FTP Server User account create assign folder path Anonymous login User login Supervisor login Wireless...
-
Page 15: Client Mode
1.5.3 Client Mode Item Specification Major Modules Kernel uc Linux 2.4.x Protocol TCP/IP v4 Functions Site Survey Searching and connecting wireless access point (AP) Wireless IEEE 802.11g backward compatible IEEE802.11b 2. Authentication: Open System, Share Key, WPA, WPA-PSK. WEP Encryption: 64/128 bit 3. -
Page 16: Necessary Approvals
Web-based interface, accessible from IE, Mozilla and Netscape. Wizard supported. SNMP Embedded SNMP agent, standard and proprietary MIBs. HP Open View compatible. Software Upgrade Remote upgrade Upgradeable from Web and TFTP, checksum supported Driver upload Upload USB MFP Scanner Driver The followings are the system requirements: 1. -
Page 17: Mfp
The following points are the Navi PR126g USB Device Support List: 1.7.1 Navi PR126g support LPR protocol, ie if the printer driver could install on Windows 98/2000/XP. The printer can work on Navi PR126g product series. MFP List Samba Printer's... -
Page 18: Web Camera
1.7.2 Web Camera Navi PR126g support OV511 、 OV511+ and SAA8115HL 、 SAA8116HL web cam chipset only. Vendor name Product name Chipset Tested Aiptek HyperVcam Mobile OV511+ Aiptek HyperVcam Fun OV511+ Aiptek HyperVcam Home OV511+ Askey VC010 SAA8115HL... - Page 19 Hawking Tech. UC-110 OV511+ Hawking Tech. UC-300 OV511 Hawking Tech. UC-310 OV511 I-View NetView NV300M OV511 Intel Me2Cam OV511+ LG Electronics LPC-UM10 OV511+ LG Electronics LPC-UM15 OV511+ Lifeview USB CapView OV511+ Lifeview RoboCam OV511 Lifetec LT 9388 OV511 Logitech QuickCam 3000 Pro SAA8116HL Logitech QuickCam 4000 Pro...
-
Page 20: Usb Hdd
TerraCam USB PRO OV511+ Waytech I-Pac VIC-30 OV511+ Webeye 2000B OV511+ 1.7.3 USB HDD Navi PR126g support FAT16 and FAT32 format file system. Below list is tested product Flash Vendor Model Name Chipset Note Tested MEMORY BLOCK 積木碟 Panram USB2.0 USB2.0... -
Page 21: Operation System
32MB 捷元 黑麻吉 SD 讀卡 MP3 昕威電子 Transcend JetFlash 128 MB USB 2.0 SanDisk Curzer Mini Flash 256MB USB 2.0 Cool Drive(U339) 128 MB USB 2.0 勁永 KingMax 128MB USB 1.0 跳鼠王 風行 SONA 128MB Kinggaroo USB 2.0 USB HDD Vendor Model Name Chipset Note... -
Page 22: Introduction Of Int5500 Chip Set (Home Plug1.0 With Turbo)
Introduction of INT5500 Chip Set (Home Plug1.0 with Turbo) Intellon's high speed powerline chipset INT5500CS is comprised of the INT5500, an integrated powerline MAC/ PHY transceiver, and its companion INT1200, an analog front end IC. The INT5500CS is fully compatible with the HomePlug1.0 with Turbo specifications, and capable of delivering up to 85 Mbps over the power line. - Page 23 The INT5500CS provides two types of host interface for maximum system flexibility: An MII PHY (IEEE 802.3u) interface for interconnection to Ethernet • controllers An MII Host / DTE interface (IEEE 802.3u) for direct connection to an • Ethernet PHY The INT5500CS implements Intellon's patented OFDM technology, which forms the basis for the HomePlug1.0 with Turbo specification.
- Page 24 Target Applications The following main points are the target family applications: High Definition (HD) and Standard Definition (SD) video distribution • TV over IP (IPTV) • Backbone for WiFi, UWB and Wireless USB • Higher data rate broadband sharing • Shared broadband internet access •...
