Summary of Contents for ENERGY SISTEM Multiroom Tower Wi-Fi
-
Page 1: Table Of Contents
ENGLISH Introduction..................................Care and maintenance ..............................Technical specifications ..............................Product contents ................................Connectivity and commands ............................Switching the tower on and off ............................ Downloading the Wi-Fi app ............................Initial settings ................................. Playback settings ................................How to use the Wi-Fi app .............................. - Page 2 2/21 energysistem.com...
-
Page 3: Introduction

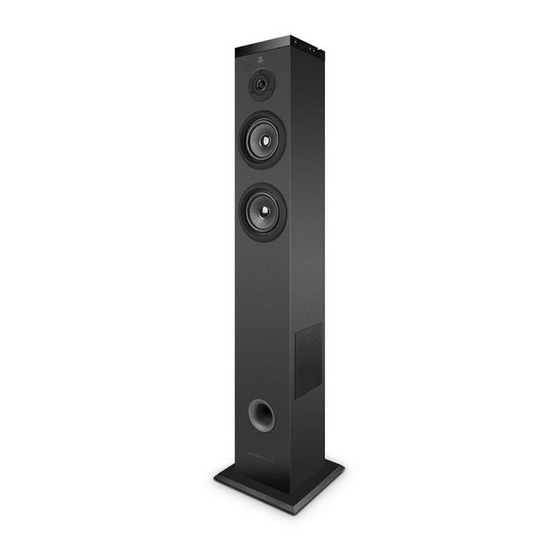

Introduction. Energy Sistem would like to thank you for your trust and for buying this Multiroom Tower Wi-Fi. We hope you enjoy it. This Wi-Fi system gives an amazing 2.1 sound with 60 W output power and lot of possibilities to play your favourite songs around the house either via Bluetooth, external memories or audio-in connections. -
Page 4: Technical Specifications
APP, Bluetooth and Audio input 2. In case that you connect a device to any of the USB or SD onputs, the Multiroom Tower Wi-Fi will change automatically to that function. If one or all inputs are being used, you will be able to change between all the available functions by pressing the CHANGE FUNCTION (4) button. - Page 5 5/21 energysistem.com...
-
Page 6: Switching The Tower On And Off
Switching the tower on and off Once the Multiroom Tower Wi-Fi has been plugged into a socket, turn it on by moving the ON-OFF SWITCH (16) on the back side of the tower to the "ON" position. From that moment on, you can turn it on or off by pressing the PLAY/PAUSE button (8) on the top display for 2 seconds or the ON/OFF button (23) on your remote control. - Page 7 mode. 2) Run the app and select the "Add Device" option. Please verify that the device is connected to your private Wi-Fi network. 3) Enter the password that you use to connect to your private Wi-Fi network and press "Next". 7/21 energysistem.com...
- Page 8 ____ 4) Press and hold your speaker's Wi-Fi SYNC (4) button until you hear "Wating for Wi-Fi connection". A voice message will confirm that the synchronization has been established successfully. If this does not happen, please repeat once again the process starting at point 1). 5) Choose the name you want to give to your speaker.
-
Page 9: Playback Settings
Once you have selected your speaker's name, press "Done". Your speaker is now ready! Note: there is an alternative option to establish the connection between your speaker and your private Wi-Fi network. Please take a look at the "How to make your speaker connect to your Wi-Fi network" section. Playback settings Once you have definded your speaker's settings, you have the following options to playback your favourite music: How to use the Wi-Fi app... -
Page 10: Favourites
Favourites This option will enable you to access the songs that you like most and that have been previously saved quite fast. This list has been conceived to add and delete songs more easily. My music Playback the songs that you have stored on your device. In order to make it easier, songs are sorted out into Albums and Artists. -
Page 11: Removable Usb/Sd Memories
Audio inputs Your Multiroom Tower Wi-Fi has two audio inputs to connect any external device. AUX 1. It is on one side of the top display. 3.5 mm mini jack input. All other play modes will be muted when the speaker detects the input signal. -
Page 12: Individual Multiroom Mode
Control the music on each speaker with this app. Each speaker is represented by one track. You can play different music content on each speaker or the same song through all of them simultaneously. Individual Multiroom Mode This Multiroom mode is set by default. Each speaker will play music independently and you can control each of them using the application or interacting directly with the device by touching the top display. -
Page 13: How To Connect To The Speaker's Own Network
You can assign a different channel to each speaker. L = Left channel R = Right channel LR = Stereo The synchronized mode remains active until it is disabled manually, so if you change the master speaker's play mode through the CHANGE FUNCTION (4) button, for instance, to Bluetooth mode, you will be able to stream the contents via Bluetooth to all synchronized speakers. -
Page 14: How To Connect Your Speaker To Your Pc
3.2) Open iTunes, use the AirPlay protocol and select the device as external player. Sound equalizer Your Multiroom Tower Wi-Fi has two controllers at the back that enable users to adjust equalization: Adjust Treble (17). This function is indicated as "Treble". -
Page 15: Charging Devices
EQ 4: Classic. Charging devices Your Multiroom Tower Wi-Fi includes two USB CHARGING PORTS (12) to connect an USB cable and charge other devices such as smartphones, tablets or MP3 Players, even if the tower is playing music. Technical specifications of USB CHARGING PORTS:... -
Page 16: Restore Default Settings
Restore default settings. You can delete the current settings and restore factory settings. To do so, select the "APP" mode and press and hold Restore settings (5) for 10 seconds. You will hear a voice message indicating the process has started. Wait for approximately 2 minutes until the process finishes. - Page 17 At this moment you have to run the app in the background (without closing it) and access your device Wi-Fi settings. You will have to connect to the speaker's Wi-Fi network next. For more information please see "How to connect to the speaker's network".
-
Page 18: Minimum Router Requirements
Wi-Fi channel is not overflowed. Wi-Fi setup wizard Your Multiroom Tower Wi-Fi comes with a Wi-Fi setup wizard to adjust all the Wi-Fi parameters of your speaker. There are two options to run the setup wizard: 18/21 energysistem.com... - Page 19 The first one consists in connecting to the network's Tower. In order to know how to connect to this net, please see the "How to connect to the speaker's net" section and access the 10.10.10.254. IPS address from an Internet browser. The second option consists in accesing the speaker's IP address from a device connected to the same network as the speaker using an Internet browser.
-
Page 20: Warranty
Warranty Energy Sistem Technology, S.A. is liable for any lack of conformity that exists at the time the goods are purchased during a period of 36 months. This warranty covers any defects in workmanship or materials. This warranty does not cover any failure of the product due to accidents, misuse or alteration made by an unauthorized person. - Page 21 We declare under our sole and exclusive responsibility that the product: Description: Tower Wi-Fi speaker Brand: Energy Sistem Model: Multiroom Tower Wi-Fi Manufacturer: Energy Sistem Technology, S.A. Manufacturing country: China referred to in this declaration complies with the essential norms and standards...
