Table 1: IN5302 (XGA)
Range of distance to the screen for a given screen size
Distance to screen
Diagonal Screen Minimum distance
Size (inches/m) (feet/m)
60/1.524 6.43/1.96
80/2.032 8.63/2.63
90/2.286 9.71/2.96
150/3.810 16.34/4.98
Table 2: IN5304 (WXGA)
Range of distance to the screen for a given screen size
Distance to screen
Diagonal Screen Minimum distance
Size (inches/m) (feet/m)
60/1.524 6.66/2.03
80/2.032 8.92/2.72
90/2.286 10.07/3.07
150/3.810 16.93/5.16
Maximum Distance
(feet/m)
10.63/3.24
14.21/4.33
16.01/4.88
26.77/8.16
Maximum Distance
(feet/m)
10.20/3.11
13.71/4.18
15.45/4.71
25.85/7.88

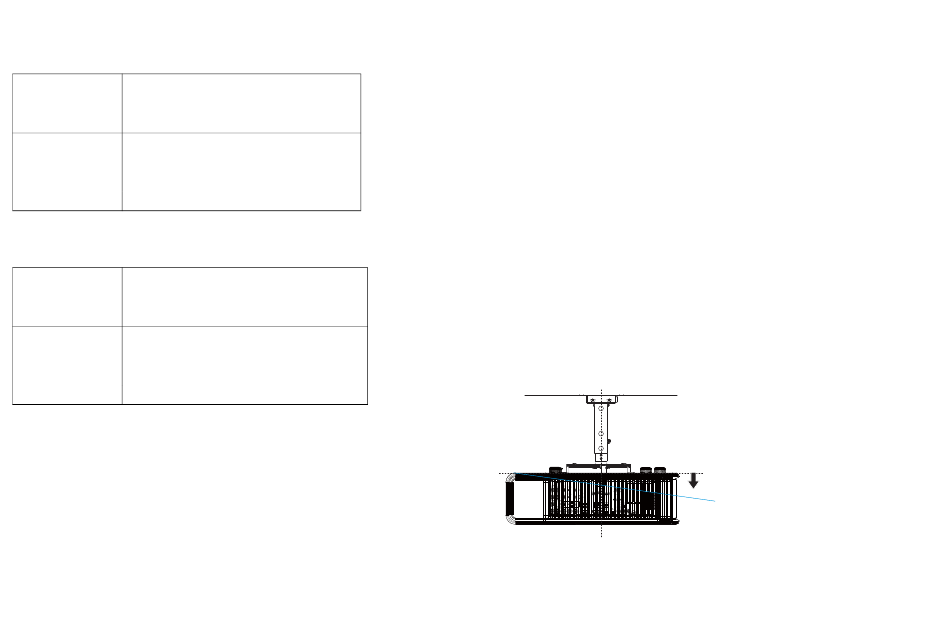

Ceiling Mount

If you wish to install the projector on the ceiling:
• The projector must be installed by a qualified professional in order to
ensure proper operation and reduce the risk of hazards or injury. It is
not recommended you install the projector yourself.
• We strongly recommend using InFocus approved ceiling mounts for
proper fitting, ventilation and installation. Refer to the installation
guide that comes with the InFocus Ceiling Mount Kit (p/n SP-CEIL-
INSTALL) for more information. The warranty does not cover any
damage caused by use of non-approved ceiling mount kits or by
installing in an improper location.
• The ceiling must be strong enough to support the projector and the
installation must be in accordance with any local building codes. Con-
sult your dealer for more information.
• Maximum supported physical pitch is +/-8º.
• Maximum supported physical horizontal roll is +/-8º.
• Keep all adjacent surfaces 3" (76mm) from sides, front and rear and
.87" (22mm) from the bottom of projector to preserve required airflow
around the projector.
audio 5 audio 4 audio 3
L L L audio 1 audio out screen trigger
12V DC
250 mA
wireless
R R R ready
audio 2 IR DisplayLink TM
+5V DC; 2A certified
serial
video 5 video 4 LAN
monitor out
LitePort computer 1
DisplayLink
computer 4 video 3
V H B G R
computer 2 computer 3 Y Pb Pr
remote
8
8º
