Connecting Devices; Bottom Connectors; Side Connectors - Philips 50PUN6204/61 User Manual

8 Connecting
Devices
This section describes how to connect devices
with different connectors.
Note
•
You can use different types of connectors
to connect a device to your TV.

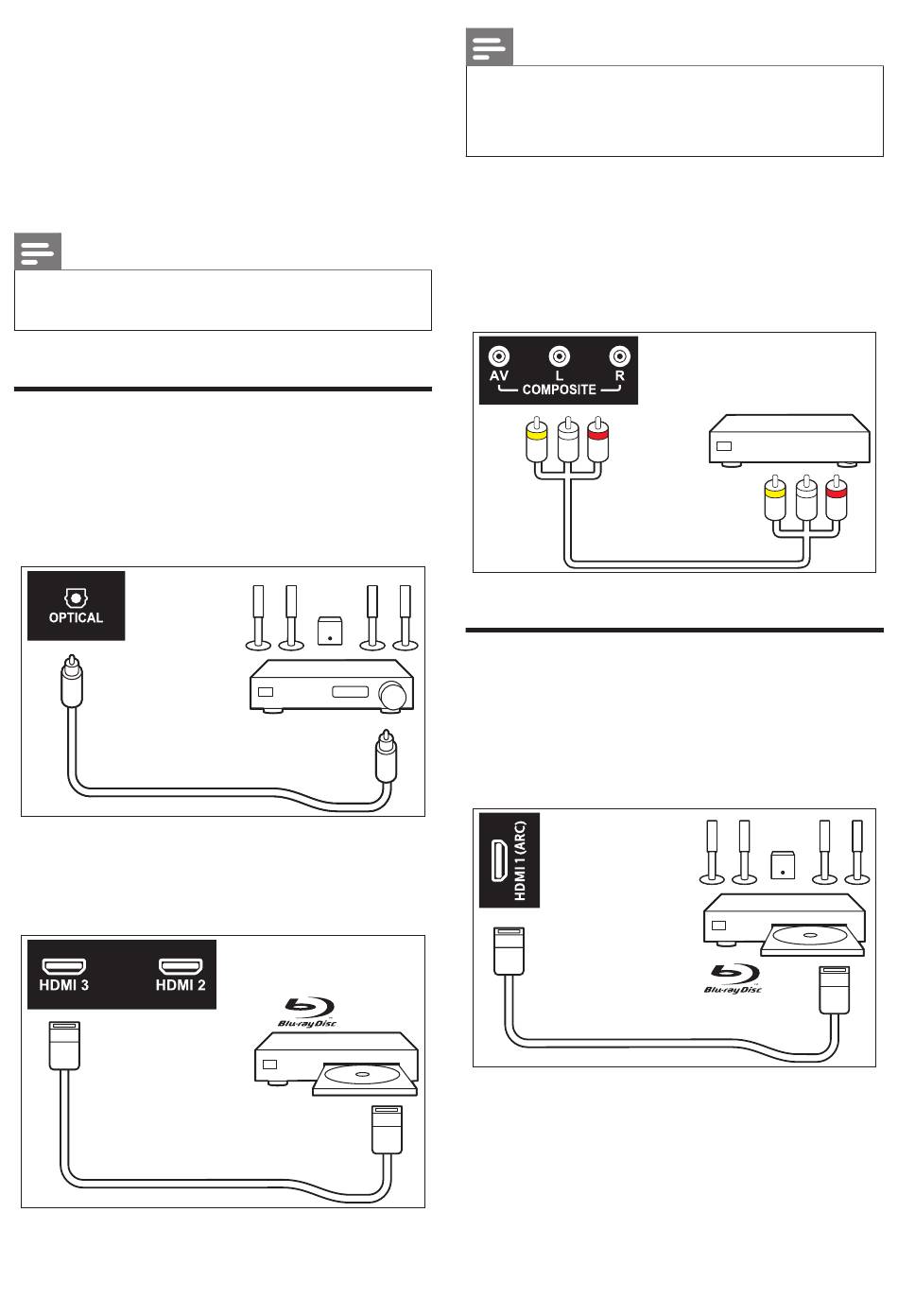

Bottom Connectors

a
Optical
Transmit sound to digital audio signal,
then connected audio device can play
digital audio sound.
b
HDMI 2 / HDMI 3
Digital audio and video input in Blu-ray
disc player and other HD digital devices.
18 EN-GB
Note
•
If there is no sound and picture displayed
when connected to the HDMI 3. Please
disconnect the device and re-connect it to
the HDMI 1 and HDMI 2.
c
AV input
•
Video: Composite video input from
analogue devices such as VCR.
•
Audio: Audio input from analogue
devices connected to the video.

Side Connectors

a
HDMI 1 (ARC)
Digital audio and video input from high
definition digital devices such as Blu-ray
players
