GA-H110MSTX-HD3
User's Manual
Rev. 1001
For more product details, please visit GIGABYTE's website.
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-H110MSTX-HD3 and is the answer not in the manual?

Questions and answers

Related Manuals for GIGA-BYTE TECHNOLOGY GA-H110MSTX-HD3

Summary of Contents for GIGA-BYTE TECHNOLOGY GA-H110MSTX-HD3

  • Page 1 GA-H110MSTX-HD3 User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 Oct. 4, 2016 Oct. 4, 2016 Copyright © 2016 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE.

  • Page 3: Table Of Contents

    Table of Contents GA-H110MSTX-HD3 Motherboard Layout ..............4 Chapter 1 Hardware Installation ..................5 Installation Precautions ..................5 1-2 Product Specifications ..................6 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors .................. 10 Internal Connectors ..................

  • Page 4: Ga-H110Mstx-Hd3 Motherboard Layout

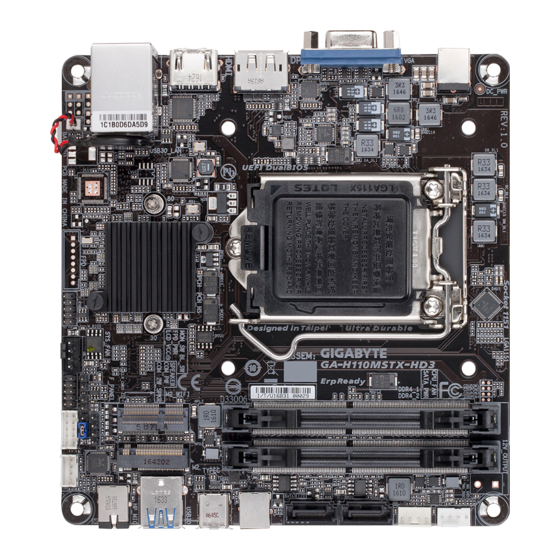

    GA-H110MSTX-HD3 Motherboard Layout GA-H110MSTX-HD3 DC_PWR CPU_FAN SATA PWR LGA1151 SATA3 DDR4_1 DDR4_2 HDMI TYPEC ® USB30 Super I/O (Note) Intel H110 ® Intel GbE LAN ® B_BIOS USB30_LAN (Note) SPEAKER HP_MIC CODEC M_BIOS CLR_CMOS COM_PW F_USB BAT_CON SYS_FAN F_PANEL 2W_SPKR...

  • Page 5: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 6: 1-2 Product Specifications

    1-2 Product Specifications Support for Intel Core i7 processors/Intel Core i5 processors/ ® ™ ® ™ Š Intel Core i3 processors/Intel Pentium processors/ ® ™ ® ® Intel Celeron processors in the LGA1151 package (up to 65W) ® ® * This motherboard supports 12V, 19V power adapters. When a 35W CPU is installed, it is recommended that a 95W power adapter be used.
  • Page 7 Internal 1 x CPU fan header Š 1 x system fan header Connectors Š 2 x SATA 6Gb/s connectors Š 1 x M.2 connector Š 1 x SATA power header Š 1 x front panel header Š 1 x battery power header Š...
  • Page 8 Unique Features Š Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Support for Q-Flash Š Bundled Norton Internet Security (OEM version) ®...

  • Page 9: Installing The Cpu

    Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU support list.) • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.

  • Page 10: Installing An Expansion Card

    The two memory sockets are divided into two channels and each channel has one memory socket as following: Channel A: DDR4_2 Channel B: DDR4_1 Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one memory module is installed.
  • Page 11 RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs. Connection/ Speed LED Activity LED Connection/Speed LED: Activity LED: State Description State Description Blinking Data transmission or receiving is occurring...

  • Page 12: Internal Connectors

    Internal Connectors 14 12 9 CPU_FAN F_USB SYS_FAN SATA3_0/1 COM_PW SATA_PW CLR_CMOS TYPEC BAT_CON USB30 F_PANEL HP_MIC 2W_SPKR SPEAKER Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 13 1/2) CPU_FAN/SYS_FAN (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
  • Page 14 B S_ 5) M2 (M.2 Socket 3 Connector) The M.2 connector supports an M.2 SATA SSD. Follow the steps below to correctly install an M.2 SSD in the M.2 connector. Step 1: Use a screw driver to unfasten the screw and nut from the motherboard. Locate the proper mounting hole for the M.2 SSD to be installed and then screw the nut first.
  • Page 15 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Hard Drive Reset Switch Activity LED Power Switch Power LED...
  • Page 16 9) 2W_SPKR (Speaker Header) This speaker header is connected to a L/R audio pins from the board to support the 2W (4ohm) stereo speaker on your AIO chassis. Pin No. Definition Speaker OUT R- Speaker OUT R+ Speaker OUT L- Speaker OUT L+ 10) SPEAKER (Buzzer Header) Connects to the speaker on the chassis front panel.
  • Page 17 12) COM (Serial Port Header) The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer. RS232 Devices: Pin No. Definition NDCD- NDSR- NSIN NRTS- NSOUT NCTS- NDTR-...
  • Page 18 15) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds. Open: Normal Short: Clear CMOS Values • Always turn off your computer and unplug the power cord from the power outlet before clearing the CMOS values.
  • Page 19 18) HP_MIC (Headphone and Microphone Combo Jack) This jack is for connecting a headphone or microphone. You can connect a microphone , headphone or speaker to this jack. F_USB3 (Front Panel) HP_MIC/MIC TYPEC 19) MIC (Microphone Jack) The Mic in jack. F_USB3 (Front Panel) HP_MIC/MIC TYPEC...

  • Page 20: Chapter 2 Bios Setup

    Chapter 2 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 21 M.I.T. This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature and Vcore. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and reduce the useful life of these components.
  • Page 22 & CPU Flex Ratio Override Enables or disables the CPU Flex Ratio. The maximum CPU clock ratio will be based on the CPU Flex Ratio Settings value if CPU Clock Ratio is set to Auto. (Default: Disabled) & CPU Flex Ratio Settings Allows you to set the CPU Flex Ratio.
  • Page 23 & CPU Thermal Monitor (Note 1) Enables or disables Intel Thermal Monitor function, a CPU overheating protection function. When enabled, ® the CPU core frequency and voltage will be reduced when the CPU is overheated. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
  • Page 24 & Channel Interleaving Enables or disables memory channel interleaving. Enabled allows the system to simultaneously access different channels of the memory to increase memory performance and stability. Auto lets the BIOS automatically configure this setting. (Default: Auto) & Rank Interleaving Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access different ranks of the memory to increase memory performance and stability.
  • Page 25 & CPU Fan Speed Control (CPU_FAN Connector) Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Allows the fan to run at different speeds according to the CPU temperature. You Normal can adjust the fan speed with System Information Viewer based on your system requirements.

  • Page 26: System Information

    System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...

  • Page 27: Bios Features

    BIOS Features & Boot Option Priorities Specifies the overall boot order from the available devices. Removable storage devices that support GPT format will be prefixed with "UEFI:" string on the boot device list. To boot from an operating system that supports GPT partitioning, select the device prefixed with "UEFI:" string. Or if you want to install an operating system that supports GPT partitioning such as Windows 7 64-bit, select the optical drive that contains the Windows 7 64-bit installation disk and is prefixed with "UEFI:" string. & Hard Drive/CD/DVD ROM Drive/Floppy Drive/Network Device BBS Priorities Specifies the boot order for a specific device type, such as hard drives, optical drives, floppy disk drives, and devices that support Boot from LAN function, etc. Press <Enter> on this item to enter the submenu that presents the devices of the same type that are connected.
  • Page 28 & SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast.
  • Page 29 & Other PCI Device ROM Priority Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Disables option ROM. Disabled Legacy Only Enables legacy option ROM only. UEFI Only Enables UEFI option ROM only.

  • Page 30: Peripherals

    Peripherals & Intel Platform Trust Technology (PTT) Enables or disables Intel PTT Technology. (Default: Disabled) ® & Legacy USB Support Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled) & XHCI Hand-off Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off support.
  • Page 31 ` SATA Configuration & SATA Controller(s) Enables or disables the integrated SATA controllers. (Default: Enabled) & SATA Mode Selection Allows you to decide whether to configure the SATA controller integrated in the Chipset to AHCI mode. IDE Configures the SATA controller to IDE mode. (Default) AHCI C onfigures the SATA controllers to AHCI mode. Advanced Host Controller Interface (AHCI) is an interface specification that allows the storage driver to enable advanced Serial ATA features such as Native Command Queuing and hot plug. & Aggressive LPM Support Enables or disables the power saving feature, ALPM (Aggressive Link Power Management), for the Chipset SATA controllers.

  • Page 32: Chipset

    Chipset & VT-d (Note) Enables or disables Intel Virtualization Technology for Directed I/O. (Default: Disabled) ® & Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) & DVMT Pre-Allocated Allows you to set the onboard graphics memory size. Options are: 32M~512M. (Default: 64M) &...

  • Page 33: Power Management

    Power Management & Platform Power Management Enables or disables the Active State Power Management function (ASPM). (Default: Disabled) & PEG ASPM Allows you to configure the ASPM mode for the device connected to the CPU PEG bus. This item is configurable only when Platform Power Management is set to Enabled. (Default: Enabled) &...
  • Page 34 & Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Press the power button and then the system will be turned off instantly. (Default) Instant-Off Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power button is pressed for less than 4 seconds, the system will enter suspend mode.

  • Page 35: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...

  • Page 36: Chapter 3 Appendix

    Chapter 3 Appendix Drivers Installation • Before installing the drivers, first install the operating system. (The following instructions use Windows 8.1 as the example operating system.) • After installing the operating system, insert the motherboard driver disk into your optical drive. Click on the message "Tap to choose what happens with this disc"...
  • Page 37 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 38 - 38 -...

  • Page 39: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: http://esupport.gigabyte.com...
