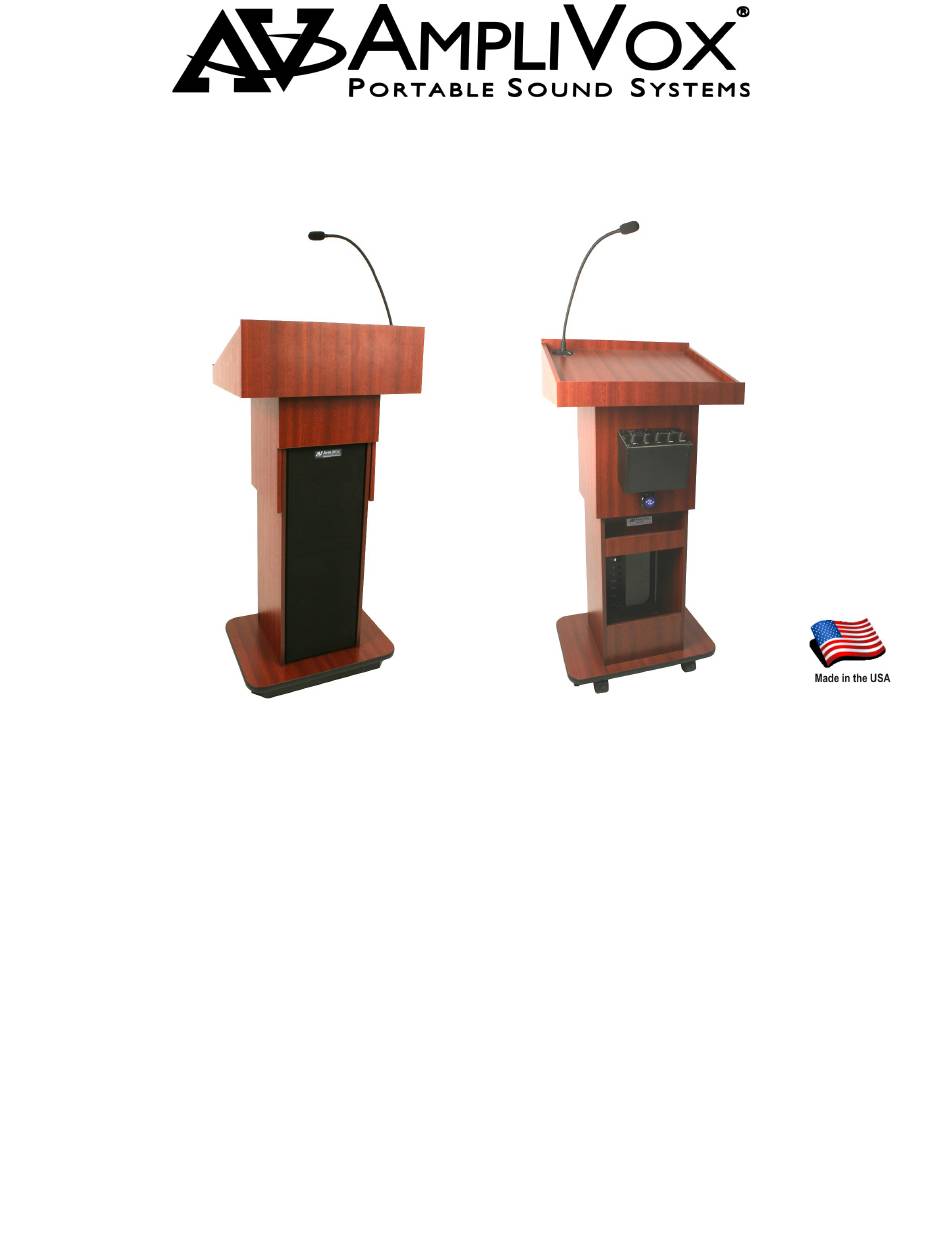

EXECUTIVE ADJUSTABLE COLUMN SOUND LECTERN S505A / SW505A
Thank you for choosing the S505A and
SW505A Executive Adjustable Lectern
from AmpliVox Portable Sound Systems.
Our system combines flexibility with func-
tionality. Please refer to this user guide as
you enjoy the unique capabilities of anoth-
er quality product from AmpliVox Portable
.
Sound Systems
We encourage you to visit our website
www.ampli.com to register your prod-
uct for its warranty coverage, sign up to
receive our newsletter, download our
catalog, and learn more about the com-
plete line of AmpliVox audio visual
products, including portable PA sys-
tems, and lecterns.
As always, you can reach us at 800-267-5486
or at 847-489-9000
Monday - Friday 8am - 6pm CST.
User Guide
WHAT
S505A
•
150 W. Multimedia Stereo Amplifier
•
Bluetooth Module and Control Panel
•
21" Electret condenser gooseneck
mic with Shock Mount Holder
•
2 - Built in Speakers
•
4 - Knurl Knobs/screws for Reading
Table 1" knob - 1" long
•
4 - Knurl Knobs for Base - 2" long
•
Speaker Grille Cover
•
10 foot AC Power Cord
Assembly Of Lectern ............................................................. 2
Control Panel ....................................................................... 3
Wireless Mic Setup ................................................................. 3
BLUETOOTH MODULE ..................................................................4
Problem Solving ....................................................................... 4
'
S IN THE BOX
SW505A
•
150 W. Multimedia Stereo Amplifier
•
Bluetooth Module and Control Panel
•
21" Electret condenser gooseneck
mic with Shock Mount Holder
•
16 CH UHF Wireless Microphone
and Receiver
•
2 - Built in Speakers
•
4 - Knurl Knobs/screws for Reading
Table 1" knob - 1" long
•
4 - Knurl Knobs for Base - 2" long
•
Speaker Grille Cover
•
10 foot AC Power Cord
USER GUIDE
1
