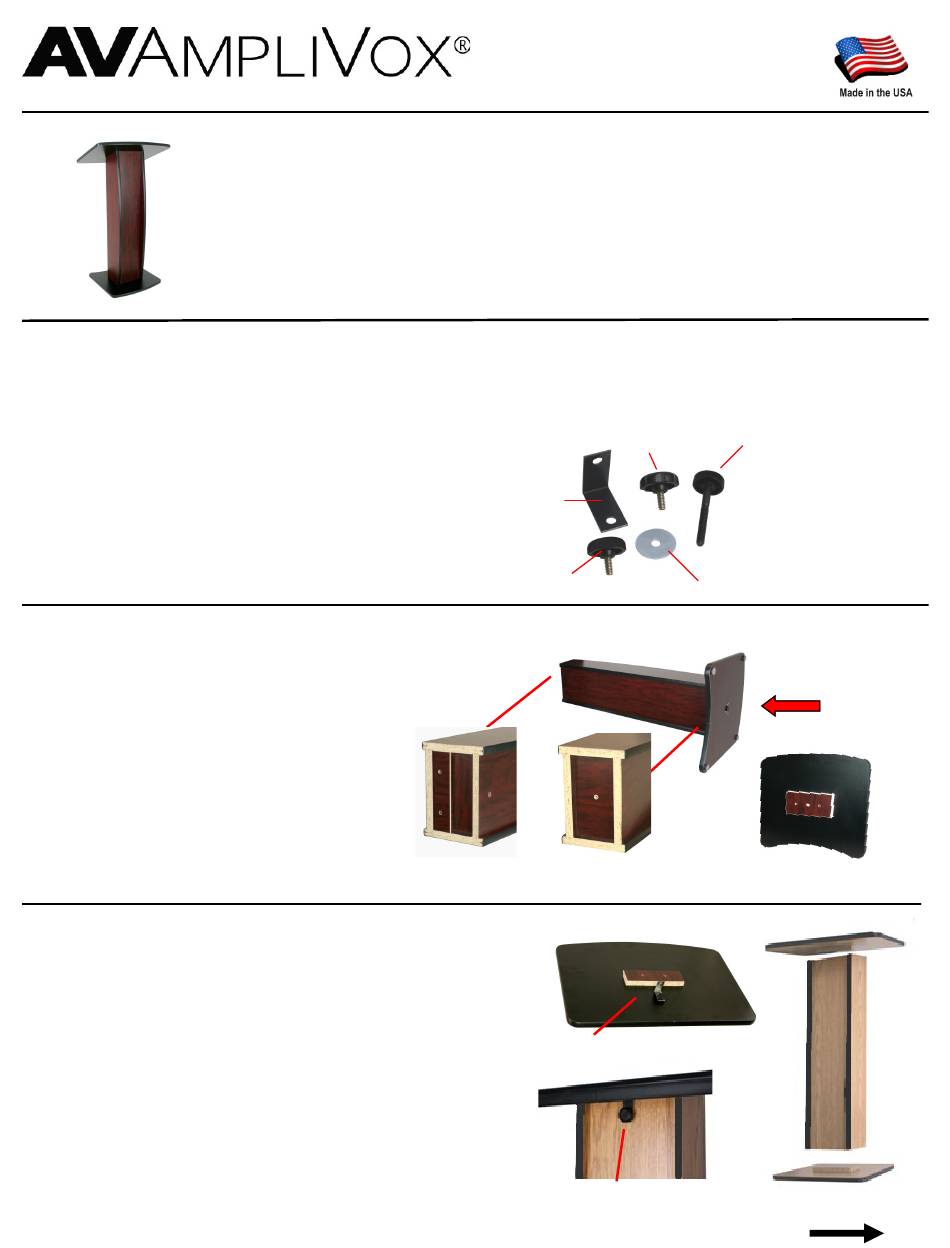

AmpliVox W360 Assembly Instructions

GETTING STARTED:

Unpack all pieces. Save the packing and the box in case you need to return the lectern
for any reason. Make sure you have all the pieces and check for any damage.

Parts List

•
Reading Surface
•
Column
•
Base
TOOLS NEEDED: None

ASSEMBLY:

ATTACH COLUMN TO BASE:

Place the column on the floor laying on its
side (Fig.1). Bottom of column is flat, top is
angled. Backside is the low point of the top
angled surface. Take the base with the large
block facing the underside of column and
insert the block into column. Secure with
long thumb screw (Item 3) and
large washer (Item 4). Screw until tight.
STAND COLUMN UPRIGHT ON BASE

ATTACH READING SURFACE:

" "
Attach the L bracket (Item 1) to the bottom side of
the reading surface as shown (Fig.2) using the short
thumb screw (Item 2). Position bracket so that the long
leg is facing wood block. Both legs of bracket are same
length.
Position the reading surface with the book stop at the
low point of column angle. Lower onto column. Push
the reading surface forward until it stops.
should be in alignment with threaded inset in column.
Take short thumb screw (Item 2) and going through
" "
hole in L bracket, screw into insert until tight, secur-
ing reading surface to column.
Thank you for choosing the W360 Lectern from AmpliVox Portable Sound Systems.
We are excited in introducing this truly unique lectern. Our lectern combines flexibility with func-
tionality. Please refer to this user guide as you enjoy the unique capabilities of another quality
product from AmpliVox Portable Sound Systems.
We encourage you to visit our website www.ampli.com to register your product for its warranty
coverage, sign up to receive our newsletter, download our catalog, and learn more about the
complete line of AmpliVox audio visual products, including portable PA systems, and other lec-
terns.
• " "
L Bracket - Item 1
•
Short Thumb Screw - Item 2
•
Long Thumb Screw - Item 3
•
Large Washer - Item 4
"
L
Assembly Instructions
Ready to Assemble Lectern
1
2
Wood color in pictures may not match your lectern
Fig. 1
Top of column Bottom of column
Fig. 2
1 & 2
"
bracket
W360
3
2
HARDWARE
4
Base
2
CONTINUE
3 & 4
Front
