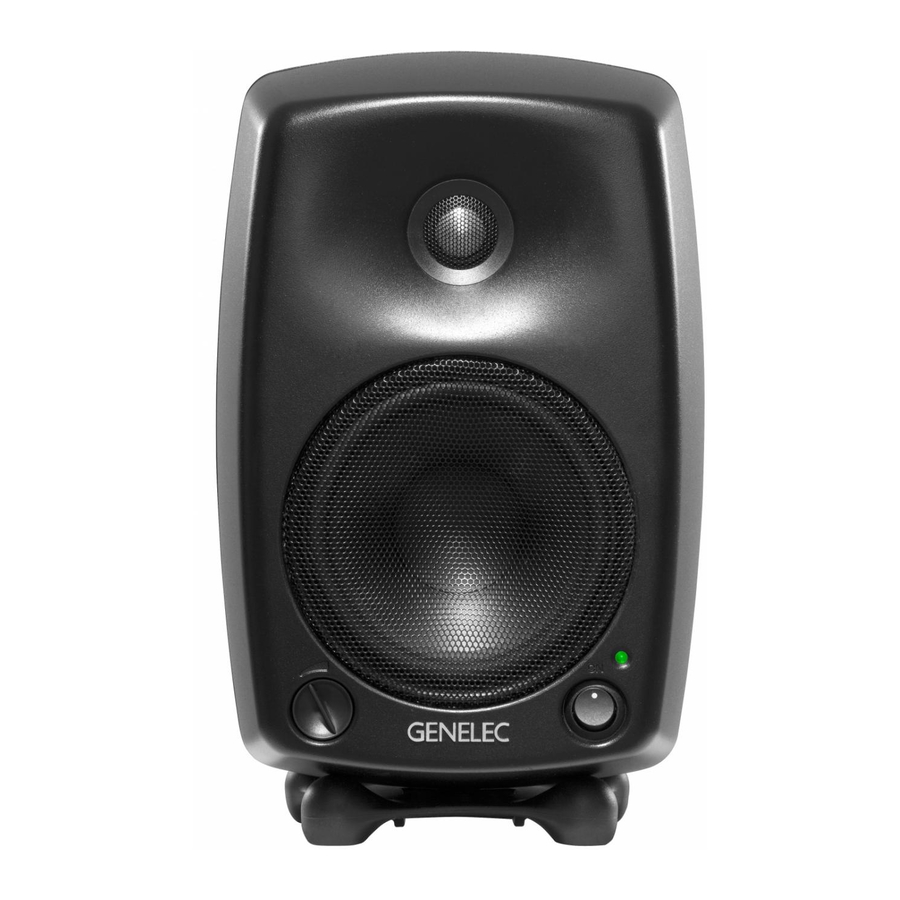

Genelec 8030A Quick Setup Manual
Genelec 8030a: quick start
Hide thumbs
Also See for 8030A:
- Operating manual (32 pages) ,
- Datasheet (4 pages) ,
- Instruction manual (2 pages)
Advertisement
Quick Links
Speaker placement
Nearfield setting
-2 dB Bass Tilt:
Speaker orientation
Vertical placement is preferable
Connecting the 8030A
XLR male to "INPUT"
connector
Genelec Document Genelec Document BBAQS8030001. Copyright Genelec Oy 4.2004. All data subject to change.
TONE CONTROL
ON
OFF
1
2
3
4
XLR male to "INPUT"
connector

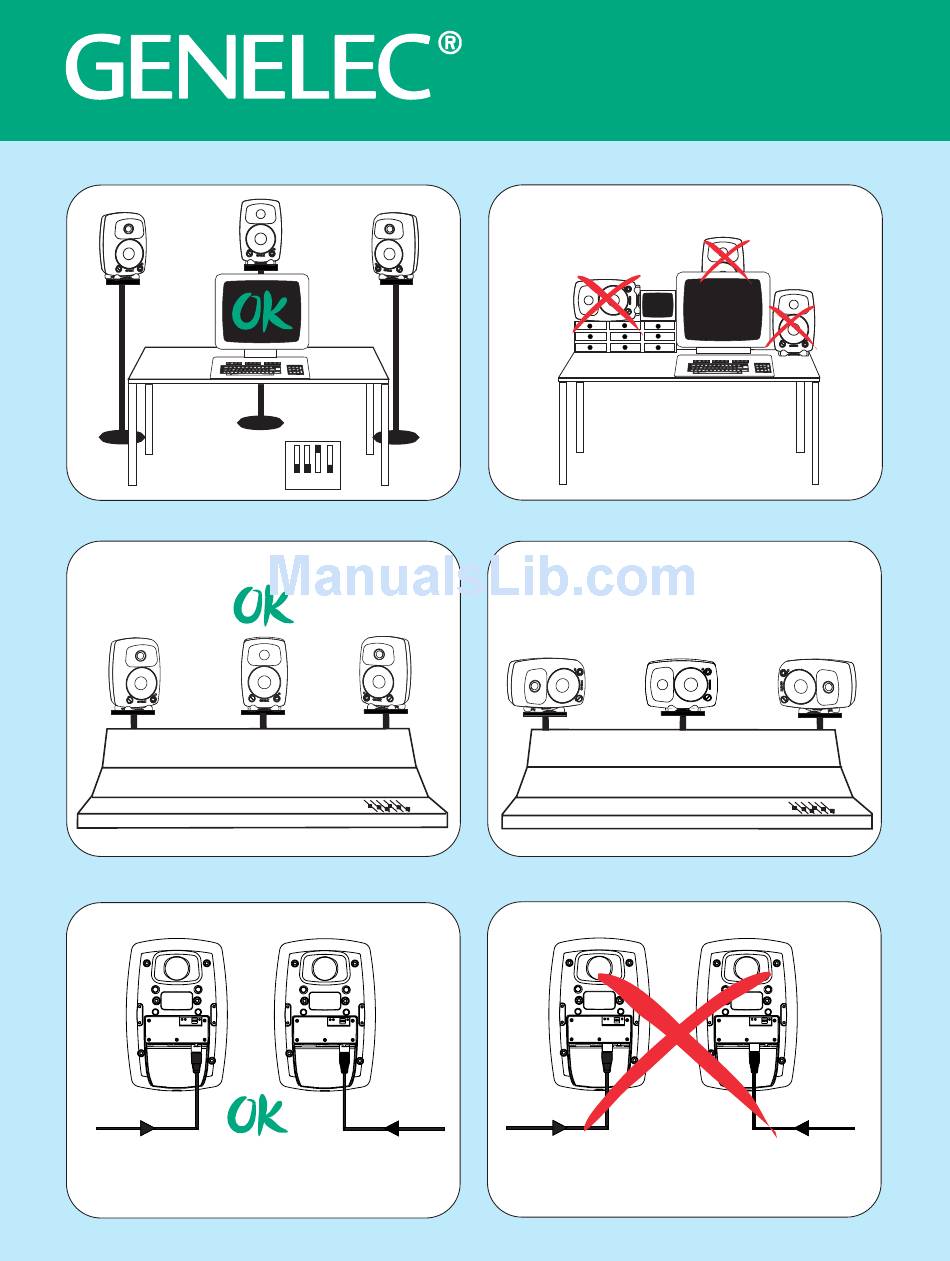

Quick setup guide
Do not place the monitors near reflective
surfaces or behind objects!
Horizontal placement might disturb midrange
imaging and accentuate early reflections from the
mixing desk causing high frequency colouration!
XLR female to "OUTPUT"
connector
8030A
XLR female to "OUTPUT"
connector
