Quick Install Guide
Multi Stream Transport Hub – DisplayPort™ to quad head DisplayPort MST hub
MSTDP124DP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
System Requirements
• DisplayPort 1.2 enabled computer system
• Up to 4 DisplayPort monitors with cabling
Note: Different types of displays such as HDMI, DVI and VGA are
supported provided DisplayPort adapters are used. DisplayPort
adapters are not included.
Note: Certain graphics adapters have limited MST support and will
only output to three displays in total. If more than three monitors
are attached the fourth will be disabled.
Packaging Contents
• 1x 4-Port Multi Monitor DisplayPort MST Hub
• 1x Universal power adapter (NA/EU/UK/AUS)
• 1x Quick install guide
Installation
1. Ensure your computer system and monitors are powered off.
2. Connect the integrated DisplayPort input cable to the DisplayPort
connector on your computer system.
3. Connect up to four DisplayPort monitors to the DisplayPort
output ports on the MST Hub, using your video cabling.
4. Connect the included power adapter from an available outlet to
the power adapter port on the MST hub.
5. Power on your DisplayPort monitors followed by your computer
system.
6. The system will now detect the MST Hub, and add the attached
displays to the Display Settings of the System just as if the
monitors were connected directly to your native video card.
For the most up-to-date information, please visit: www.startech.com

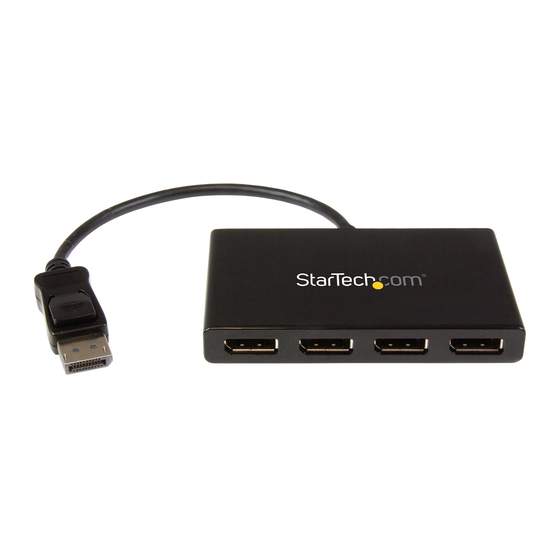

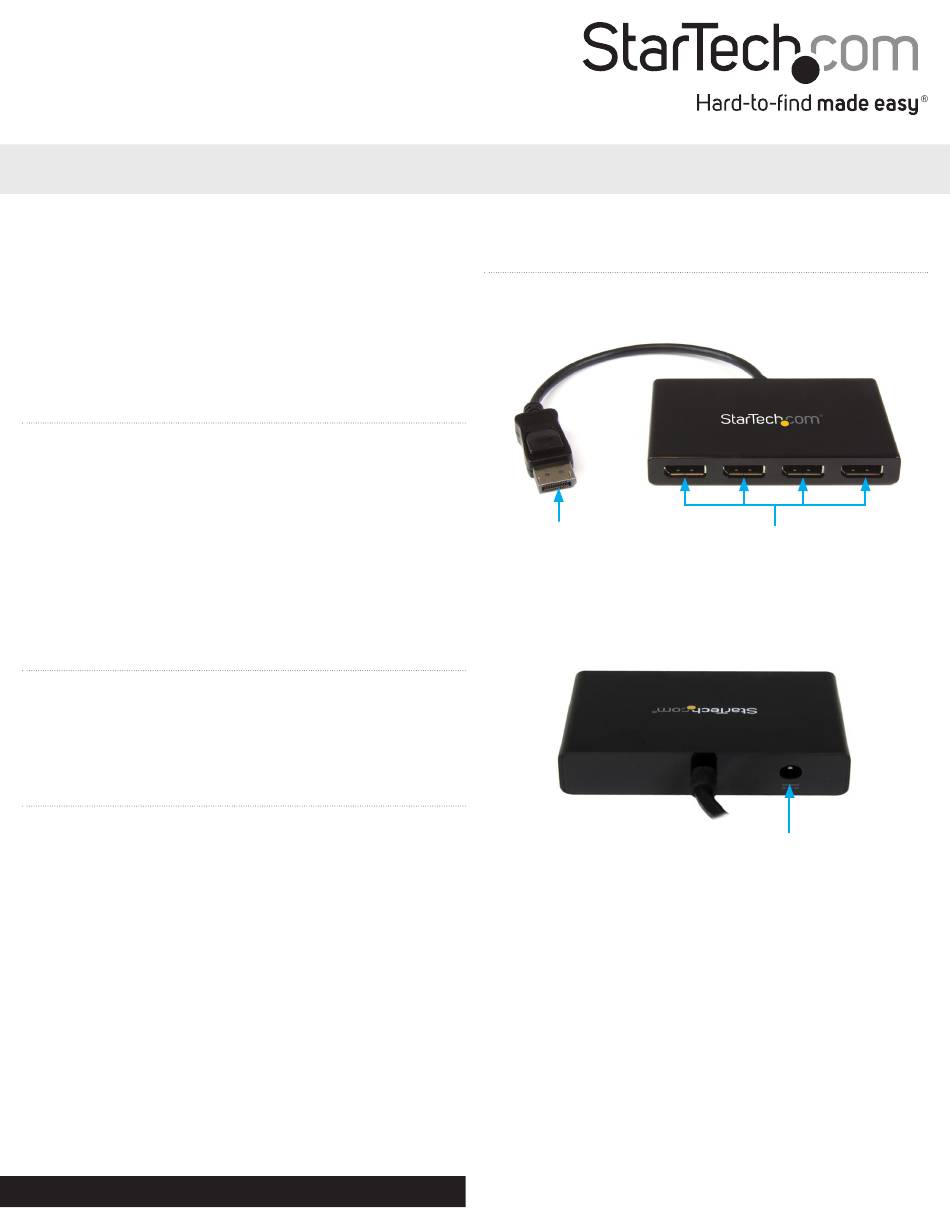

Product Overview
Front View
Integrated DisplayPort
input cable
Rear View
*actual product may vary from photos
DisplayPort output
ports
Power adapter port
Manual Revision: 01/29/2015
