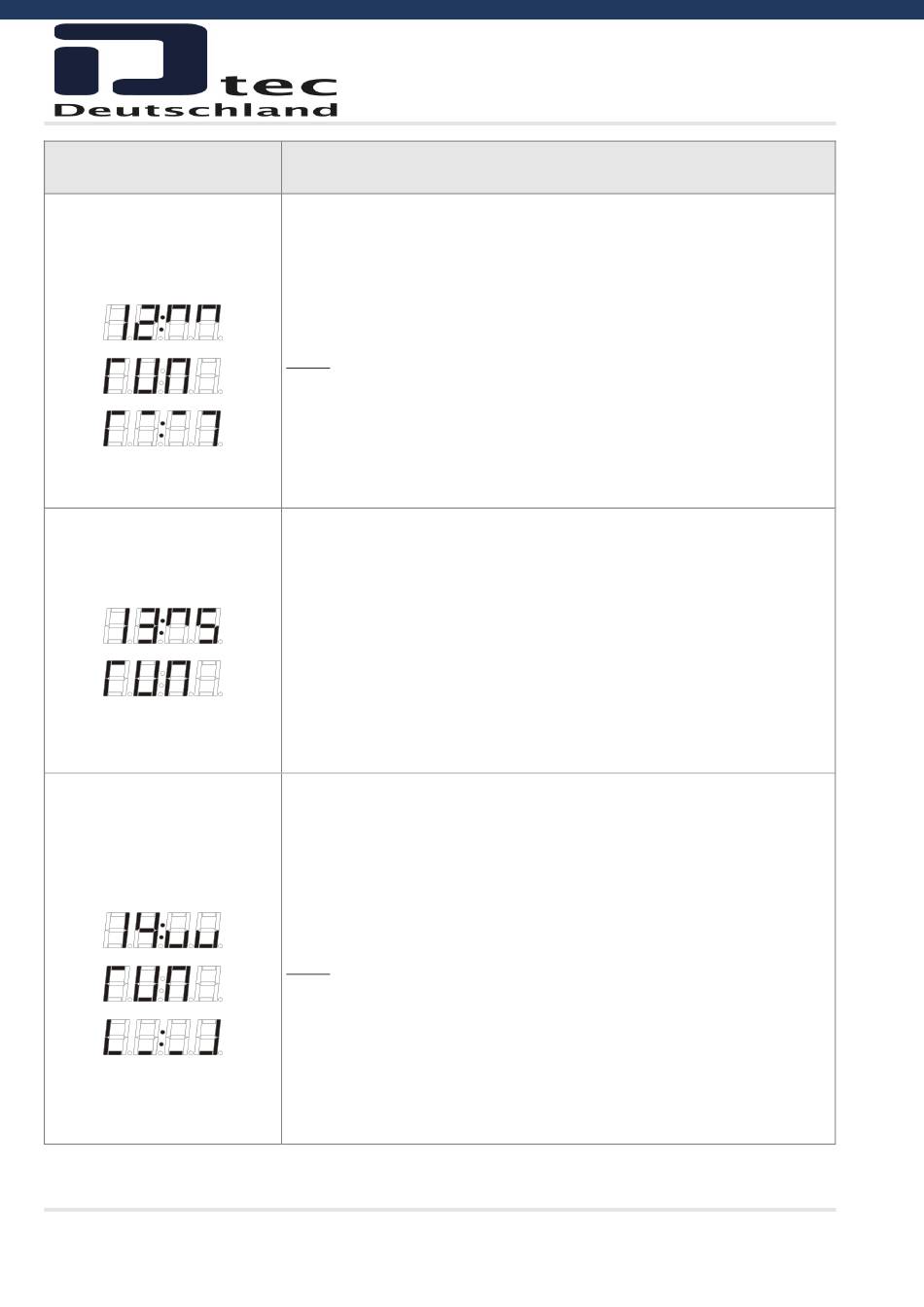

Parameter
Learning - Electronic
limit OPEN
Fine tuning of electronic
limit OPEN
Learning - Electronic limit
CLOSE
8
Press STOP 2 times - Display shows ‚run'.
Run the door to open position. (By pressing OPEN or DOWN).
Press the STOP push-button to confirm open limit.
(The display will show open limit symbol about 2 sec. and the display will auto-
matic switch back to active parameter number).
Notice:
½ OPEN limit cannot be active during programming (parameter 16).
Photo in the door frame (parameter 31) cannot be active during learning of
limits.
When relearning limits parameter 41(force control) and 51(run time) will be
reset to factory setting.
Press STOP push-button until the display parameter value is active.
Fine tune OPEN limit 6-9 more open, 1-4 less open. Press OPEN or CLOSE
push-button to change value.
If the value is changed:
Press STOP push-button (Display shows "RUN")
Test the fine tuning by running the door up and down.
Press the STOP push-button to save and return to parameter value.
(adjustment range is maximum +/- 0.8% of the door run range)
Pressing STOP without a value change = return to parameter number.
Press STOP 2 times - Display shows ‚run'.
Run the door to close position (by pressing OPEN or DOWN). Normally 3-5 cm
from the floor.
Press the STOP push-button to confirm close limit.
(The display will show close limit symbol about 2 sec. and the display will auto-
matic switch back to active parameter number)
Notice:
½ OPEN limit cannot be active during programming (parameter 16).
Photo in the door frame (parameter 31) cannot be active during learning of
limits.
When relearning limits parameter 41 (force control) and 51 (run time) will be
reset to factory setting.
The safety edge is not active during programming.
DoorTec Deutschland | www.doortec.online
Änderungen vorbehalten | Subject to Modifications
Value
04/2022 - Version 1
