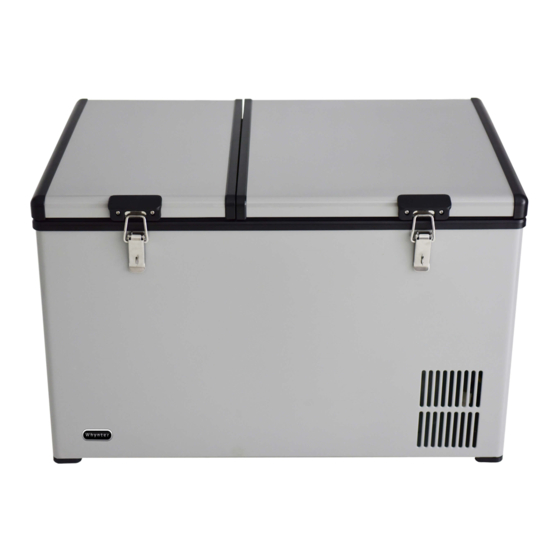

WHYNTER 90 QUART DUAL ZONE PORTABLE FRIDGE/ FREEZER
WITH 12V OPTION AND WHEELS
Model # : FM 901DZ
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whynter FM-901DZ
Summary of Contents for Whynter FM-901DZ
- Page 1 WITH 12V OPTION AND WHEELS Model # : FM 901DZ INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Table of Contents PAGE Safety Precautions 3 - 4 Parts and Accessories Product Features / Technical Data Installation Operation and Controls Cleaning and Maintenance 1 - 1 Troubleshooting 13 - 14 Warranty Information... -
Page 3: Safety Precautions
Safety Precautions TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN WARNING USING YOUR PORTABLE FREEZER, FOLLOW THESE BASIC PRECAUTIONS: Read all instructions before using the appliance. Never clean appliance parts with flammable fluids. The fumes can create a fire hazard. Do not use an exces- sively wet cloth, industrial solvents, and oil-based products to clean this appliance. - Page 4 Safety Precautions TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN WARNING USING YOUR PORTABLE FREEZER, FOLLOW THESE BASIC PRECAUTIONS: When positioning the portable freezer, ensure that there is at least a 6” clearance at the sides of the portable freezer.
-
Page 5: Parts And Accessories
Parts and Accessories Your Whynter portable freezer is supplied with all the accessories you need to enjoy refrigeration almost anywhere. Below is an image of the freezer features and standard accessories. Additional protection and insulation can be provided for your Whynter portable freezer with a Whynter insulated flexible transit bag. -
Page 6: Product Features / Technical Data
Whether on a day trip or major expedition, you can easily keep your food and beverages chilled, or frozen with this benchtop freezer. The Whynter portable freezers should not to be confused with less effective 12 volt nov- elty and beverage type "coolers", the Whynter portable freezer fridge is a true freezer/refrigerator which cools between –8°F to 50°F. -
Page 7: Installation
Installation BEFORE USING YOUR APPLIANCE Remove the exterior and interior packing. IMPORTANT: Do not remove any permanent instruction labels or the data label on your freezer To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fin- gers. - Page 8 WHEEL INSTALLATION This portable freezer comes with optional wheel castors for mobility. Carefully place the freezer on its side on a flat surface. Unscrew the 4-ø5x screws from both bottom left side legs of the freezer and remove. The bottom right side legs of the freezer are not required to be removed.
-
Page 9: Operation And Controls
Operation and Controls CONTROL PANEL GUIDE To obtain the best possible results for your freezer, it is important that you operate it properly. Your portable freezer uses a digital control system for adjusting the thermostat. - Page 10 Operation and Controls LED LIGHT This freezer comes equipped with energy saving LED lights, which help in lighting up the interior effectively. This LED lights come on automatically when the freezer door is opened. The LED lights will shut off once the freezer door is completely closed.
-
Page 11: Cleaning And Maintenance
Cleaning and Maintenance DEFROSTING AND DRAINING WARNING: Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected. Do not touch the power plug when your hands are wet. Never unplug the unit by pulling on the plug. - Page 12 Cleaning and Maintenance IN CASE OF EXTENDED POWER FAILURE Keep freezer door/lid closed. Your freezer will keep food frozen for 24 hours provided warm air is not admit- ted. If freezer is out of operation for 24 hours or more, add dry ice. Leave ice in large pieces. Add more ice as required NOTE: Handling of dry ice can cause freezing of the hands —gloves or other protection is recommended.
-
Page 13: Troubleshooting
The system is blocked Contact Whynter Service Department via email at service@whynter.com The freezer does Freezer door being opened fre- Refrain from opening the freezer door... - Page 14 Troubleshooting Many common portable freezer problems are easily resolved. Try the troubleshooting suggestions below to see if the problems can be resolved before having to contact the service department. Problem Possible Causes Solutions Freezer external surface is This is normal while the compressor The external freezer walls can be works to transfer heat from inside the as much as 30°F warmer than...
-
Page 15: Warranty Information
ONE YEAR LIMITED WARRANTY This Whynter Portable Freezer is warranted, to the original owner within the 48 continental states, for one year from the date of purchase against defects in material and workmanship under normal use and service. When making a warranty claim, please have the original bill or invoice of purchase with purchase date available. Should your Whynter Portable Freezer prove defective within one year from the date of purchase, return the defective part or unit, freight prepaid (within two months of purchase;...
