Whynter BWR-1662SD - Wine Refrigerator Manual

Parts

1. Control Panel
2. Internal Fan
3. Door Handle
4. Charcoal Filter
5. Door Frame
6. Front Vent
7. Leveling Legs (4)
8. Door Hinge Cover

9. Internal Light
10. 1. Wooden Display Shelf (1)
    2. Wooden Shelves (15)

11. Cylinder Lock and Latch
12. Bottom Door Hinge
13. Drip Tray
14. Power Cord
15. Door Keys

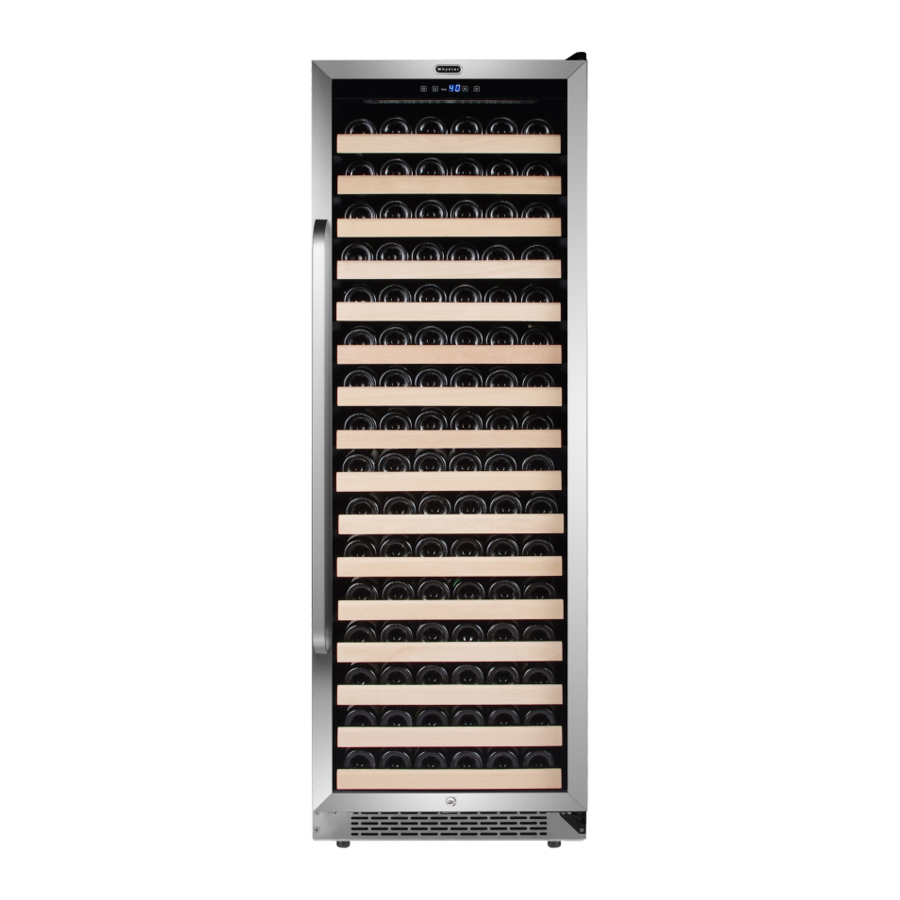

Product Features

The Whynter Stainless Steel Compressor Wine Refrigerator offers premium quality and innovative design ideal for your wine collecting needs. Whether for the enthusiast or the connoisseur, the single zone compressor wine refrigerator provides premium and advanced wine storage functionality.
This wine storage system can hold up to 166 standard 750ml wine bottles. The powerful compressor cooling process offers optimum temperatures (low 40ºF to mid 60ºF) for red, white, and sparkling wines. The front ventilation design of this unit allows for flush with cabinet installation or simply freestanding usage.
The premium appeal of the Whynter BWR-1662SD features a substantial stainless steel trimmed door accented with a luxurious curved handlebar. The 16 removable wooden flat slide out shelves offer high-end functionality and safety for your prized wine collection, plus a wire display shelf that lets you proudly display or safely store opened bottles.

TECHNICAL DATA

INSTALLATION INSTRUCTIONS
BEFORE USING YOUR APPLIANCE

• Remove the exterior and interior packing.
• Before connecting the appliance to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• Install the handle on the door.

INSTALLATION OF YOUR APPLIANCE

• The appliance is designed for built-in, recessed or freestanding installation.
•
  Do not store or install the appliance outdoors.
•
  This appliance is designed for storing and cooling wines. Do not store perishable food, medicine or other medical products.
• Place your appliance on a hard and level floor that is strong enough to support it when it is fully loaded.
• We do not recommend installing the appliance on carpet.
• To level your appliance, adjust the leveling legs at the bottom of the appliance if needed.
• For freestanding installation, 5 inches (127mm) of space between the back and sides of the appliance are suggested, which allows the proper air circulation to cool the compressor and condenser. Even for built-in installation, it is a must to keep a ¼" (6.35mm) space on each side and at the top. And the air vent at the front of the appliance must never be covered or blocked in any way.
• NOTE: Do NOT install the appliance near an oven or other heating source. Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. For best performance, do not install the appliance behind a cabinet door or block the base grille.
• Avoid locating the appliance in area that may be exposed to excessive moisture.
• Plug in the appliance into an exclusive, grounded wall power outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a qualified electrician or an authorized service center.

BUILT-IN CABINET INSTRUCTIONS
These appliances are designed for both built-in or free standing installation. For built-in installation, ensure proper service access and ventilation, allow at least ¼" (6.35mm) space on each side and at the top.

ELECTRICAL CONNECTION

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician or contact Whynter Service Department
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD
Because of potential safety hazards, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord, it is absolutely necessary that it be a UL/CULListed, 3-wire grounding type appliance extension cord having a

INSTALLING THE STAINLESS STEEL HANDLE
This stainless steel handle that is not required for operation. To install the handle please follow the below instructions:

1. Remove door gasket. The gasket can be easily displaced by hand, no tools are necessary.
2. Use a flat-head screwdriver to remove the two pre-installed decorative screw covers from the back of the door. Some models have no decorative covers.
3. Install the handle tightly as shown with the two screws, lock washers and flat washers provided. (DO NOT over tighten as this will cause damage to the handle and stainless steel door frame).
4. Replace the door gasket.

REVERSING THE DOOR SWING OF YOUR WINE REFRIGERATOR
This appliance has the capability of the door opening from either the left or right side. The appliance is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow the following reversal instructions.

1. Remove the front ventilation grille (2) and the adjustable ventilation grille (1) by unscrewing the screws (3) & (4). (Figure 1)

2. Remove the bottom hinge plate (5) by unscrewing the four lock screws (6). Be careful to hold the glass door firmly after removing the screws. (Figure 2)

3. Gently pull down to remove the glass door from the right top hinge and place it on a padded surface to avoid the risk of damage, then remove the right top hinge (7). (Figures 3 & 4)

4. Unscrew and transfer the hinge pin of the bottom hinge plate (5) to the opposite side.
5. Pop out the cover caps on the upper left side corner of the inside cabinet and use them to cover the screw holes on the right hand side.
6. Screw the alternative left top hinge (9), included in the fittings, on the left hand side of cabinet. (Figure 4)
7. Rotate the door 180° and then relocate the door to the designated position. Then screw the bottom hinge assembly on the left designated position and tighten it after the door is leveled. (Figure 2)
8. Reassemble the ventilation grilles.

It is recommended you install the appliance in a place where the ambient temperature is between 72º- 78ºF / 23º-26ºC. If the ambient temperature is above or below recommended temperatures, the performance of the wine refrigerator may be affected. For example, placing your appliance in extreme cold or hot conditions may cause interior temperatures to fluctuate.
NOTE:
When using the wine refrigerator for the first time or restarting after being shut off for a long period of time, there may be a few degrees variance between the set temperature and the LED readout. This is normal due the length of activation time. The unit should return to normal after running for a few hours. The internal temperature of this unit will not rise if the ambient temperature where the unit is located is lower than the set temperature.

RECOMMENDED TEMPERATURE SETTINGS

CONTROL PANEL GUIDE

• POWER
  To turn the appliance on/off, press and hold the POWER button key for 5 seconds.
• UP
  To increase (warm) the set temperature by 1°C or 1ºF.
• DOWN
  To decrease (cool) the set temperature by 1°C or 1ºF.
• LIGHT
  Used to turn the internal light on and off.

ºF/ºC SELECTOR
Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the LIGHT key for 5 seconds.
NOTE: If the appliance is unplugged, encounter power interruption, or turned off, you must wait 3 -5 minutes before restarting the appliance. If attempted to restart before this time delay, the appliance may not start.

SETTING THE TEMPERATURE CONTROL

• During normal operation, the temperature display on the control panel shows the temperature inside the appliance.
• The appliance is a single zone wine refrigerator with a temperature range between 40ºF and 65ºF (5ºC and 18ºC)
• When the unit is plugged in for the first time, the unit will power up automatically to the preset defaults. The preset temperature is 50ºF.
• You can press the UP and DOWN keys to control the internal temperature.
• The temperature that you desire to set will increase 1ºC or 1ºF if you press the UP key once and will decrease 1ºC or 1ºF if you press the DOWN key once. The display flashes while you make the setting.
• After the temperature has been set, the display will flash four times before it shows the current internal temperature of the particular temperature zone.
• To view the set temperature at any time, press the UP or DOWN key, the set temperature will temporarily flash in the display for 5 seconds. Then the display shows the current internal temperature

INTERIOR LIGHT
The interior light makes it easy to view your wine labels. The light can be turned on or off using the light button on the display.

CABINET SHELVES
NOTE: Do not cover any part of the shelves with aluminum foil or any other material that will prevent adequate air circulation within the cabinet.
This appliance is equipped with removable shelves. To prevent damage to the door gasket, make sure the door is opened completely before pulling the shelves out.

• For easy access of the wine bottles, you must pull the shelves approximately ⅓ out of the railing.
• The shelves are designed with an emergency stop to prevent them being removed too far when loaded.
• When removing the shelves out of the railing, make sure to remove all items first.
• To remove the shelves, pull the shelf forward until the notch aligns with the plastic post. Lift the shelf and continue to pull the shelf forward until it is completely removed from the internal compartment.

ACTIVE CHARCOAL FILTER
The Whynter BWR-1662SD is equipped with one activated charcoal filter, which ensures optimum air quality within the wine cabinet. This filter counters and prevents any contaminants and odors from the ambient air affecting the taste of the wines stored.
Replace the active charcoal filter once a year. If you are interested in purchasing an additional charcoal filter, please contact support@whynter.com for retail sales information.
To change the filter,

• Turn the filter cover 90° clockwise or counterclockwise and then remove the filter.
• Insert the new filter in the vertical position.
• Turn the filter cover 90° clockwise or counterclockwise until it click into position.

NORMAL SOUNDS
The unit is cooled by a compressor. The compressor pumps coolant through the cooling system, producing operating noise. Even when the compressor cuts out, noises caused by changes in temperature and pressure are unavoidable. Operating noise will be most audible immediately after the compressor comes on. It becomes quieter as the operating period continues.
The following noises are normal and occur from time to time:

• Gurgling sound, caused by the refrigerant flowing through the appliance's coils,
• Humming noise made by the compressor. This noise can get louder for brief periods when the motor is switching on.
• Cracking/popping sounds, resulting from the materials contraction and expansion due to temperature variations,
• Fan operating sound, to circulate the air within the wine cabinet.
• Unusual noise is normally the result of improper installation.
• Where the unit is installed in open-plan kitchen or in partition walls, the level of operating noise will be heard more acutely. However, this is due to the surrounding architecture and not to the unit.

NOTE: An individual's perception of noise is directly linked to the environment in which the unit is located, as well the specific type of models. Our appliances are in line with international standards for such appliance and in line with the latest technical developments. Please remember that the noise of the compressor and the coolant circulating in the system is unavoidable.

DEFROSTING AND VENTILATION
Your wine refrigerator is designed with an automatic defrost system. During off-cycle, the evaporator behind the rear wall of the unit defrosts automatically. Condensation is collected in the drain at the back of the unit and flows through the drainage hole into the drip tray above the compressor. The heat is transferred from compressor and evaporates any condensation that has collected in the drip tray. Part of the remaining water within the wine refrigerator is collected for humidity purposes.
NOTE: Frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or high humidity location. If this frost pattern does not clear within 24 hours, your unit will require manual defrosting.

Storage

DOOR LOCK
The appliance is provided with a lock and key combination. The keys are located inside the plastic bag that holds the User Manual. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making sure metal pin is engaged completely. Remove the key and place it in a secure place.

STORAGE
Wine bottles may differ in size and dimensions so the actual number of bottles can be stored may vary. The 166 bottle capacity is approximate maximum when storing traditional Bordeaux 750 ML bottles and includes bulk storage.
You may load your wine bottles in single row or by stacking while taking note of the following: if you do not have enough bottles to fill your wine refrigerator, it is better to distribute the load throughout the wine refrigerator so as to avoid "all on top" or "all below" type loads.

• You can remove or relocate adjustable shelves to accommodate larger type of bottles (see removing shelves)
• Keep small gaps between the walls and the bottles to allow air circulation.
• Do not over load your wine refrigerator
• Avoid obstructing the internal fans (located inside on the back panel of the wine refrigerator).
• Do not try to slide the shelves outwards beyond the fixed position to prevent the bottles from falling.
• Do not pull out more than one loaded shelf at a time as this may cause the wine refrigerator to tilt forward if not properly installed.

REMOVING SHELVES

• To remove any of the shelves from the rail compartment, move the shelf to the position where the notch of shelf is exactly under the plastic post and then lift it up and out.
• In order to replace the shelf, repeat steps described above in reverse. And make sure to engage the shelves with the small pegs of the extended rails when the model is equipped with roller system.

REMOVING SHELVES

• To remove any of the shelves from the rail compartment, move the shelf to the position where the notch of shelf is exactly under the plastic post and then lift it up and out.
• In order to replace the shelf, repeat steps described above in reverse.

DISPLAY RACK
6 wine bottles can be arranged on the display rack for wine presentation. To install the display rack:

• Remove the shelf directly above the shelf you want to put the display rack on.
• Display rack cannot be put on the top shelf or the shelf directly below the control panel
• Pull out the shelf where the display rack will be placed. Place the display rack on it.
• Align metal hooks of display rack with the wine shelf. Make sure the display rack is securely installed on the shelf.

Care and Maintenance

Failure to unplug the appliance during service could result in electrical shock or personal injury.

CLEANING YOUR APPLIANCE

• Turn off the power, unplug the appliance, and remove all items including shelves.
• Wipe the interior with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to one quart of water.
• Wipe the shelves with a mild detergent solution.
• Wipe the outside cabinet with warm water and mild liquid detergent.
• Do not use steel wool or steel brush on the stainless steel. These will erode the stainless steel and rusting may occur.

Failure to unplug the appliance could result in electric shock or personal injury

PREMISES POWER FAILURE

• In the event of a power interruption, all previous temperature settings are automatically memorized. If power is interrupted (power surge, breaker switch, etc.) and then powered up again, the unit will operate with the last temperature set-point.
• Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

VACATION TIME

• Short vacations: Leave the appliance operating during vacations of less than two days
• Long vacations: If the appliance will not be used for an extended period, remove all items and turn off the appliance. Clean and dry the interior thoroughly.

MOVING YOUR APPLIANCE

• Remove all items inside the appliance.
• Securely tape down (we recommend using painter's tape) all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape (we recommend using painter's tape) the door shut.
• Be sure the appliance stays secure in the upright position during transportation and protect the exterior of appliance with a blanket, or similar item.

ENERGY SAVING TIPS

• The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of any direct sunlight.
• Ensure that the appliance is adequately ventilated. Never obstruct the air vents.
• Close the door tightly and do not open the appliance too frequently or for a long period of time.
• Store the content in an organized way
• Do not over-fill the appliance to allow air to circulate
