Page 1

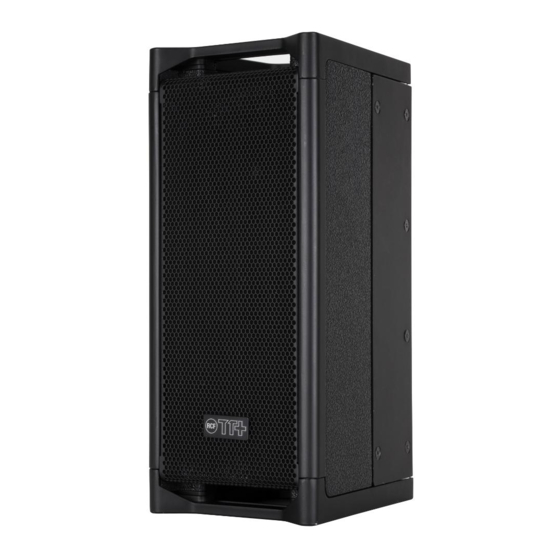

OWNER MANUAL ACTIVE ULTRA COMPACT TT 051-A II WIDE DISPERSION SPEAKER ACTIVE ULTRA COMPACT TT 052-A II HIGH OUTPUT SPEAKER HIGH OUTPUT AT PREMIUM SOUND QUALITY...
(wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.
These include computer aided simulation software to assist the understanding of transducer behaviour and amplifier operation and the relationship of dynamics and transient response. RCF utilises over thirty state of the art software packages to identify magnetic circuits, voice coil dynamics, suspension linearity, horn dispersion simulation, crossover filters, amplifier thermal behaviour etc.
Page 7
RDNET IN/OUT PLUG SECTION. The RDNET IN/OUT PLUG SECTION features etherCON connectors for the RCF RDNet protocol. This allows the user to completely control the speaker using the RDNet software. AC INPUT. Powercon locking 3-pole AC mains.
The top and bottom of the speaker is provided with a special mounting plate. To the mounting plate accessories for pole mounting or truss clamping can be assembled. TT+ speakers MUST be suspended only with RCF approved rigging hardware. WARNING: Daisy chaining speakers always make sure that the maximum current WARNING requirement does not exceed the maximum admitted POWERCON current.
Verificare inoltre l’idoneità del supporto (parete, soffitto, struttura ecc., al quale è ancorato il prodotto) e dei componenti utilizzati per il fissaggio (tasselli, viti, staffe non fornite da RCF ecc.) che devono garantire la sicurezza dell’impianto / installazione nel tempo, anche considerando, ad esempio, vibrazioni meccaniche normalmente generate da un trasduttore.
Page 10
L’installazione e l’utilizzo errati del prodotto esimono la RCF S.p.A. da ogni responsabilità. ATTENZIONE: per prevenire i rischi di fiamme o scosse elettriche, non esporre mai questo ATTENZIONE prodotto alla pioggia o all’umidità.
DESCRIZIONE GENERALE TT+ HIGH DEFINITION RCF TT+ rappresenta un altro importante capitolo della lunga storia di RCF. Sia che i diffusori siano progettati per musica dal vivo, per concerti in grandi spazi o per l’installazione fissa in TOURING AND THEATRE teatri, il cliente si aspetta un livello di fedeltà...
Page 12
SEZIONE RDNET IN/OUT. La SEZIONE RDNET IN/OUT presenta due prese per connettori etherCON per l’interfaccia con il protocollo RDNet. Questo permette all’utente di controllare il diffusore tramite l’utlizzo del software RCF RDNet. AC INPUT. Connettore di alimentazione Powercon per cavo di rete.
ATTENZIONE: quando più diffusori vengono alimentati in cascata assicurarsi sempre che ATTENZIONE la richiesta massima di corrente non superi la corrente massima ammessa dai connettori POWERCON. In caso di dubbio contattare il CENTRO ASSISTENZA RCF più vicino. SELEZIONE DELLA TENSIONE La sostituzione dei fusibili deve essere come da tabella:...
± SPECIFICATIONS µ ÷ TT 051-A II TT 052-A II ACOUSTICAL Operating frequency 65 - 20.000 Hz 65 - 20.000 Hz range Max SPL 116 dB 123 dB Coverage Conical 110° Conical 90° Crossover point 1.800 Hz 1.500 Hz TRANSDUCERS Low frequency 5”...
