z 1/3" Sony Super HAD Hi-Res. CCD
z 520 TV Lines
z 3.7mm Board Lens
z 0.1 Lux
z Day & Night Switching via Remote Controller and OSD Display
z 11.02"(W) x 9.06"(H) x 2.36"(D)
z 12V DC, 100mA
P = PAL Version
Please read the Operational Manual
before attempting to use this product.
ESM-N520-OSD
ESM-N520-OSDP

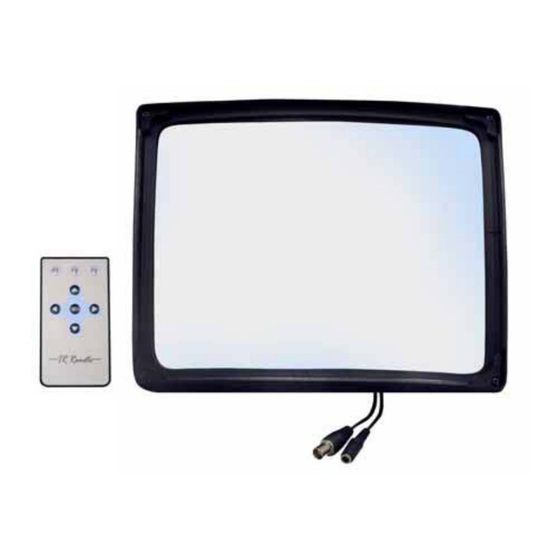

Covert Mirror Camera
Security Camera Hidden Behind the Mirror
1
ESM-N520-OSD_rev10162008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESM-N520-OSD and is the answer not in the manual?

Questions and answers

Related Manuals for Covert ESM-N520-OSD

Summary of Contents for Covert ESM-N520-OSD

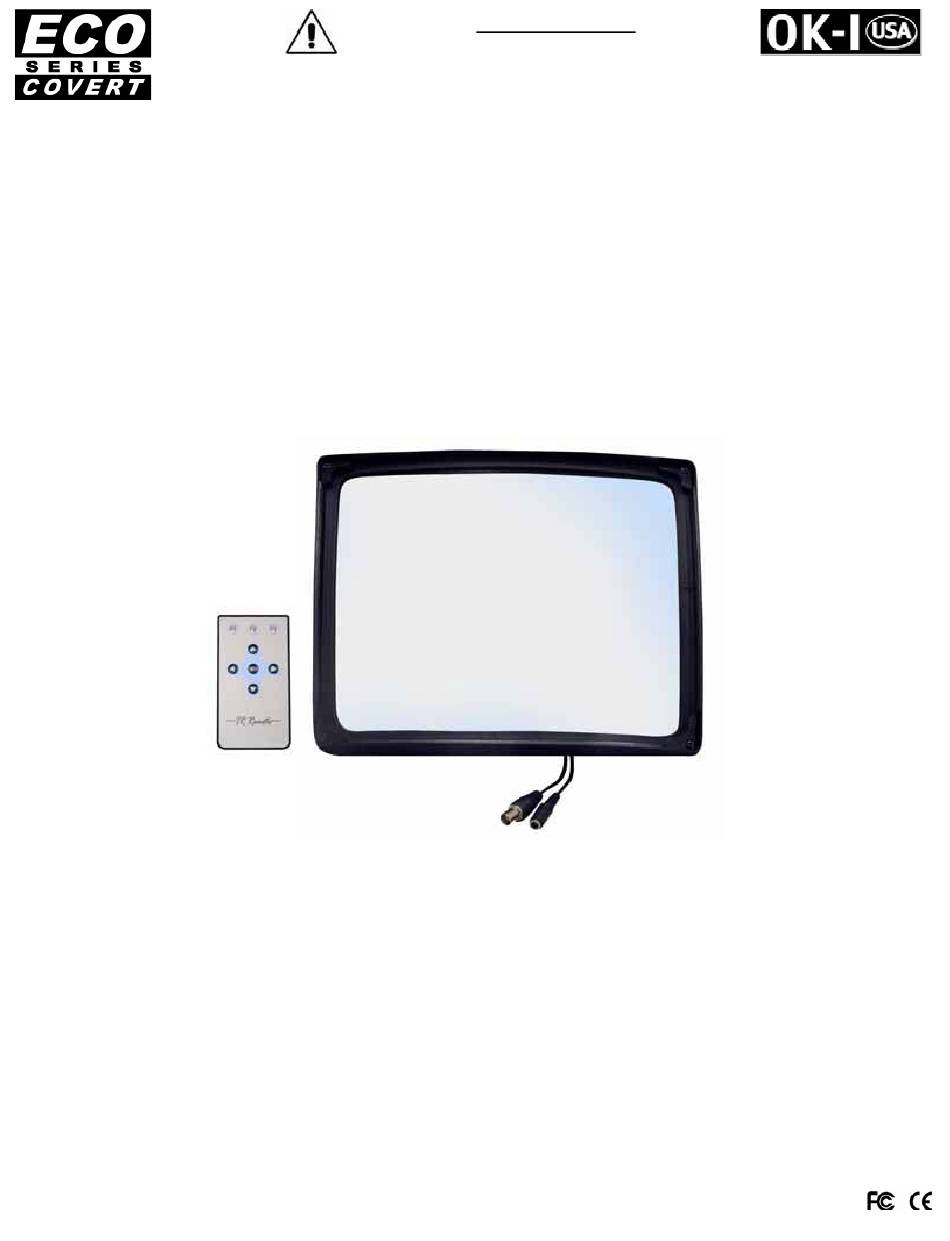

  • Page 1 Please read the Operational Manual before attempting to use this product. ESM-N520-OSD ESM-N520-OSDP Covert Mirror Camera Security Camera Hidden Behind the Mirror z 1/3” Sony Super HAD Hi-Res. CCD z 520 TV Lines z 3.7mm Board Lens z 0.1 Lux z Day &...
  • Page 2 OSD Hierarchy P = PAL Version ESM-N520-OSD_rev10162008...

  • Page 3: Camera Id On Off

    OSD Setup Press "ENTER" to see OSD Setup Main Menu Top to Down: Setup Lens 1. LENS Adjust Shutter Speed 2. SHUTTER 3. BLC Back Light Compensation On / Off Auto Gain Control 4. AGC 5. WHITE BAL White Balance 6.
  • Page 4 3. BLC Back Light Compensation: On / Off a. Off : Turn off Back Light Compensation. b. On: Press "ENTER" to adjust Back Light Compensation. BLC AREA: Setup back light compensation area. BLC RATIO: Setup BL area brightness. (Number goes bigger, screen becomes brighter). *Press "ENTER"...

  • Page 5: White Bal

    5. WHITE BAL Setup Camera White Balance and the Range of Color Temperature. There are 4 WHITE BAL modes: ATW, AWB, FIXED, and MANUAL. a. AWB AWB is performed within the range of color temperature created by Camera default value. b.
  • Page 6 8. FUNCTION All other fuctions: Reset, Day Night, Motion, Privacy, and Gamma. Press "ENTER" to see the Sub-Menu. a. RESET Reset to the original setting. b. DAY NIGHT While in low illumination, screen will trun to Black/White. There are 3 modes: Auto, Color, B/W i.

  • Page 7: Specifications

    Finally move cursor to " ", then press "ENTER" to confirm. To erase camera ID, move cursor to "C". Then press "ENTER" to erase. SPECIFICATIONS Model ESM-N520-OSD ESM-N520-OSDP TV System NTSC Image Pick-up Device 1/3” Sony Super HAD Hi-Res. CCD...

  • Page 8: Package Contents

    PACKAGE CONTENTS One (1) ESM-N520-OSD/ESM-N520-OSDP with video/power cable One (1) Remote Control One (1) Operational Manual * For any returns, please include all components listed above with original packaging in Resalable Condition. Absolutely No Returns will be accepted if any component is missing/damaged.
