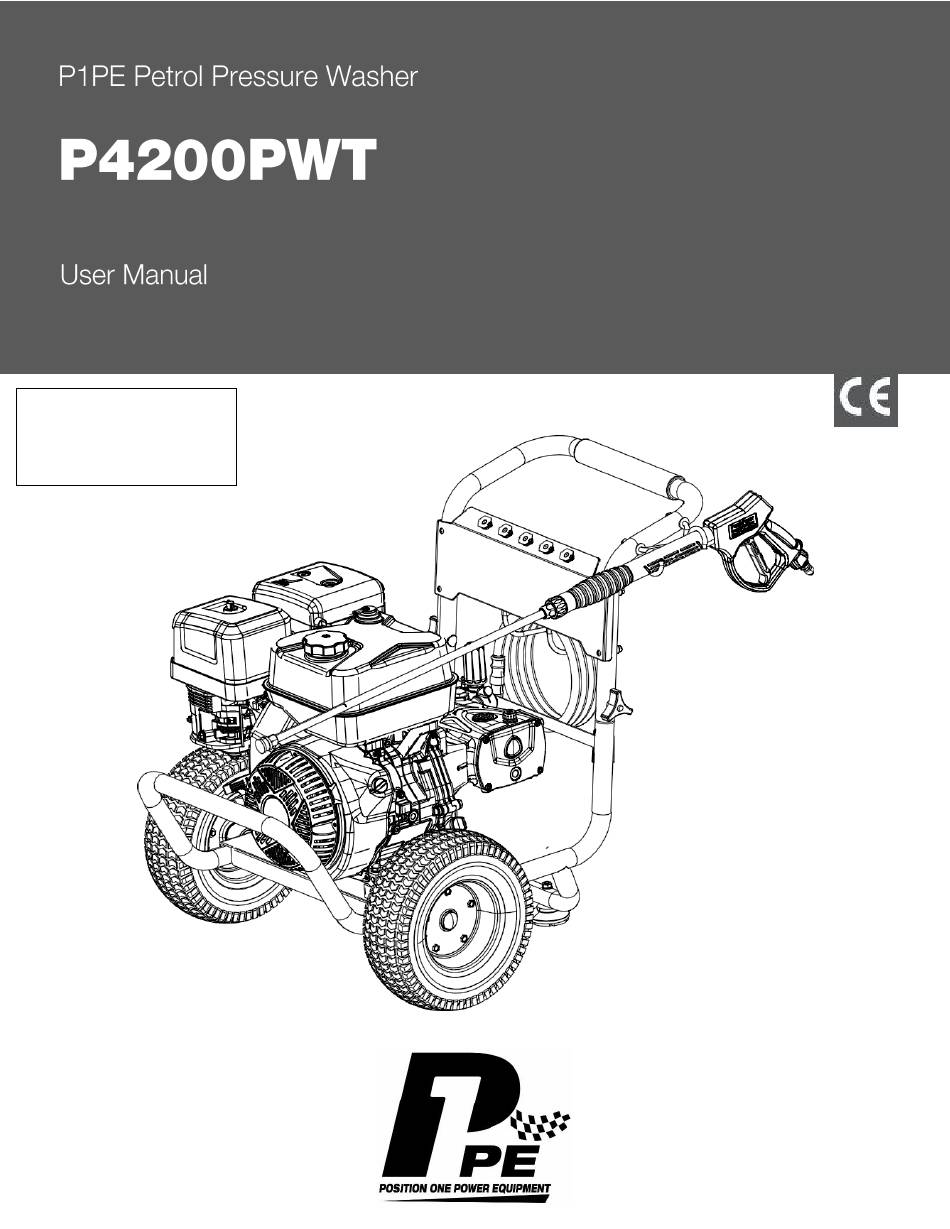

- Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction .................................... 3 Safety Rules ................................... 4 Safety Symbols ................................4 Safety Instructions ..............................4 Pressure Washer Features ..............................7 Assembly ....................................10 Packing List ................................10 Unpacking ................................. 10 Attaching Spray Gun..............................11 Replace Shipping Plug with Dipstick......................... 11 Adding Engine Oil and Fuel ............................12 Operation .................................... -
Page 3: Introduction
INTRODUCTION Product Specifications: This pressure washer operates at 4200PSI with a flow rate of 15 litres per minute. This high end residential use system features a reliable Hyundai engine, no flat foam filled tires, 50’ high pressure hose, and 5 quick-connect nozzles. Product Applications: •... -
Page 4: Safety Rules
SAFETY RULES Safety Symbols Indicates a potentially hazardous WARNING! situation which could result in serious injury or death if not avoided. Indicates a potentially hazardous CAUTION! situation which could result in damage to equipment or property. Slippery surface Risk of explosion Risk of electric shock Hot surface Eye protection... - Page 5 SAFETY RULES To reduce the risk of injection, injury or possible amputation, never direct water pressure WARNING! towards people or pets. • The high pressure stream of water produced can cut through skin and underlying tissue. Never squeeze the trigger or point the spray gun at other people, animals, plants, or fragile objects such as glass, even if the engine is stopped.
- Page 6 To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly. WARNING! Never operate this unit if there are any broken or missing parts and only use P1PE replacement parts specifically designed for this unit. • Improper treatment of pressure washer can damage the unit and shorten its life.
-
Page 7: Pressure Washer Features
PRESSURE WASHER FEATURES... -
Page 8: Assembly
ASSEMBLY Packing List • Pressure washer • Operator’s manual • Engine manual • Spray gun • Extension wand with quick-connect fitting • High pressure hose • Spray nozzles (5) - 0°, 15°, 25°, 40° and soap nozzle • Nozzle cleaner Do not attempt to assemble or operate this pressure washer until you have read and WARNING! understood this entire manual. -
Page 9: Attaching Spray Gun
ASSEMBLY Attaching the Spray Gun (See fig 1 & 2) • Screw the spray wand and the trigger handle together until they are secure. • Pull back the quick-connect collar of high pressure hose, insert the other side of the spray gun then release collar. When high pressure hose is connected, pull on the hose to make sure it is secured. - Page 10 ASSEMBLY Adding / Checking Engine Oil (See fig 4) • Place pressure washer on a level surface. • Remove one or both of the crankcase dipsticks to ensure you do not overfill the engine. • Carefully add 1.1L (37.2 oz) of semi-synthetic SAE10W30 engine oil to empty reservoir until oil reaches the outer edge of the oil fill hole (Crankcase Dipstick hole).
- Page 11 ASSEMBLY Connecting Garden Hose to Pressure Washer (See fig 6) • • Inspect inlet screen and remove any debris. • Connect hose to water inlet and tighten by hand. There must be a minimum of 10 feet of unrestricted hose between pressure washer and faucet or shut off valve.
-
Page 12: Operation
OPERATION Pre-Operation Check List • Read and understand this operator manual in its entirety before operating pressure washer. • Check oil level and add oil to the proper level if low. • Check fuel level and add fuel if needed. •... - Page 13 OPERATION Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which WARNING! could result in injury. • Always relieve pressure from spray gun before pulling starter cord, including every failed attempt to start engine. •...
-
Page 14: Using Spray Nozzle
OPERATION Using Spray Nozzle (See fig 14) • To connect or disconnect spray tip, pull back on the quick-connect collar. Insert or remove spray tip then release collar. • When spray tip is connected, pull on the spray tip to make sure it is secured. •... -
Page 15: Maintenance
MAINTENANCE Regular maintenance will extend the life of this pressure washer and improve its performance. The warranty does not cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must maintain the pressure washer as instructed in this manual, including proper storage. Before inspecting or servicing this machine, make sure the engine is off and no parts are WARNING! moving. -
Page 16: Changing Oil
Replace siphoning tubes if damaged. Never repair high pressure hose or use unit if hose is damaged. If hose is damaged WARNING! replace with identical P1PE part. High Pressure Hose • Inspect hose for cuts, bulges, or leaks which can develop from kinking or wear. If damage is found, immediately replace hose. - Page 17 MAINTENANCE Checking Spark Plug • Disconnect the spark plug wire from the spark plug. • Before removing the spark plug, clean the area around its base to prevent debris from entering the engine. • Clean carbon deposits off the electrode with a wire brush. •...
-
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Engine does not start 1. Out of fuel 1. Fill fuel tank 2. Engine oil low 2. Add engine oil 3. Spark plug wire disconnected 3. Connect spark plug wire from spark plug 4. Replace spark plug 4. -
Page 19: Recycling & Product Disposal
RECYCLING & PRODUCT DISPOSAL We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine, you must take it to your local Civic Amenity Site. For further information please contact your local Authority for disposal advice. -
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY Genpower Ltd confirms that this P1PE petrol pressure washer conforms to the following CE directives: 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Noise Emissions Directive 97/68/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by:... -
Page 21: Contact Details
CONTACT DETAILS Postal Address Genpower Limited London Road, Pembroke Dock, Pembrokeshire SA72 4RW. UK Telephone +44 (0) 1646 687880 +44 (0) 01646 686198 Website www.p1pe.co.uk WARRANTY To register your machine for the Manufacturer’s warranty, please visit: http://www.p1pe.co.uk/warranty...
