Summary of Contents for P1PE P3000PWA

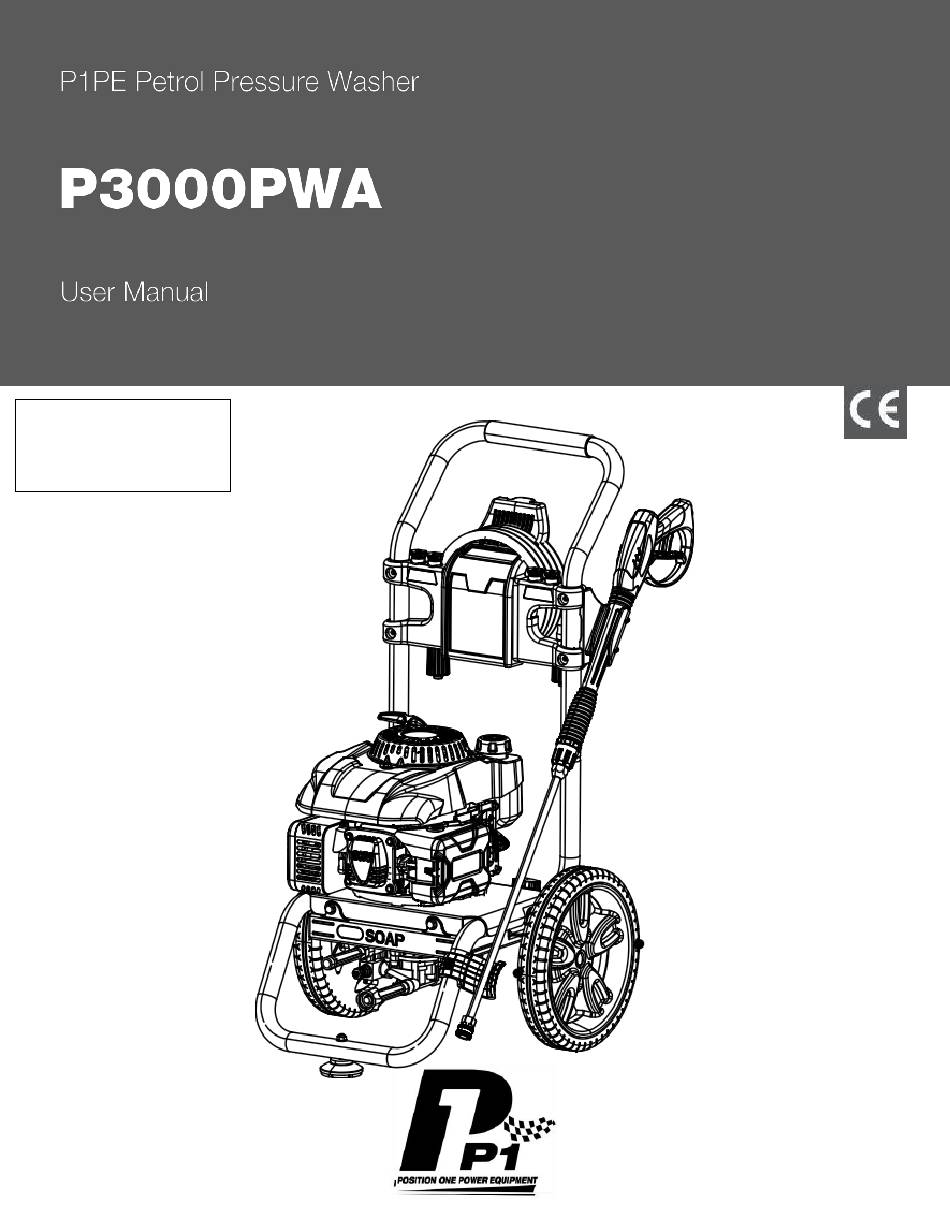

- Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Pressure Washer Identification… ........... 3 Service Record… ................3 Introduction… ................. 4 Safety Information… ..............4 General Safety Information… ............5 Important Safety Instructions… ............6 Pressure Washer Components… ............. 7 Pressure Washer Preparation…............8 Pressure Washer Operation… ............12 Pressure Washer Maintenance &... -
Page 3: Pressure Washer Identification
PRESSURE WASHER IDENTIFICATION Refer to the illustration below for the location of the serial number. Record pressure washer information in the spaces provided. DATE OF PURCHASE: PURCHASED FROM: PRESSURE WASHER SERIAL NUMBER: Serial Number SERVICE RECORD Record Service Dates: Date Date Date Date... -
Page 4: Introduction
INTRODUCTION This manual contains special messages to bring attention to potential safety concerns, pressure washer damage as well as helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage. SAFETY INFORMATION Before operating this pressure washer read and observe all warnings, cautions, and instructions on the pressure washer and in this Owner’s Manual. -
Page 5: General Safety Information
GENERAL SAFETY PROCEDURES DANGER: CARBON MONOXIDE Using a pressure washer indoors CAN KILL YOU IN MINUTES. Pressure washer exhaust contains carbon monoxide (CO). This is a poison gas you cannot see or smell. If you can smell the pressure washer exhaust, you are breathing CO. -
Page 6: Important Safety Instructions
Attach all hoses before starting the engine. SAVE THESE INSTRUCTIONS – This manual contains important instructions for the P1PE Pressure Washer that should be followed during installation and maintenance of the pressure washer. -
Page 7: Pressure Washer Components

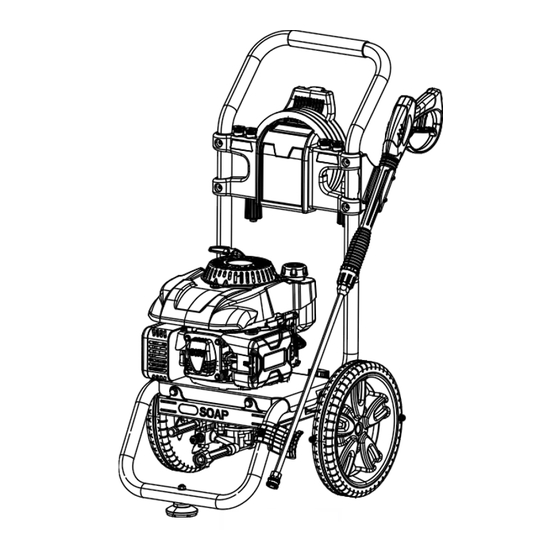

PRESSURE WASHER COMPONENTS Use the illustrations below to become familiar the locations and functions of the various components and controls of this pressure washer. Handle Fuel Filler Cap 25ft High Pressure Hose Choke Lever Recoil Starter Handle Engine ON/OFF Switch Exhaust Air Filter High Pressure Hose Outlet... -
Page 8: Pressure Washer Preparation
PRESSURE WASHER I O N A T P A R E P R Open the packaging and take out all loose parts from the box. Make sure all the components are accounted for before discarding the packaging. If any part is missing or broken, please contact our customer service department. - Page 9 PRESSURE WASHER PREPARATION ATTACHING FOOT ASSEMBLY (Fig. 1) PARTS NEEDED: 1 foot, 1 M8 lock nuts. 1 . Raise or tilt pressure washer so you can line up the foot with the hole located at the centre of the frame. 2 .
- Page 10 PRESSURE WASHER I O N A T P A R E P R ATTACHING THE SPRAY GUN (Fig. 5 & 6) Screw the spray wand and the trigger handle together until they are secure. 1. Insert the inlet coupler of the spray hose into the threaded fitting on the high pressure spray gun and thread the black nut on by turning clockwise until it is hand tight.
- Page 11 PRESSURE WASHER PREPARATION ADD PETROL WARNING: This pressure washer may emit highly flammable and explosive petrol vapors, which can cause severe burns or even death if ignited. A nearby open flame can lead to explosion even if not directly in contact with petrol. Use fresh (within 30 days from purchase), unleaded petrol with a minimum of 87 octane rating.
-
Page 12: Pressure Washer Operation
PRESSURE WASHER I O N A T P A R E P R CONNECTING GARDEN HOSE TO PRESSURE WASHER (Fig. 9) 1 . Run water through the hose for a few seconds to flush any debris from the hose. 2 . Inspect the inlet screen and remove any debris. 3 . - Page 13 OPERATION USING THE SPRAY GUN (Fig. 11 & 12) Flip the lock tab behind the trigger up or down until it clicks to apply or remove the safety. Pull back on the trigger to begin operating pressure washer. To stop water flow, release trigger. Fig.
- Page 14 OPERATION USING SPRAY NOZZLE (Fig. 16) 1 . To connect or disconnect spray tip pull back on the quick-connect collar. Insert or remove spray tip then release the collar. 2 . When spray tip is connected, pull on the spray tip to make sure it is secured. 3 .
-
Page 15: Pressure Washer Maintenance & Care
MAINTENANCE/CARE Proper routine maintenance of the pressure washer will help prolong the life of the machine. Please perform maintenance checks and operations according to the schedule in Fig. 17. If there are any questions about the maintenance procedures listed in this manual, please contact your dealer. - Page 16 MAINTENANCE & C ARE AFTER EACH USE Follow these procedures after each use: 1. Shut off engine and turn off water supply. Release water pressure by pointing spray gun in a safe direction and squeezing the trigger. Disconnect high pressure hose, spray gun, and nozzle. .Drain water from items and use a rag to wipe down the outside of the hose and spray gun.
- Page 17 MAINTENANCE & C ARE AIR CLEANER MAINTENANCE Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Occasionally check that the air cleaner is free of excessive dirt. Refer to Recommended Maintenance Schedule in Fig. 17. 1. Open the air cleaner cover. Remove the air cleaner element from the casing.
- Page 18 MAINTENANCE & C ARE SPARK PLUG MAINTENANCE The spark plug is important for proper engine operation. A good spark plug should be intact, free of deposits, and properly gapped. Refer to Recommended Maintenance Schedule in Fig. 17. To inspect the spark plug: 1 .
-
Page 19: Storage & Transport
MAINTENANCE & C ARE SPRAY NOZZLE If a pulsing sensation is felt while squeezing the trigger, the spray nozzle may be dirty or clogged and should be cleaned immediately. To clean the nozzle: 1. Shut off the engine and turn off the water. 2. -
Page 20: Specifications
SPECIFICATION Pressure Washer Max. Pressure 2800 PSI Max. Flow 2.3 GPM Nozzles 0°, 15°, 25°, 40°, Soap Nozzle Gun to Lance Connection M22 x 1.5 Threaded Gun to Hose Connection M22 x 1.5 Threaded 20” Stainless Lance Length Lance to Nozzle Connection Quick Change Pump Axial Cam Detergent Tank Capacity... -
Page 21: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Engine will not start Engine switch is set to Set engine switch to “OFF” “ON”. Choke lever is set to “Run” Turn choke lever to “Start” Engine is out of fuel Add petrol Engine is filled with con- Change the petrol in the fuel tank taminated or old petrol Spark plug is dirty... -
Page 22: Recycling & Product Disposal
We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine, you must take it to your local Civic Amenity Site. For further information please contact your local Authority for disposal advice. -
Page 24: Declaration Of Conformity
Genpower Ltd confirms that this P1PE petrol pressure washer conforms to the following CE directives: 2006/42/EC Machinery Directive 2004/108/EC EMC Directive 2000/14/EC Noise Emissions Directive 97/68/EC NRMM Emissions Directive EC DECLARATION OF CONFORMITY The undersigned. As authorised by: Genpower Ltd... - Page 25 Postal Address Genpower Limited London Road, Pembroke Dock, Pembrokeshire SA72 4RW. UK Telephone +44 (0) 1646 687880 +44 (0) 01646 686198 Website www.p1pe.co.uk To register your machine for the manufacturer’s warranty, please visit: http://www.p1pe.co.uk/warrant...
- Page 28 P1 PE - Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire, SA724RW www.p1pe.co.uk...
