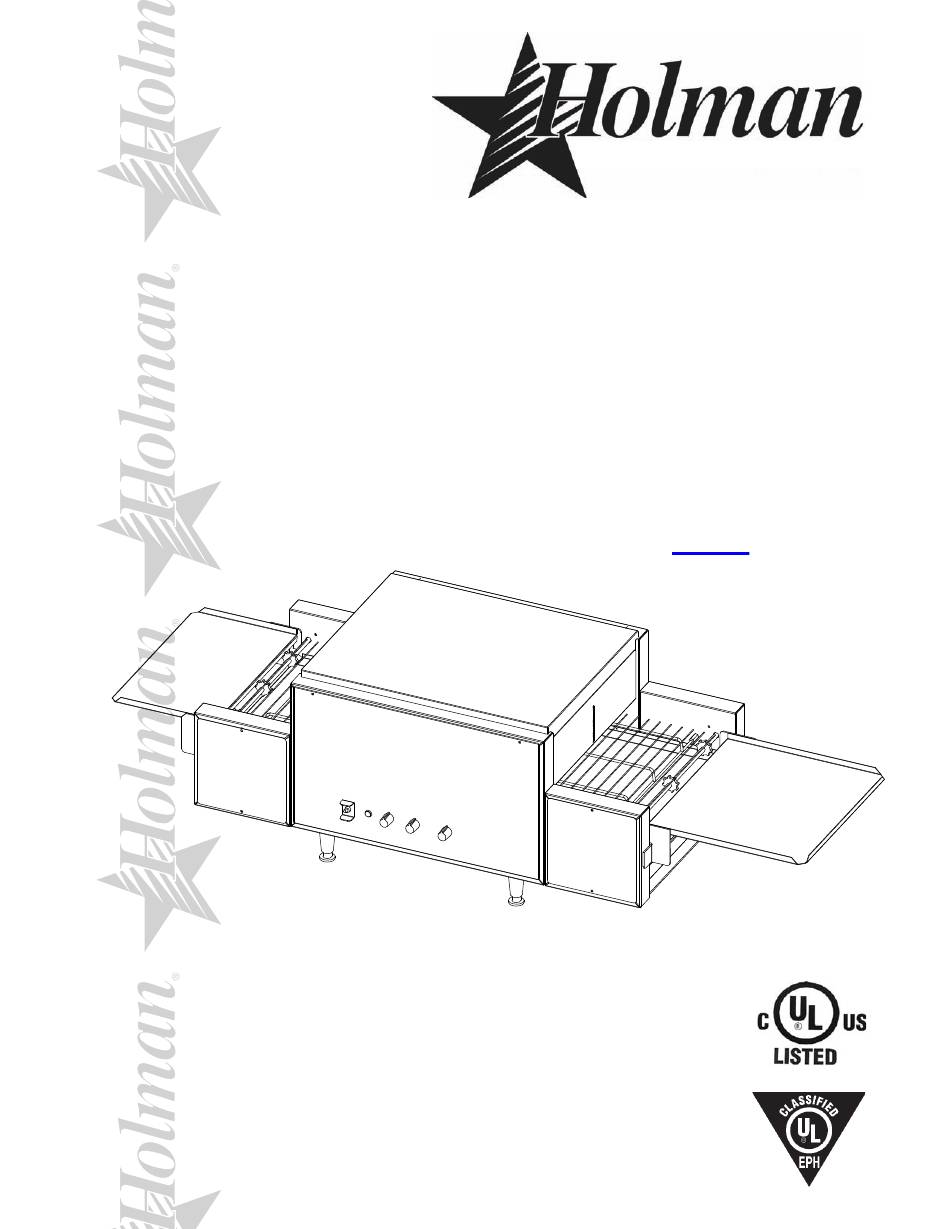

- Page 1 ® PROVEYOR MULTI-PURPOSE OVEN MODEL 314HX, 318HX Series Installation and Operation Instructions 2M-HG0105 Rev. C 5/06/2011 314HX...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Specifications
TABLE OF CONTENTS PAGE Maintenance and Repairs Star Contact information Specifications General Information Data Inspection & Assembly Assembly and Installation Heating Elements Cooling System Final Check Electrical Connection Stacking Ovens Daily Operation Oven Components Operating Hints & Saftey Cleaning Maintenance Procedures Troubleshooting Guide Limited Equiptment Warranty Wiring Diagram 15-18 Exploded View Illustration Parts List 314HX Parts List 318HX Control Box Configuration Specifications Model Voltage Watts Amps Phase Cord 208V 6-50P 314HX 5,400 240V 6-30P 208V 6-50P... -
Page 4: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions & labels associated with the unit prior to putting it into operation. Make sure all people associated with its use understand the units operation & safety before they use the unit. All shipping containers should be checked for freight damage both visible and concealed. This unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a request for inspection of concealed damage must be made with carrier within 15 days. Be certain to retain all contents plus external and internal packaging materials for inspection. The carrier will make an inspection and will supply necessary claim forms. INSPECTION & ASSEMBLY UNCRATING AND INSPECTING Unpack the unit and components from the shipping container. Remove all visible packing material and those from inside the cooking chamber. If damage is discovered, file a claim immediately with the carrier that handled the shipment. Do not operate the unit if it was damaged during shipping. The following should be included: Proveyor Multi-Purpose Oven, Stainless Steel Load Up & Unload Trays, 4 Stainless Steel Legs. REMOVE ALL HEATING ELEMENT SHIPPING SUPPORTS PRIOR TO PLACING YOUR UNIT INTO OPERATION. CAUTION ASSEMBLY AND INSTALLATION The unit was shipped with certain assembly required, plug into a standard outlet specified for its... -
Page 5: Final Check
ASSEMBLY AND INSTALLATION continued Install unit in its operating position allow sufficient space for UNLOAD TRAY operating personnel. Install the ADJUSTABLE Load, Unload and Crumb Trays HEAT SHUTTERS as shown, making sure the ends are at least 6" from any vertical combustible surfaces. CRUMB TRAY LOAD TRAY Have an electrician connect input power to the unit(s) in accordance with local electrical codes. A connection terminal block is inside OPERATE the left side cavity for models not provided with a cord and plug set. CLEAN HEATING ELEMENTS CRUMB TRAY Inspect all heating elements in the unit for breakage. Every unit TYPICAL LEFT TO RIGHT CONFIGURATION is properly tested prior to leaving the factory, but damage may of occurred during shipping. If a broken tube is found, do not apply power to the unit. If everything checks out, Turn on Main Power Switch, Turn both heat controls and conveyor belt speed control to... -
Page 6: Stacking Ovens
STACKING OVENS When stacking two Holman Proveyor Ovens a stacking spacer with an external air duct MUST be used to prevent overheating of the control box of the top oven. 1. If a cart is to be used with units, place bottom unit on cart and align leg holes of unit with the holes on the cart. Insert 3/8" bolts through cart and into leg holes to secure bottom unit to cart as shown below. 2. Place stacking spacer on top of bottom oven with internal air duct facing up and towards the rear of the oven. 3. Mount external air duct on stacking spacer as shown below. External air duct must be installed for cooling system of top unit to function properly. 4. Screw cap screws (Qty 4) into leg hold on the top oven. 5. Place top oven on stacking spacer. Cap screws will set into cut out in top of stacking spacer to lock unit into position. OVEN NOTE: Air intake of top unit must fit over the internal air duct of stacking spacer to allow airflow into the control box of the top oven. -
Page 7: Daily Operation
DAILY OPERATION Baking in these units is a combination of heat and belt speed. Some foods may require more top heat or visa versa; other foods may require low top and bottom heat and slow belt speeds. Every product should, therefore, be tested using the separate top & bottom controls and the variable speed control to arrive at the correct balance of heat and belt speed. When changing heat and or belt speed setting allow approx. 5 minutes for the oven to stabilize itself at the new settings. Check the power cord to insure that it is plugged into a proper outlet. Always allow 10 to 15 minutes of preheat time before loading the unit with product. Failure to allow sufficient preheat time will result in unsatisfactory cooking until the unit reaches operating temperature. 1) Turn the master on/off switch to the ON position. 2) Set both the top and bottom heat controls to 500°F (260°C). 3-Phase Control Units, set front heat controls to 500°F (260°C) 3) Turn conveyor speed control to the fastest setting. 4) Allow 10 to 15 minutes for initial warm up, (5 to 8 minutes to reach adjusted temperature, once unit is fully warmed up) CERTAIN SURFACES ARE EXTREMELY HOT DURING OPERATION AND CARE SHOULD BE TAKEN WHILE USING THIS UNIT. - Page 8 CLEANING Preventive maintenance for your Holman Oven consists of the following recommended cleaning procedures. To keep your oven in its top operating condition, these steps should be performed on a daily, weekly or as indicated. DISCONNECT UNIT FROM POWER SUPPLY OR TURN POWER OFF AT WALL BREAKER. WARNING DAILY 1. Turn main power switch to the OFF position. Disconnect unit from power source and allow to cool. 2. Using a mild detergent, wipe exterior surfaces, clean with a damp cloth. a. For lightly soiled build-up, clean with a damp cloth. b. For heavily soiled build-up, use an soft damp cloth and mild detergent. DO NOT use caustic cleaners. 3. Remove the load & unload tray by lifting them out of position. Clean using mild detergent and warm water. 4. Remove each crumb tray by sliding each of them out from under the conveyor belt. Clean crumb trays by wiping with a damp cloth and mild detergent. DO NOT use caustic cleaners. Place trays back in place prior to putting unit back into operation.
- Page 9 CLEANING CONTINUED MONTHLY 1. Turn main power switch to the OFF position. Disconnect unit from power source and allow to cool. 2. Perform daily & weekly cleaning procedures. REMOVAL & CLEANING CONVEYOR BELT 3. Heavily soiled conveyor surfaces, locate the Master Links on the conveyor belt. Follow the step 1 in Fig 1, to remove all of the Master Links. 314 models have 3 master links, 318 models have 4 master links. 4. Now that the links have been un-hooked, the conveyor can now be carefully removed f rom the oven. Standing at one end of the oven. Starting with the end on the bottom, roll the conveyor belt until it has been totally removed. Take careful notice being sure not to damage the heater tubes. IL1021 5. Clean conveyor belt in deep sink, caustic cleaners may be used. For a heavy soiled conveyor belt, soak over night in hot soapy water. NOTE: DO NOT ATTEMPT TO CLEAN THE HEATER TUBES. 6. Take this opportunity to COUPLER clean and remove any...
-
Page 10: Maintenance Procedures
MAINTENANCE PROCEDURES A. REPLACING HEATER TUBES DISCONNECT POWER SOURCE. Remove both the left and right side panels, by removing the truss head screws. Pull the top of each panel out slightly and lift up. Remove heater tube wires which are requiring replacement from its terminal block connection. - Page 11 MAINTENANCE PROCEDURES continued 10) Slide motor until the drive chain has about 1/4” slack when lightly pushed at the center of its top open run. See chain tensioning illustration. 11) Tighten screws to secure motor. 12) Rewire leads same as removed in step 6. 1/4”...
-
Page 12: Troubleshooting Guide
B. UNIT WILL NOT HEAT, CONVEYOR TURNS PROPERLY. 1) Check to see if the top and bottom heat controls have been turned to the maximum setting. 2) Press the Hi-Limit Reset Button located underneath the conveyor belt on the right side. If this reactivates the heater tubes, see Hi-Limit Reset Section below. 3) Call the Star Service Help Desk at (314) 634-6303. C. HI-LIMIT (HEAT) RESET. Your Holman conveyor oven is equipped with an automatic activated temperature limit switch which interrupts the heater tube connections if the air temperature in the control box exceeds 190°F (88°C) This limit switch can be reset manually by pushing the button in the center of the switch which is located on the right side under the conveyor belt. See Oven Components on Page 7 for location. Unit will not reset until internal temperature has fallen below 190°F (88°C). NOTE: THE HI-LIMIT SWITCH CAN BE ACTIVATED IF THERE IS NOT A PROPER AMOUNT OF AIR FLOW BEING GENERATED BY THE COOLING FAN. IF THIS OCCURS: 1) DISCONNECT UNIT FROM POWER SOURCE. - Page 13 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
- Page 14 FRONT HEAT TOP HEAT BOTTOM HEAT ON/OFF SWITCH HIGH LIMIT RESET SPEED CONTROL CONV. MOTOR PILOT LIGHT MOTOR FRONT BOTTOM CONTROL MAIN POWER FRONT BOTTOM HEAT HEAT HEAT BOTTOM FRONT CONTROL CONTROL CONTROL HEAT HEAT HEAT PROBE PROBE PROBE THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
- Page 15 THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. ® 820078 Rev A 08/16/2001 MODEL: 314HX, 318HX, 208/240V, SINGLE PHASE...
- Page 16 THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. MODEL: 314HX, 318HX, 208/220/240 VOLT, 60 Hz ® SINGLE PHASE (PHASE CONTROLS) 020078 Rev - 05/2/2000...
- Page 17 FRONT HEAT TOP HEAT BOTTOM HEAT HIGH LIMIT ON/OFF RESET SWITCH SPEED BOTTOM CONTROL CONV. MOTOR FRONT PILOT LIGHT CONTROL 135100 115394 MAIN POWER FRONT BOTTOM HEAT HEAT HEAT CONTROL CONTROL CONTROL BOTTOM FRONT HEAT HEAT HEAT PROBE PROBE PROBE THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG.
- Page 28 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
