Jazz™PLC+HMI

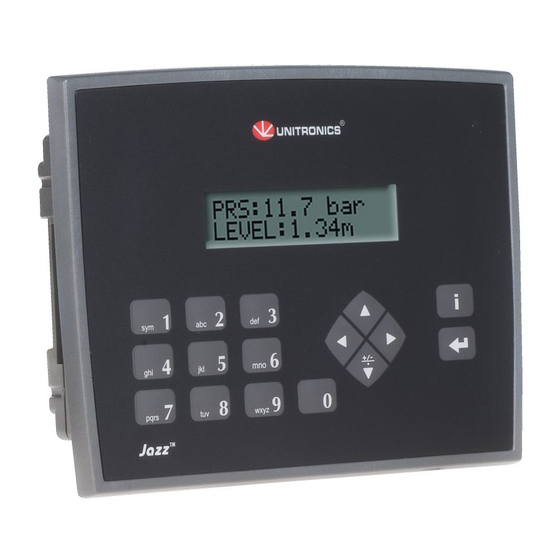

JZ20-UA24
JZ20-J-UA24
Before using this product, the user must read and understand this document.
For additional information regarding this product, refer to the user guide and technical specifications.
All examples and diagrams are intended to aid understanding, and do not guarantee operation.
Unitronics accepts no responsibility for actual use of this product based on these examples.
Please dispose of this product according to local and national standards and regulations.
Only qualified service personnel should open this device or carry out repairs.
Failure to comply with appropriate safety guidelines can cause severe injury or property damage.
Do not attempt to use this device with parameters that exceed permissible levels.
To avoid damaging the system, do not connect/disconnect the device when power is on.
Environmental Considerations
Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,
moisture or rain, excessive heat, regular impact shocks or excessive vibration.
Ventilation: 10mm space required between the PLC+HMIs' top/bottom edges & enclosure
walls.
Do not place in water or let water leak onto the unit.
Do not allow debris to fall inside the unit during installation.
Mounting
Dimensions
* Note that for JZ20-J modules those dimensions are 7.5 mm (0.295").
Unitronics
Micro-PLC+HMI Installation Guide
9 Digital Inputs including one HSC, 2 Analog/Digital inputs,
2 Analog Inputs, 2 PT100/TC,
5 Relay Outputs, 2 Transistor Outputs, 2 Analog Outputs
1
Advertisement
Related Manuals for Unitronics Jazz JZ20-UA24
Summary of Contents for Unitronics Jazz JZ20-UA24
- Page 1 All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples. Please dispose of this product according to local and national standards and regulations.
- Page 2 To avoid damaging the wire, use a maximum torque of 0.5 N·m (5 kgf·cm). Do not use tin, solder, or any substance on stripped wire that might cause the wire Caution strand to break. Install at maximum distance from high-voltage cables and power equipment. Unitronics...
- Page 3 Note that if 1 input is wired as an npn input, the other may not be wired as an analog input. AN2 and AN3 are analog (current) inputs that may be wired using 2, 3, or 4 wires. Analog Input 0 and 1 can function as either thermocouple or PT100 inputs; each PT100 signal has its own CM signal. Unitronics...
-
Page 4: Analog Inputs
Analog Input wiring, current, 4 wire, AN2 and and AN3 Analog Input wiring, voltage, AN4 and AN5 Note: If either I9 or I10 is wired as an npn digital input, the remaining input may not be wired as an analog input. Unitronics... - Page 5 PT100 (Sensor 1): use both inputs related to CM signal 4 wire PT100 can be used by leaving one of the sensor leads unconnected. Digital Outputs, Outputs’ Power Supply PNP Outputs +VO is the power supply input for pnp outputs O5–O6. Unitronics...
