FiberX FX-P120 User Manual

FiberX DVI Fiber Extender Pigtail User Guide
FX-P120
Thank you for purchasing FX-P120
The optical DVI pigtail extender extends DVI signals up to 300m using
single strand multi-mode optic fiber transmission. It transmits the EDID
information and HDCP over fiber in real time, so it can be used with HDMI
standard devices such as BluRay players, PS4, etc.

Package Contents

Please make sure all of the following items are included in the package:
1 FX-P120 Transmitter & Receiver
2 +5V DC Power supply x 1pcs
3 User Guide
If any of the above items are missing, please contact your supplier for support.
Note: Package content may differ if you have placed a special order or placed order from anywhere other than
PureLink GmbH. PureLink GmbH reserves the right to make changes without further notice to a product de-
scribed herein to improve reliability, design, packaging or function.

Installation

Installation Steps:
1. Connect the Transmitter module to the DVI source device.
2. Connect the Receiver module to the display.
3. Connect a single strand multi-mode SC terminated optic fiber (50/125µm) from the Transmitter to the
Receiver module.
4. Connect the included +5V DC power supply into Receiver module.
5. A blue indicator LED will light up after all connections are completed.
Note: The Transmitter module does not need to be externally powered unless the source device does not
supply enough power through the DVI connector.
1
K n o w - H o w . Q u a l i t y . D e s i g n .
PureLink GmbH | Von-Liebig-Straße 10 | 48432 Rheine | Germany | Tel.: 0049 (0)5971-800 299-0 | E-mail: info@purelink.de | Internet: www.purelink.de

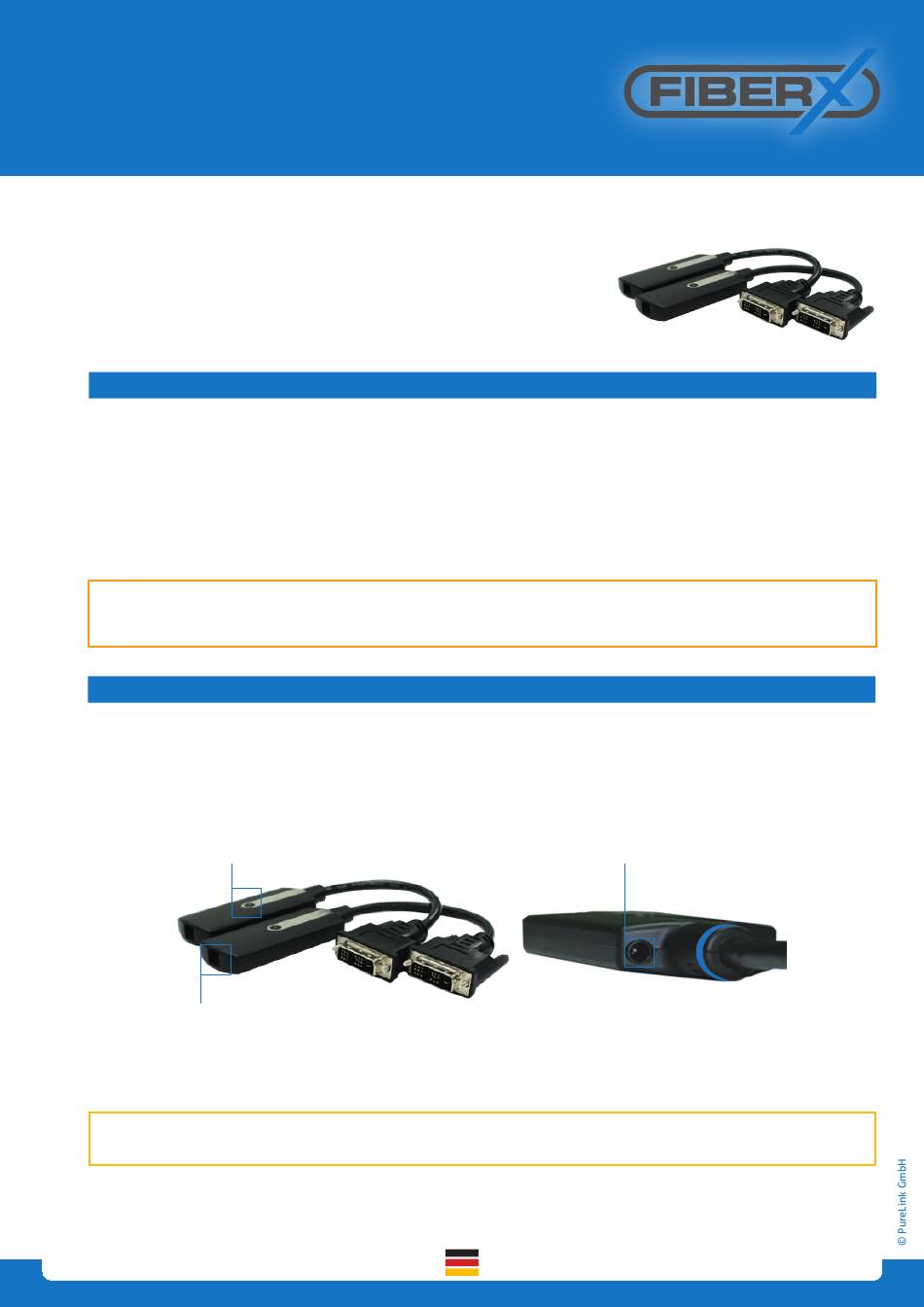

LED indicator
SC type optical port
DC +5V
Power jack
