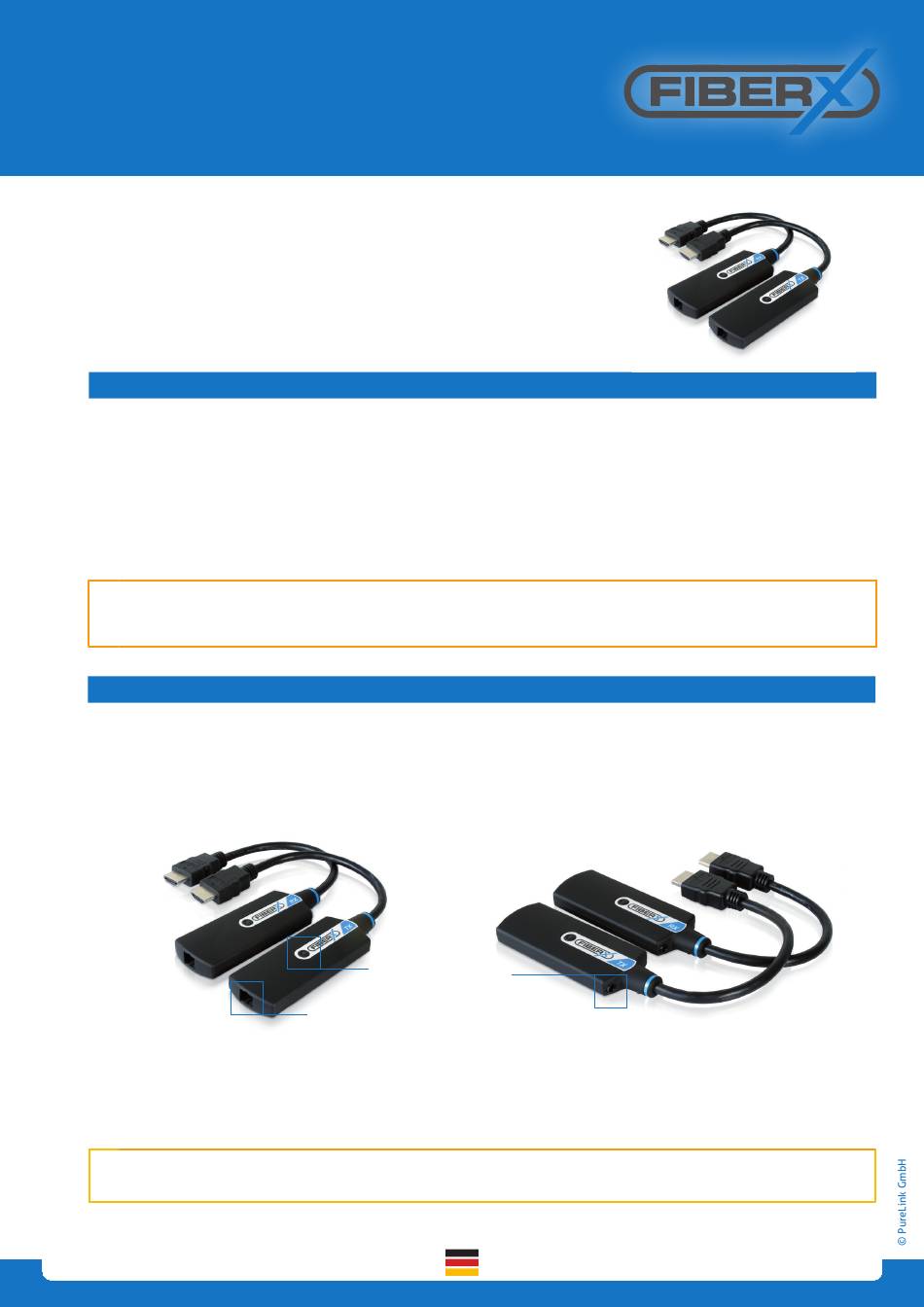

FiberX FX-P320 User Manual

FiberX HDMI Optical Extender Pigtail User Guide
FX-P320
Thank you for purchasing FX-P320
The optical HDMI pigtail extender with HDCP support extends HDMI sig-
nals up to 300m using single strand multi-mode optical fiber cable. It sup-
ports resolutions up to FullHD (1920x1080) and WUXGA (1920x1200).

Package Contents

Please make sure all of the following items are included in the package:
1 FX-P320 Transmitter & Receiver
2 +5V DC Power supply x 2pcs
3 User Guide
If any of the above items are missing, please contact your supplier for support.
Note: Package content may differ if you have placed a special order or placed order from anywhere other than
PureLink GmbH. PureLink GmbH reserves the right to make changes without further notice to a product de-
scribed herein to improve reliability, design, packaging or function.

Installation

Installation Steps:
1. Connect product transmitter to the HDMI port on your source device.
2. Connect product receiver to the HDMI port on your digital display device.
3. Connect Multi-mode SC type 1 Channel standard fiber-optic cable between transmitter and receiver.
4. Connect power adapter to the receiver which has been provided. *Connection of the power
adapter is otional (in case source device cannot supply full voltage from HDMI alone)
5. The Green LED will appear on the transmitter and receiver, after all the product connections
are completed.
Note: The Transmitter and the Receiver modules must be connected to the included power supplies for proper
operation. Transmitter module must be powered on first.
1
K n o w - H o w . Q u a l i t y . D e s i g n .
PureLink GmbH | Von-Liebig-Straße 10 | 48432 Rheine | Germany | Tel.: 0049 (0)5971-800 299-0 | E-mail: info@purelink.de | Internet: www.purelink.de
LED indicator
DC +5V
Power jack
SC type optical port
