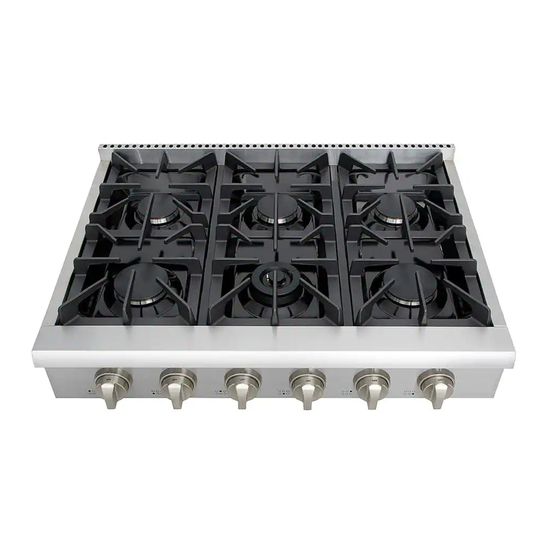

Thor Kitchen HRT3618U User Manual & Installation Manual
Professional gas rangetops
Hide thumbs
Also See for HRT3618U:
- User manual & installation manual (21 pages) ,
- Use & care manual (24 pages) ,
- User manual & installation manual (22 pages)
Subscribe to Our Youtube Channel
Related Manuals for Thor Kitchen HRT3618U
Summary of Contents for Thor Kitchen HRT3618U

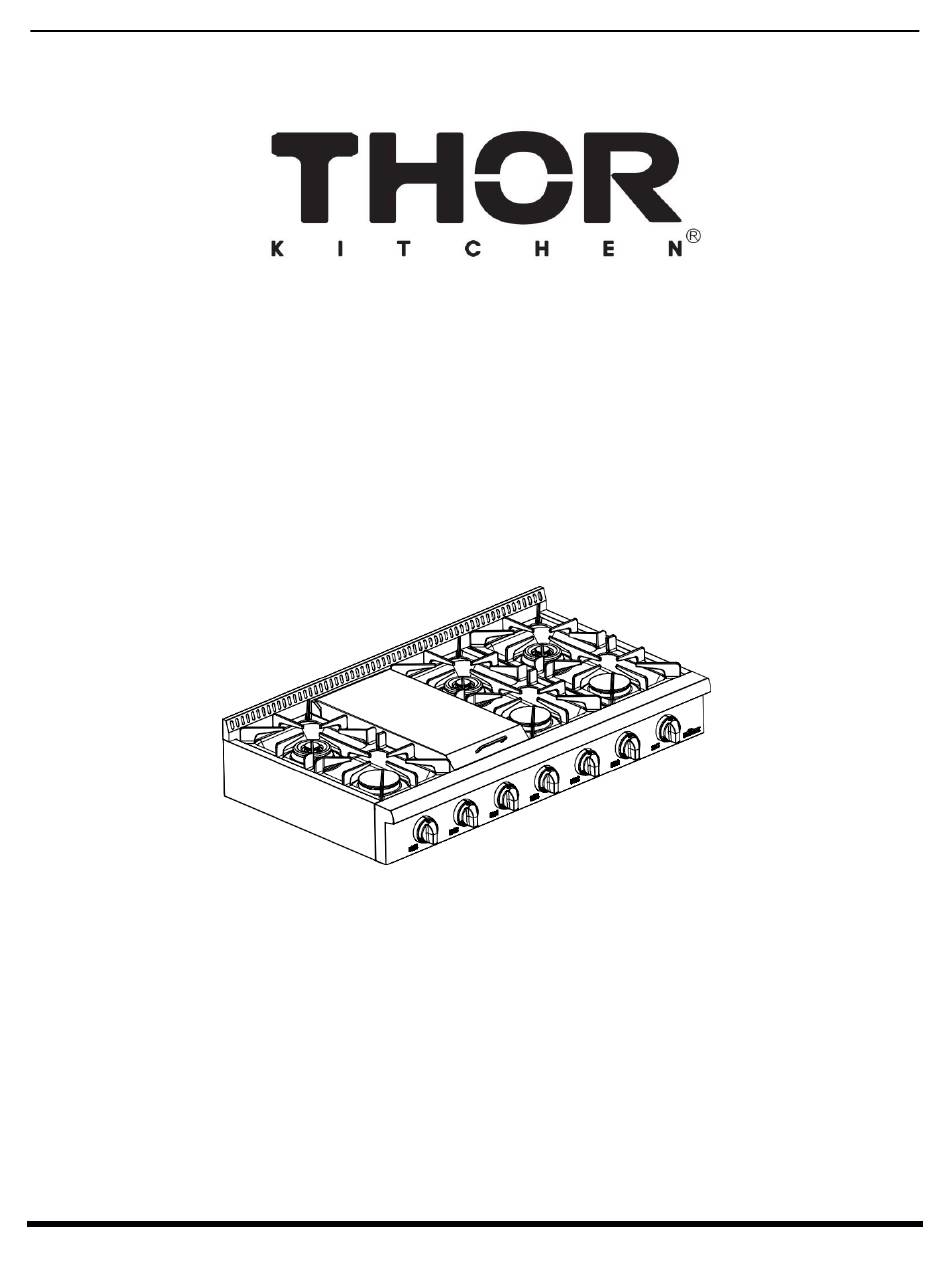

- Page 1 Thor Kitchen Gas Rangetop PROFESSIONAL GAS RANGETOPS USER MANUAL & INSTALLATION GUIDE Models HRT3003U HRT3618U HRT4806U...
-
Page 2: Important Note
Thor Kitchen Gas Rangetop Welcome & Congratulations Congratulations on your purchase of a Thor Kitchen rangetop! We are very proud of our products and are completely committed to provide you with the best cooking experience. Your satisfaction is our top priority. - Page 3 9am – 5pm gas supplier. (M-F / PST) Read this entire installation manual To ensure the safe use of Thor Kitchen carefully prior to installation and save for equipment, please take note of the the local inspector’s reference. Keep this following types of highlighted installation manual for future reference.
-
Page 4: What To Do If You Smell Gas
• A ventilation hood is recommended for use with the Thor Kitchen gas rangetop. • In Massachusetts: Installations and repairs must be performed by a qualified or licensed contractor,... - Page 5 By opening a window, using a ventilating hood or fan can minimized the exposure to these substances. Proper installation Thor kitchen gas rangetop must be properly installed and grounded by a qualified technician in accordance with the National Fuel Gas Code ANSI Z223.1-latest edition, and the National Electrical Code ANSI/NFPA No.70-latest edition.
- Page 6 Thor Kitchen Gas Rangetop WARNING! • DO NOT store any flammable materials near surface burners. The type of materials includes paper, plastic and flammable liquids. • Do not store explosives, such as aerosol cans, on or near the range top •...
- Page 7 Thor Kitchen Gas Rangetop Installation Instructions Be sure the range top is properly installed and grounded by a qualified technician. It is the responsibility of the technician to make certain that your range top is properly installed. Situations cause by improper installation are not covered under the warranty. Any expenses incurred due to such situations will not be paid by the manufacturer of the range top.
-
Page 8: Installation Clearances
Thor Kitchen Gas Rangetop The installation of range tops designed for recreational vehicle installation must conform with state or other codes or, in the absence of such codes, with the standard for recreational vehicles. ANSI A119.2.2–1982 in the U.S.A. or CAN/CGA Z240.4.2 in Canada. - Page 9 Thor Kitchen Gas Rangetop It is the responsibility of the installer to make certain that the range top is properly adjusted at the time of installation. Situations caused by improper adjustments or improper installation are not covered under the warranty. Any expenses incurred due to such situations will not be paid by the manufacturer of the appliance.
- Page 10 Thor Kitchen Gas Rangetop Installation with a range hood Note: Minimum clearance for back wall is 0” with backsplash (backguard) or high shelf. If a range hood is installed above the range top, maintain a 30” (76.2 cm) minimum clearance between the rangetop and the bottom of the range hood.
-
Page 11: Electrical Requirements
Thor Kitchen Gas Rangetop ELECTRICAL REQUIREMENTS Thor Kitchen Gas Rangetop requires 110 volts, 50/60 Hz electrical supply to operate the ignition system. The power cord is a 3-prong grounding plug. The plug must be plugged into a mating outlet. Make sure there is a power outlet within the reach of the range top’s power supply cable (within 36 "/30 cm from the right side of the range top). -
Page 12: Product Dimension
Thor Kitchen Gas Rangetop PRODUCT DIMENSION Make sure the countertop cut-out follows the dimensions given in the illustration below. HRT3003U 30-inch Rangetop Product Dimension Back Layout from the back panel – Regulator is located on the back left of the range top (back... - Page 13 Thor Kitchen Gas Rangetop HRT3618U 36-inch Rangetop Product Dimension Back Layout from the back panel – Regulator is located on the back left of the range top (back right if you see from the front)
- Page 14 Thor Kitchen Gas Rangetop HRT4806U 48-inch Rangetop Product Dimension Back Layout from the back panel – Regulator is located on the back left of the range top (back right if you see from the front)
- Page 15 Thor Kitchen Gas Rangetop...
- Page 16 Thor Kitchen Gas Rangetop...
- Page 17 Thor Kitchen Gas Rangetop RANGETOP INSTALLATION Installation and service must be performed by a qualified installer, service agency or the gas supplier. Remove the rangetop from its package and set aside all burners, burner caps and cooking grates.
- Page 18 This rangetop can be convert for use on Liquid propane gas (LPG). When using this range top on LPG gas, conversion must be made by a qualified installer before attempting to operate the range top on that gas. LP kit can be purchase from authorized Thor Kitchen dealer or contact customer service for further assistant.
- Page 19 Thor Kitchen Gas Rangetop When all connections have been made, be sure all range top controls are in the off position and turn on the main gas supply valve. Check for gas leaks by using a 75% water, 25% dish washing soap solution. If a gas leak is present, shut off gas immediately, tighten all connections, and retest for leaks.
-
Page 20: Surface Burner Ignition
Thor Kitchen Gas Rangetop SURFACE BURNER IGNITION To light the top burners, push and turn the appropriate control knob counterclockwise to the “HI” position. You will hear a clicking noise the sound of the electric spark igniting the burner. Once burner ignition has been achieved, then turn the burner control knob to adjust the desired heat setting. -
Page 21: Troubleshooting Tips
Thor Kitchen Gas Rangetop The surface of the griddle is hot after use. Please allow sufficient time for the griddle to cool prior to cleaning. TROUBLESHOOTING TIPS Symptom Possible Cause Solution Burners will not light. Burner parts or igniters may Check that the burner parts are be wet, dirty or misaligned. - Page 22 Thor Kitchen Gas Rangetop Symptom Possible Cause Solution Burner flame goes out at Low gas pressure. Contact gas company. low setting. Remove obstruction from air Air intake holes around intake holes. burners are obstructed. The flames have A draft or spill has Turn the burners off, cleaning the suddenly gone out.
-
Page 23: Warranty And Service
WARRANTIES AND DURATION 2-year warranty for Parts and Labor. If your Thor Kitchen product is used in other than Single Family Residential Usage, this will be considered commercial usage and product will carry a 6-month parts and labor warranty (6- month Parts Warranty for the products with parts labor warranty only) from the date of purchase. - Page 24 Thor Kitchen Gas Rangetop Cosmetic damage, including chips, dents, scratches or other damage to the finish of your range, unless such damage results from defects in materials or workmanship and is reported to Thor Group within 30 days from the date of purchase.
- Page 25 Whenever you call our customer service at 877- 288-8099 (Thor Kitchen product) for technical information and parts sales in the United States to request service for your appliance, please have your complete model number and serial number ready.
- Page 26 Thor Kitchen Appliance is designed for Single Family Residential Personal Use. If your Thor Kitchen product is used in other than Single Family Residential Personal Usage, this will be considered commercial usage and product will carry a 6-month parts and labor warranty month Parts Warranty for the products with parts warranty only) from the date of purchase.
-
Page 27: Warranty And Product Registration
Please enter the information requested in the spaces provided. Purchaser Purchase Date Model Number Serial No. Where Purchased E-mail Address ote: You must provide proof of purchase to access your Thor Kitchen warranty service. - Page 28 Appendix Rubber Pad Installation on Back Panel. To Prevent the range too close to the wall, there are 2 plastic pads offered with the user's manual, please find the accessories and follow the below steps: 1. check the installation kit packed with manual. 2* screws 2* rubber pad 2.
