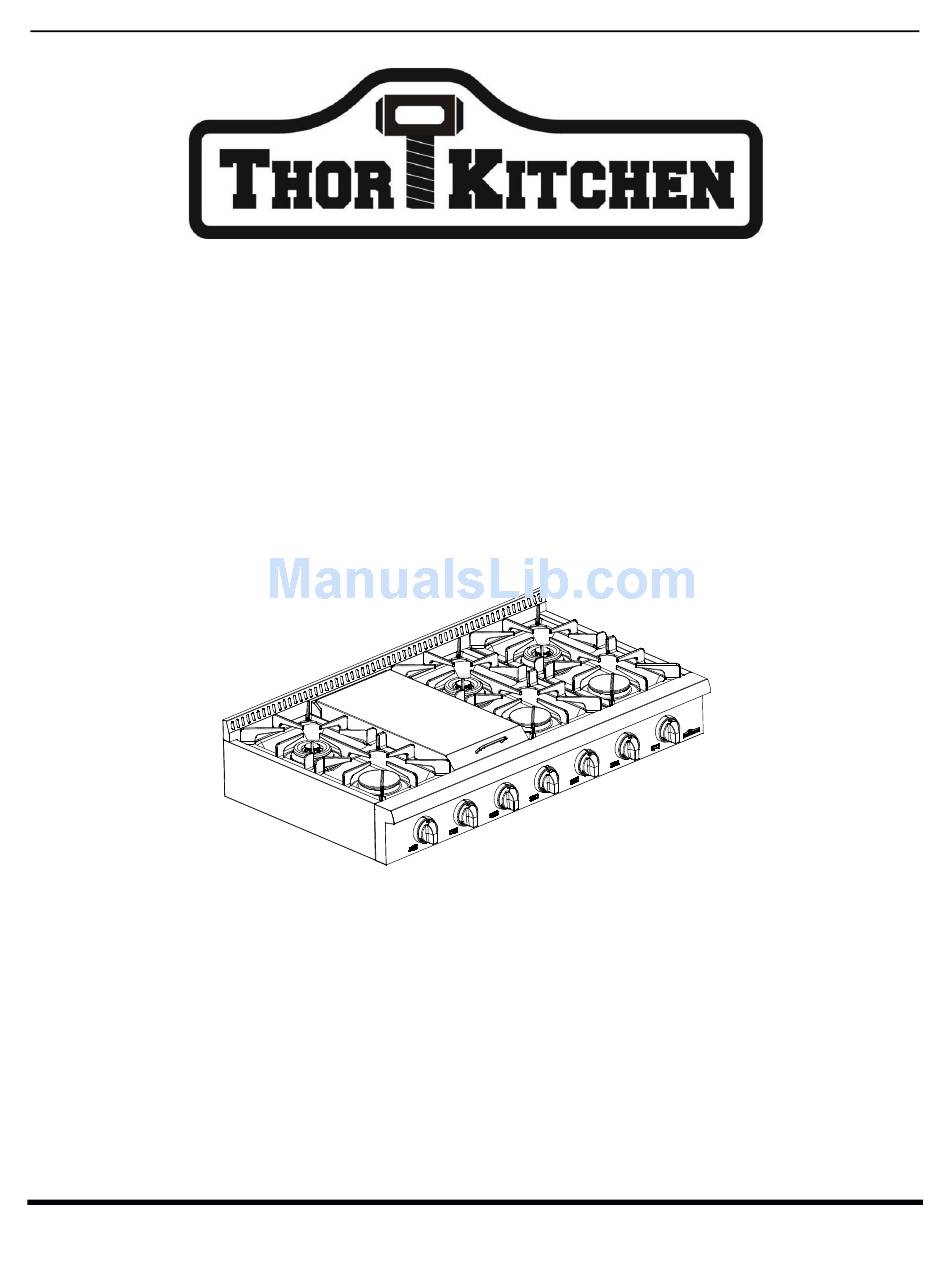

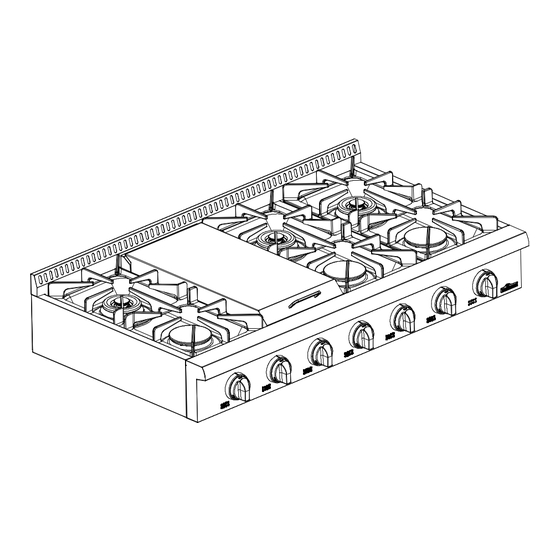

- Page 1 Thor Kitchen Gas Rangetops PROFESSIONAL GAS RANGETOPS USER MANUAL & INSTALLATION GUIDE Models/ HRT3003U HRT3618U HRT4806U...
- Page 2 Thor Kitchen Gas Rangetops Welcome & Congratulations Congratulations on your purchase of a Thor Kitchen rangetop! We are very proud of our products and are completely committed to provide you with the best cooking experience. Your satisfaction is our top priority.
- Page 3 9am – 5pm (M-F / PST) Read this entire installation manual carefully To ensure the safe use of Thor Kitchen prior to installation and save for the local equipment, please take note of the following inspector’s reference.
- Page 4 • A ventilation hood is recommended for use with the Thor Kitchen gas rangetop. • In Massachusetts: Installations and repairs must be performed by a qualified or...
- Page 5 By opening a window, using a ventilating hood or fan can minimized the exposure to these substances. Proper installation Thor kitchen gas rangetop must be properly installed and grounded by a qualified technician in accordance with the National Fuel Gas Code ANSI Z223.1-latest edition, and the National Electrical Code ANSI/NFPA No.70-latest edition.
- Page 6 Thor Kitchen Gas Rangetops WARNING! • DO NOT store any flammable materials near surface burners. The type of materials include paper, plastic and flammable liquids. • Do not store explosives, such as aerosol cans, on or near the range top •...
-
Page 7: Installation Instructions
Thor Kitchen Gas Rangetops Installation Instructions Be sure the range top is properly installed and grounded by a qualified technician. It is the responsibility of the technician to make certain that your range top is properly installed. Situations cause by improper installation are not covered under the warranty. Any expenses incurred due to such situations will not be paid by the manufacturer of the range top. - Page 8 Thor Kitchen Gas Rangetops The installation of range tops designed for recreational vehicle installation must conform with state or other codes or, in the absence of such codes, with the standard for recreational vehicles. ANSI A119.2.2–1982 in the U.S.A. or CAN/CGA Z240.4.2 in Canada.
- Page 9 Thor Kitchen Gas Rangetops GAS RANGETOP SPECIFICATIONS Installation without a range hood Note: All the measurement was based on 24” (61 cm) deep cabinet This range top may be installed directly adjacent to existing 36” (91.4 cm) high base cabinets.
- Page 10 Thor Kitchen Gas Rangetops Installation with a range hood Note: Minimum clearance for back wall is 0” with backsplash (backguard) or high shelf. If a range hood is installed above the range top, maintain a 30” (76.2 cm) minimum clearance between the rangetop and the bottom of the range hood.
- Page 11 Thor Kitchen Gas Rangetops ELECTRICAL REQUIREMENTS Thor Kitchen Gas Rangetop requires 110 volts, 50/60 Hz electrical supply to operate the ignition system. The power cord is a 3-prong grounding plug. The plug must be plugged into a mating outlet. Make sure there is a power outlet within the reach of the range top’s power supply cable (within 36 "/30 cm from the right side of the range top).
- Page 12 Thor Kitchen Gas Rangetops PRODUCT DIMENSION Make sure the counter top cut-out follow the dimensions given in the illustration below. The cabinetry material below rangetop must be non-combustible material.
- Page 13 Thor Kitchen Gas Rangetops RANGETOP INSTALLATION Installation and service must be performed by a qualified installer, service agency or the gas supplier. Remove the rangetop from its package and set aside all burners, burner caps and cooking grates. ...
- Page 14 This rangetop can be convert for use on Liquid propane gas (LPG). When using this range top on LPG gas, conversion must be made by a qualified installer before attempting to operate the range top on that gas. LP kit can be purchase from authorized Thor Kitchen dealer or contact customer service for further assistant.
- Page 15 Thor Kitchen Gas Rangetops Any opening in the wall behind the appliance and in the floor under the appliance shall be sealed. GUIDELINES FOR USING RANGE TOP BURNERS There are dual burners have the same low turn-down setting (SIM) for gentle simmering (620 BTU/hr).
- Page 16 Thor Kitchen Gas Rangetops SURFACE BURNER IGNITION To light the top burners, push and turn the appropriate control knob counter clockwise to the “HI” position. You will hear a clicking noise the sound of the electric spark igniting the burner. Once burner ignition has been achieved, then turn the burner control knob to adjust the desired heat setting.
- Page 17 Thor Kitchen Gas Rangetops TROUBLESHOOTING TIPS Symptom Possible Cause Solution Burners will not light. Burner parts or igniters may be Check that the burner parts are wet, dirty or misaligned. clean, dry and correctly assembled. Check that the igniters are clean and dry.
- Page 18 Thor Kitchen Gas Rangetops Symptom Possible Cause Solution Burner flame goes out at Low gas pressure. Contact gas company. low setting. Remove obstruction from air intake Air intake holes around holes. burners are obstructed. The flames have suddenly A draft or spill has Turn the burners off, cleaning the gone out.
- Page 19 Thor Kitchen Gas Rangetops WARRANTY AND SERVICE This product has been manufactured by Thor group. Thor Group disclaims all express warranties except for the following: This warranty applies to products purchased and located in the United States. Products purchased or located outside this area are excluded.
- Page 20 Thor Kitchen Gas Rangetops 4. Costs associated with the removal from your home of your range for repairs. This range is designed to be repaired in your home and only in-home service is covered by this warranty. 5. Damage resulting from misuse, alteration, accident, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical, or use of consumables or cleaning products not approved by Thor Group.
- Page 21 The model and serial number can be found on the product data plate. Please enter the information requested in the spaces provided. Purchaser_____________________________ Purchase Date____________________________ Model Number_________________________ Serial No.________________________________ Where Purchased ______________________ E-mail Address_______________________________________________________________________ ote: You must provide proof of purchase to access your Thor Kitchen warranty service.
