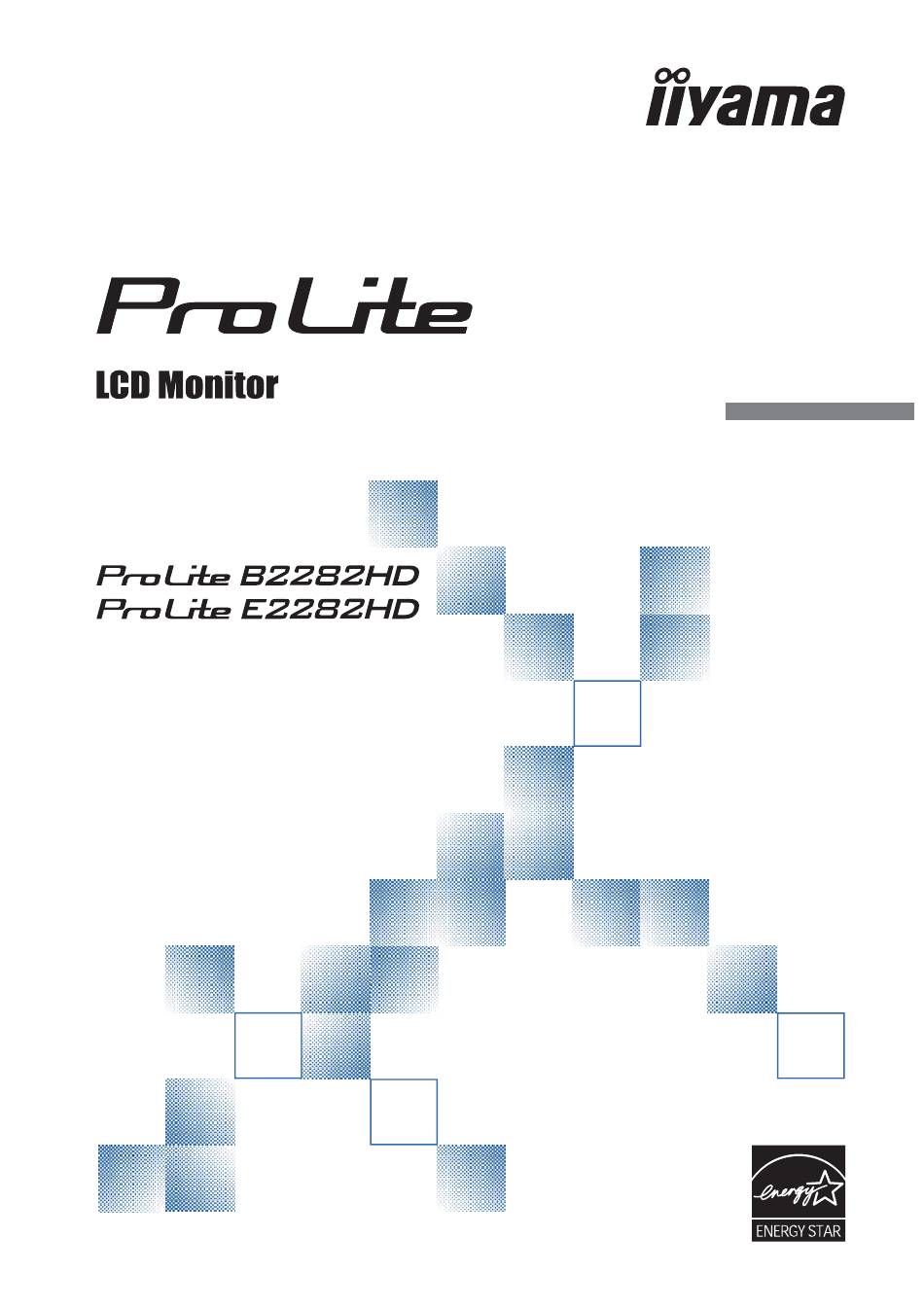

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2282H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE : ProLite B2282HD ....6 FITTING AND REMOVAL OF BASE : ProLite E2282HD ....7 CONTROLS AND CONNECTORS : ProLite B2282HD....8 CONTROLS AND CONNECTORS : ProLite E2282HD....9... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Fitting And Removal Of Base : Prolite B2282Hd
FITTING AND REMOVAL OF BASE : ProLite B2282HD Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 11: Fitting And Removal Of Base : Prolite E2282Hd
FITTING AND REMOVAL OF BASE : ProLite E2282HD Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors : Prolite B2282Hd
CONTROLS AND CONNECTORS : ProLite B2282HD <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (MENU) Scroll Up Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) Auto Button (AUTO) VGA(D-sub) mini 15pin Connector (D-SUB) DVI-D 24pin Connector (DVI-D) AC Connector (... -
Page 13: Controls And Connectors : Prolite E2282Hd
CONTROLS AND CONNECTORS : ProLite E2282HD <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu / Select Button (MENU) Scroll Up Button ( Scroll Down / ECO Mode Button ( Exit Button (EXIT) Auto Button (AUTO) VGA(D-sub) mini 15pin Connector (D-SUB) DVI-D 24pin Connector (DVI-D) AC Connector (... -
Page 14: Connecting Your Monitor : Prolite B2282Hd
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 15: Connecting Your Monitor : Prolite E2282Hd
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 16: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 29: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE : ProLite E2282HD For optimal viewing it is recommended to look at the full face of the monitor. ... -
Page 17: Adjusting The Height And The Viewing Angle : Prolite B2282Hd
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite B2282HD For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. ... -
Page 18: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 29. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 21 for SCREEN ADJUSTMENTS. -
Page 19: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Pixel Clock and Phase Auto Adjust * Direct automatically. * For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 21 for SCREEN ADJUSTMENTS. - Page 20 Geometry Only Analog Input Adjustment Item Problem / Option Button to Press Too left H. Position Too right Too low V. Position Too high Too narrow Pixel Clock Too wide Phase To correct fl ickering text or lines Color* Adjustment Item Problem / Option Button to Press Bluish white...
- Page 21 Language Adjustment Item Problem / Option Button to Press English English Nederlands Dutch Japanese Français French Deutsch German Simplifi ed Chinese Language Russian Italiano Italian Czech Polski Polish Ĉesky Español Spanish Recall Adjustment Item Problem / Option Button to Press Factory-preset data is restored.
- Page 22 Full Expansion display Display Mode Aspect Expansion display of Aspect iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is Off turned on. * Adv. Contrast adjustments are disabled when i-Style Color is activated.
- Page 23 Input Select Adjustment Item Problem / Option Button to Press D-sub Select the Analog input. AUTO* Select the Digital (DVI) input. Input Select Direct D-sub Select the Analog input. Manual* Select the Digital (DVI) input. It will be selected automatically when the selected signal is not available. NOTE Input source is fixed, not selected automatically when D-sub and DVI which are selected.
- Page 24 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. ECO Mode : Press the Button when the Menu is not displayed. On : Brightness of back light is reduced. Off...
-
Page 25: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 26 Press the AUTO Button. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 27 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Pixel Clock may not be adjusted correctly. ...
-
Page 28: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 29: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 30: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 26 RECYCLING INFORMATION... -
Page 31: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite B2282HD Size Category 22" Panel Technology TN Panel Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time... -
Page 32: Specifications : Prolite E2282Hd
SPECIFICATIONS : ProLite E2282HD Size Category 22" Panel Technology TN Panel Size Diagonal: 21.5" (54.7cm) Pixel pitch 0.248mm H × 0.248mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 5ms (Typical) Display Colours... -
Page 33: Dimensions : Prolite B2282Hd
DIMENSIONS : ProLite B2282HD 505.0mm/19.9” 56.5mm/2.2” 478.0mm/18.8” 250.0mm/9.8” ) : Maximum adjustment range DIMENSIONS : ProLite E2282HD 505.0mm/19.9” 478.0mm/18.8” 56.5mm/2.2” 212.0mm/8.4” COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 35.156kHz 56.250Hz 36.000MHz SVGA 800 ×...
