Summary of Contents for Pass INT-60

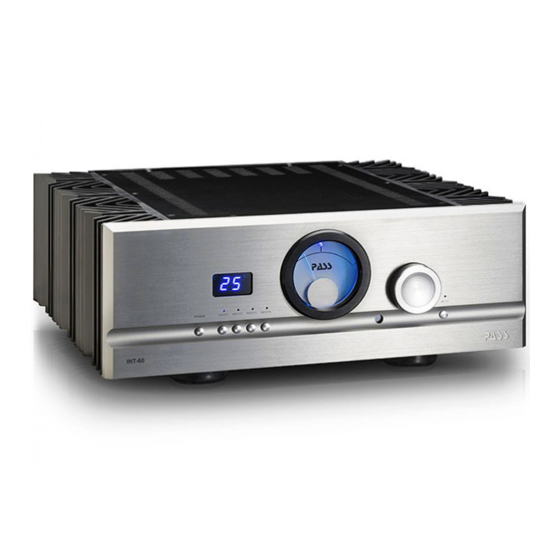

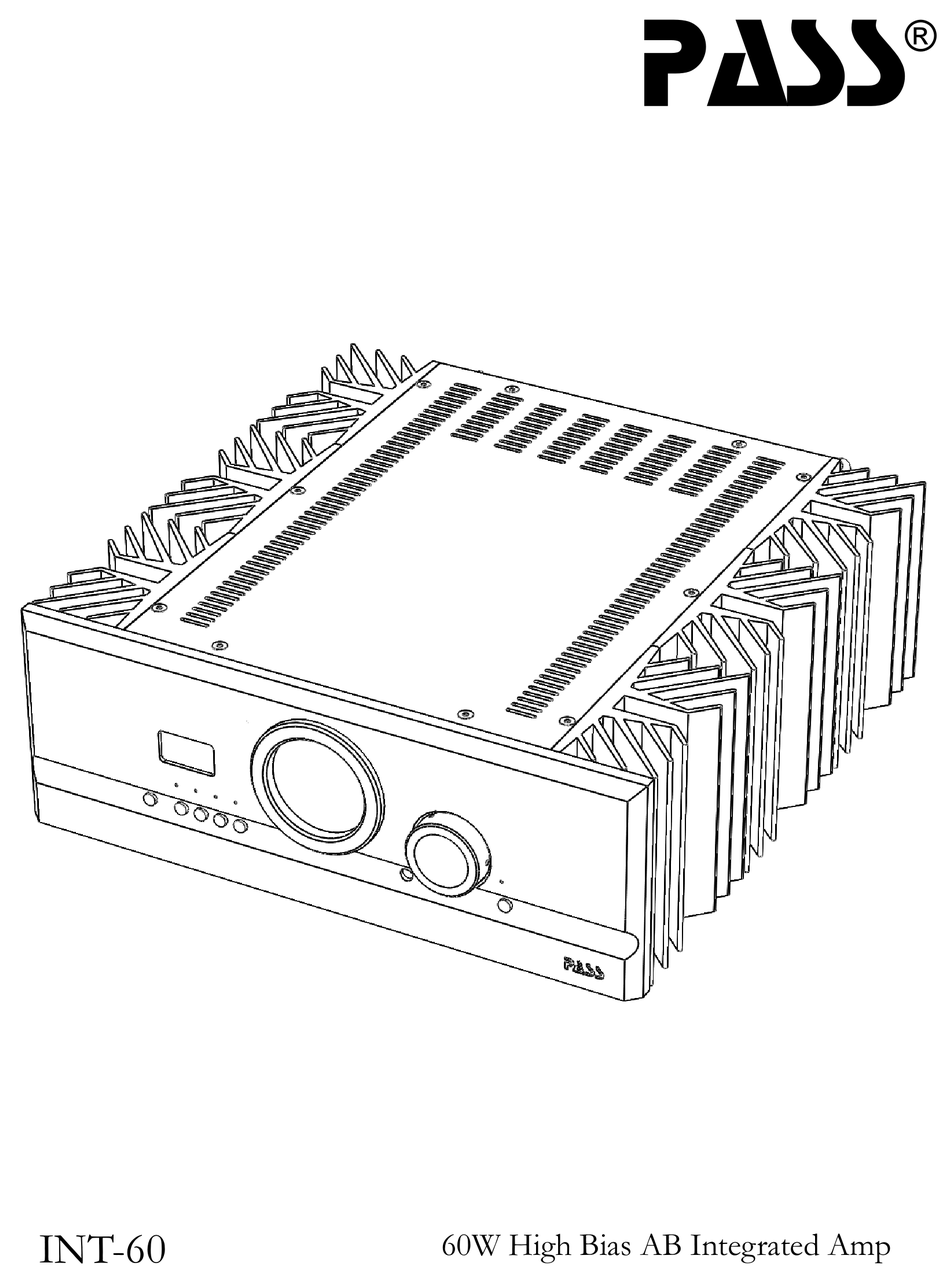

- Page 1 PASS ® INT-60 60W High Bias AB Integrated Amp...
- Page 2 Grounding: Adequate precautions should be taken so that the grounding provisions built into an electrical product are never defeated. Power Cords: Pass Labs provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an after-market product we urge you to choose one that is fully safety rated by the necessary local authority.
- Page 3 Quick Setup: Unpacking your INT-60 The INT-60 is heavy - please make sure you have help to remove the INT-60 from the packing and to place the amp where you want it. Included in the box are a remote control and a power cord. You will need these so don’t throw them away with the empty box.
- Page 4 Left Jumper must be used with single-ended input Signal Gnd No user serviceable parts inside. Pass Laboratories, Auburn, CA 95602 ~ AC Mains 2. Preamp outputs (RCA & XLR) 1. Right Speaker Connection 3. AC Power Switch 4. AC Mains Inlet. 5.
- Page 5 The volume level can be set by using the volume control knob on the face plate of the volume buttons on the remote Mute: The INT-60 can be muted from the front panel or remote. When in MUTE the display shows “00” and the LED above the MUTE button on the faceplate will be on.
- Page 6 Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for international markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada.
- Page 7 Pass Laboratories, 13395 New Airport Rd., Suite G., Auburn, CA 95602 Phone: 530.878.5350, Fax: 530.878.5358, Web: www.passlabs.com...
