Page 2
The product MUST be connected to a MAINS socket outlet with a protective earthing connection. Power Cords: Pass Labs provides a power supply cord that meets all legislated requirements for the market in which the product was originally sold. If you choose to substitute an af- ter-market product we urge you to choose one that is fully safety rated by the necessary local authority.
Page 3

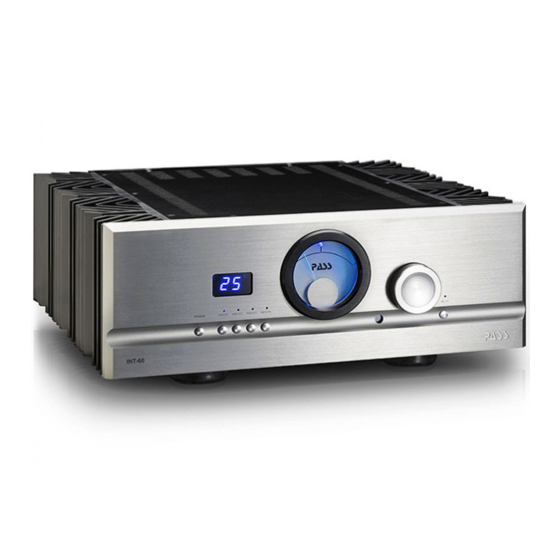

That time has come with a new series of integrateds. The new INT-60 builds on the point 8 series power supply and output stages. It uses the same effi cient toroidal design in the power supply with both an electrostatic and Mu metal shield along with vacuum impregnating and epoxy fi...
Page 4
Quick Setup: Unpacking your INT-60 The INT-60 is heavy - please make sure you have help to remove the INT-60 from the packing and to place the amp where you want it. Included in the box are a remote control and a power cord. You will need these so don’t throw them away with the empty box.
Page 5
Never defeat the safety purpose of the power cord. Operation: In use the INT-60’s front panel controls and alphanumeric display are quite straight forward, and intuitive. We encourage you to become familiar with their operation prior to establishing any input connections with this unit.
Page 6
Display: is not used with the INT-60. This is used on other Pass products and has no effect on this product. Ext amp on: is not used with the INT-60. This is used on other Pass products and has no effect on this product.
Page 8
Use of other than approved fuses, may invalidate your product warranty and result in product damage. How to replace the fuse: INT-60 Specs: Inputs: Four(4) 2 XLR/RCA + 2 RCA Gain...
Page 9
Product with altered or missing serial numbers will be suspect as counterfeit or stolen product. Pass Laboratories will not repair or in any way indemnify any counterfeit or cloned product. Pass Laboratories does not offer products in voltages intended for international markets either to authorized Pass Labs dealers or to third parties located in the United States or Canada.
Page 10
® pass Pass Laboratories Inc., 13395 New Airport Rd., Suite G, Auburn, CA 95602 530.878.5350 passlabs.com...
