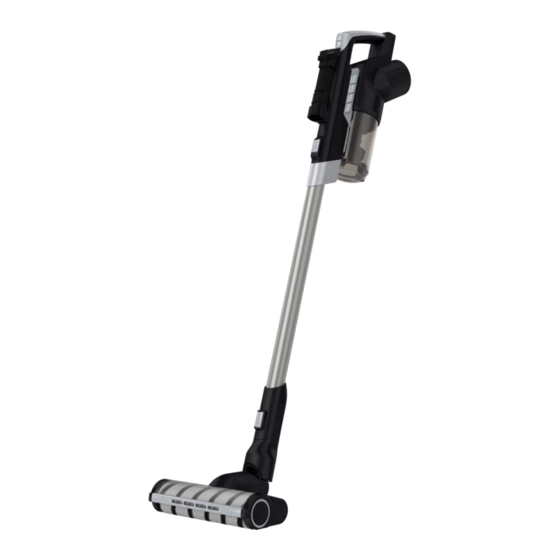

- Page 1 INSTRUCTION MANUAL Model No: TT-AK47 www.zline-world.com...
- Page 3 100-240V～50/60Hz, 22.2V ▋Safety advices & cautions Read all the instructions carefully before using the vacuum cleaner This vacuum cleaner can only be used on dry purpose only. Water, liquid and other wet objects are prohibited to be sucked into the product. Do not water or spill liquid onto the vacuum cleaner.
-
Page 4: Parts List
▋PARTS LIST 1. ON/OFF 2. SPEED CONTROL BUTTON 3. BATTERY INDICATOR 4. MAIN BODY RELEASE BUTTON 5. ELECTRIC TUBE 6. BRUSH RELEASE BUTTON 7. POWER BRUSH 8. BATTERY UNIT RELASE BUTTON 9. DUST TANK 10. DUST RELEASE BUTTON 11. MOTOR UNIT 12. - Page 5 ▋Assembling ·Assembly dust cup unit 1. Put filters into dust cup, twist the cone and match cone’s pins into the grooves inside the dust cup. 2. Insert filter onto the cone ·Assembly dust tank with motor unit Push the dust cup and rotate it till “Click”sound heard ·Assemble main unit with battery unit 1.
- Page 6 1. Insert upper end of power brush into lower end of the tube, till a click sound heard 2. Insert the upper end of the tube into the lower end of battery unit a click sound heard ▋How to assemble the accessories ·Accessory assembled into the main unit 2 in 1 tool just insert into the main unit hole and make them inserted firmly...
- Page 7 USING ·ON/OFF PRESS THE ON/OFF BUTTON AND SPEED CONTROL BUTTON TO START THE VACUUM CLEANER, PRESS THE BUTTON AGAIN TO ADJUST THE VACUUM CLEANER WORK TO HIGH/LOW SPEED. ·ACCESSORY : 2 IN 1 TOOL 1. Insert 2 in 1 tool into main unit, then push the dusting head back.
-
Page 8: Clean And Store
be turned on , when fully charged, three LED lights will be turn on. When the battery is going to be power off, please charged it right now with adaptor. ▋Clean and store ·Empty dust 1. Press the motor unit release button to divide motor unit from battery unit. 2. -
Page 9: Technical Data
Attention: after long time use, the roll may stick hair or other masses which needs to be cleaned in time in order to keep the vacuum cleaner working efficiently. TECHNICAL DATA MODEL NO. TT-AK47 NOM. VOLTAGE 22.2V NOM. INPUT POWER 100W INPUT OF ADAPTOR 100-240V～50/60Hz，0.5A...
