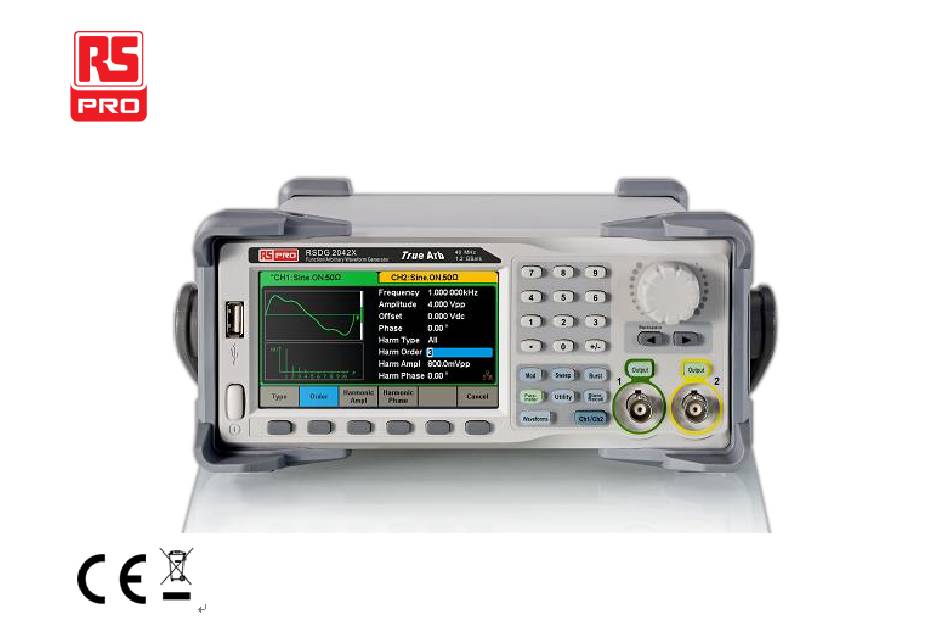

- Page 1 Quick Start RSDG2000X Function/Arbitrary Waveform Generator...
-
Page 3: General Safety Summary
General Safety Summary Carefully read the following safety precautions to avoid any personal injuries or damages to the instrument and any product connected to it. To avoid potential hazards, please use the instrument as specified. Only the qualified technician can service the instrument. Avoid fire or personal Injury. -
Page 4: Adjust The Handle

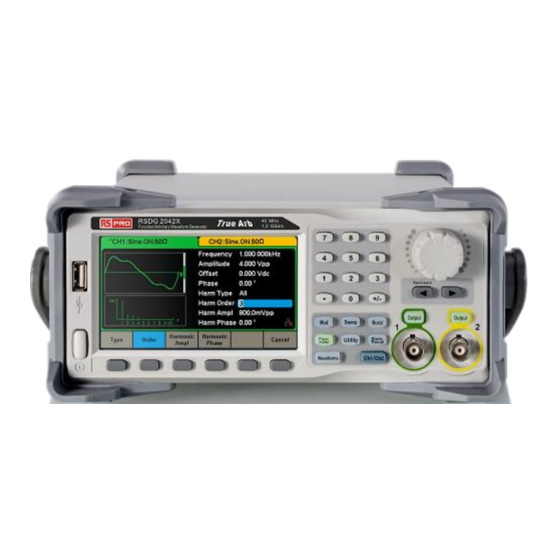

Adjust the Handle When using the instrument, users can adjust the handle to a position which makes it easier to operate and observe. Carrying Position Horizontal Position Figure 1 Adjust the Handle... - Page 5 The Front Panel...
- Page 6 1. Power Key This key is used to turn on/off the generator. When the power key is off, it is in the power off state. 2. USB Host The generator supports U-Disk using FAT format. It’s used to read waveforms or state files from a U-Disk or store the current state of the instrument to the U-Disk. Users can update the firmware through U-Disk.
- Page 7 7. Channel Control Area CH1 Control/Output Key Output key on the left is used to turn on/off CH1output. The nominal output impedance of the BNC connector is 50Ω. When pressing (the key backlight turns on), the connector outputs waveform according to the current configuration ofCH1. Output CH2 Control/Output Key Output...
- Page 8 9. Function Keys ----Modulation This key is used to enable the modulation screen and allow for several types of modulation. It generates AM, DSB-AM, FM, PM, ASK, FSK and PWM modulated signals. •It supports “Internal” and “External” modulation sources. •The corresponding key backlight will turn on when this function is selected. Sweep ----Sweep This key is used to generate sweeping frequency signals of Sine, Square, Ramp and Arbitrary.
- Page 9 Utility ----Utility Functions and System Settings This key is used to set system parameters and check version information. •Press this key and then press the help soft key to obtain built-in help information about the product. •The corresponding key backlight will turn on when this function is selected. Store/Recall ----Store and Recall Through this key, users can store/recall the instrument’s state or arbitrary waveform data edited by users.
- Page 10 Waveforms ---- Ramp Provide ramp waveform output which ranges from 1μHz to 1MHz. Waveforms •Back light of will turn on when this function is selected. •“Frequency/Period”, “Amplitude/High level”, “Offset/Low level”, “Phase” and “Symmetry” of the ramp waveform can be adjusted. Waveforms ---- Pulse Provide pulse waveform output which ranges from 1μHz to 25MHz.
-
Page 11: The Rear Panel
The Rear Panel Figure 3 Rear Panel... - Page 12 Counter BNC connector. The input impedance is 1MΩ. This connector is used to accept the signal measured by the frequency counter. Aux In/Out BNC connector. The function of this connector is determined by the current work mode of the instrument. •Sweep/Burst trigger signal input port of external trigger.
- Page 13 AC Power Supply Input The generator can accept two different types of AC input power. AC power: 100-240V, 50/60Hz or 100-120V, 400Hz Fuse: 1.25A, 250V USB Device Used when connecting the instrument to an external computer to allow waveform editing (such as EasyWave) and remote control. LAN Interface Through this interface, the generator can be connected to your computer or network for remote control.
-
Page 14: Touch Screen Display
Touch Screen Display The generator can only display parameters and waveform of one channel at a time. The picture below shows the interface when CH1 chooses AM modulation of sine waveform. The information displayed may vary depending on the function selected. The entire screen of the generator is a touch screen. - Page 15 2. Channel Status Bar Indicate the selected status and output configuration of the channels. Touch this area of the screen to switch to the corresponding channel. If you touch again, the short cut menus of function keys will be recalled: Mod、Sweep、Burst、Parameter、Utility and Store/Recall. 3.
-
Page 16: Use Built-In Help System
Use Built-In Help System To obtain built-in help information of the product, please press Utility key first, then press Page 1/2 and Help, use the knob to choose the finally press Select to obtain help information. help item youwant, The common help information is listed as the following: 1.System information. - Page 17 Introduction of EasyWave Arbitrary editing software EasyWave provides 9 standard waveforms: Sine, Square, Ramp, Pulse, ExpRise, ExpFall, Sinc, Noise and DC, which meets most engineers’ basic needs. In addition, it provides several ways of manual drawing, point-to-point line drawing and arbitrary point drawing. EasyWave allows for fast and easy creation of complex waveforms.
