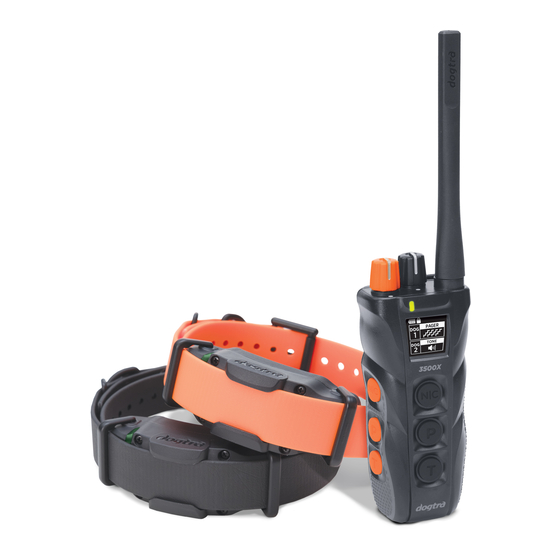

- Page 1 3500X EXPANDABLE TO 2-DOG SYSTEM Owner's Manual Please read this manual thoroughly before operating the 3500X training e-collar.
- Page 2 Dogtra product or other property. PRODUCT SAFETY Training Methods Dogtra products may be used with a variety of training methods. However, each dog may have a different reaction to training methods and to Dogtra products. Closely observe your dog when determining the right training method to use with your Dogtra product.
- Page 3 Consult your physician or medical device maker before using your medical device with a Dogtra product. If you think that your Dogtra product is interfering with your pacemaker, defibrillator, or other medical device, stop using the Dogtra product.
-
Page 4: Table Of Contents
CONTENTS AT A GLANCE ..............MAIN FEATURES ............. OVERVIEW ............... UNDERSTANDING YOUR TRAINING SYSTEM TURNING THE 3500X ON/OFF ......TRANSMITTER BUTTON FUNCTION ....ANTENNA HINGE ............. RECEIVER FITTING ..........FINDING THE RIGHT STIMULATION ....MAXIMIZING THE DISTANCE ........ LED INDICATOR ............CHARGING THE BATTERY ........ -
Page 5: At A Glance
Belt Clip Test Light Manual Optional Accessories Auto Charger Dogtra’s auto chargers are designed for use with a 10 volt car outlet. European Charger Dogtra’s European chargers are designed for use with a 230 volt AC electrical outlet. To purchase accessories, please visit www.dogtra.com or... -
Page 6: Main Features
MAIN FEATURES • 8 stimulation levels/Selector Dial for quick intuitive control • Two-dog model allows control of two different dogs from one transmitter • 1.5-mile range • Two different stimulation types - Nick & Constant • High Performance Pager (HPP) vibration •... -
Page 7: Overview
OVERVIEW 1st Dog Selector Dial 2nd Dog Selector Dial 2nd Dog Nick/ 1st Dog Nick/ Constant Constant 1st Dog Pager 2nd Dog Pager 2nd Dog Tone 1st Dog Tone 3500X Transmitter... - Page 8 Antenna Safety Stimulation Level Lock Toggle Switch OLED On/Off Button & Screen OLED Screen Button Battery Charging Receptacle & Rubber Plug 3500X Transmitter...
- Page 9 Contact Points Collar Strap Battery Charging Receptacle & LED Indicator Light Rubber Plug On/Off Button 3500X Receiver...
-
Page 10: Understanding Your Training System
UNDERSTANDING YOUR TRAINING SYSTEM 1. Turning the 3500X On/Off To turn the handheld transmitter on, hold down the button on the right side of the transmitter until the OLED screen illuminates. To turn the transmitter off, hold down the same button on the right side of the transmitter until the OLED screen shuts off. -
Page 11: Transmitter Button Function
2. Transmitter Button Function 1) Safety Stimulation Level Lock Toggle Switch Lock Stimulation Unlock Stimulation Locked Screen Unlocked Screen... - Page 12 2) Button 2nd Dog 1st Dog Nick/ Nick/ Constant Constant Vibration Vibration Tone Tone Nick/Constant Button There are three buttons each on the front and left side of the transmitter. The Nick/Constant button is the top button on each side of the transmitter. When the button is pressed quickly, the Nick function is activated and the receiver emits a single rapid pulse of electrical stimulation.
- Page 13 HPP Vibration Button The middle button is the HPP Vibration button for each side of the transmitter. Pressing it will give a vibration for as long as the button is pressed, for up to 12 seconds. Button not pressed Button pressed (Pager) Tone Button The Tone button is the bottom button on each side...
-
Page 14: Antenna Hinge
3. Antenna Hinge The Antenna Hinge is an accessory that extends the original range that can be lost from touching the user's body or interference from surroundings. This accessory also bends in a 180 degree direction in order to prevent antenna breakage from high physical activity or from bending over. -
Page 15: Receiver Fitting
If the receiver is too loose, the contact will not be consistent and cause the corrections to be inconsistent. Dogtra uses surgical stainless steel contact points and anti-microbial plastic to protect the dog’s skin. -
Page 16: Finding The Right Stimulation
Attention! Leaving the receiver in the same location on the dog’s neck for an extended period of time can cause skin irritation. If the dog is to wear the e-collar for long periods, occasionally reposition the receiver so that the contact points are moved to a different location on the dog’s neck. -
Page 17: Maximizing The Distance
6. Maximizing the Distance The 3500X has a 1.5-mile range. Depending on the way you use your transmitter, the transmitter range may vary. To get the greatest range, hold the transmitter away from your body and avoid touching the antenna. Keep your unit properly charged for maximum signal strength. -
Page 18: Led Indicator
7. LED Indicator The LED indicator flashes every 4 seconds when the receiver is on and ready for use. The LED indicator will blink on both the transmitter and the receiver when the transmitter buttons are pressed. The LED indicator color indicates the battery life level. Green = Full charge Amber = Medium charge Red = Needs charge... -
Page 19: Charging The Battery
NOTE 2: The unit has a partial charge when it leaves the Dogtra facility. Upon receipt of the system, be sure to give it a full 2-hour initial charge before the first use away from any flammable substances. - Page 20 Follow the steps below to charge your system: 1. Open the rubber plugs on the battery charging receptacles and plug in the charging cable. 2. Plug the charger into a 120-volt wall outlet or, if using the auto charger, plug into a cigarette lighter only for lithium polymer batteries (use a 220 volt European charger for Europe).
-
Page 21: Handheld Transmitter Oled
9. Handheld Transmitter OLED Safety Stimulation Level Lock Battery 1st Dog Stimulation 2nd Dog Level The OLED screen indicates the stimulation level on the screen ranging from (1-8). The battery life indicator shows: 3 bars = full charge 2 bars = medium charge 1 bar = needs charge The battery life indicator only shows the remaining charge of your transmitter. - Page 22 Care for OLED Transmitters in Cold Temperature In cold temperatures (10°F or below), the Organic Light- Emitting Diode (OLED) on your transmitter may be dim or slow to respond. Wait until the display becomes visible before selecting any training level. Even though the OLED screen might be dim or slow to respond when you push the Nick or Constant button, the transmitter will still function properly.
-
Page 23: Attaching The Belt Clip
10. Attaching the Belt Clip Follow the instructions below to attach the included belt clip to the transmitter. 1. Align the belt clip to the grooves on the back of the transmitter. 2. With a firm grip, screw on the belt clip's Phillips head screws with a screwdriver. -
Page 24: Using The Test Light
11. Using the Test Light 1. Turn on the receiver by pressing the on/off button. The indicator light will come on for a moment then blink once every 4 seconds, showing that the receiver is ready to use (the receiver needs to be charged if the indicator light is red). - Page 25 4. Watch the test light as you push the Nick button on the transmitter. It should light up for just a moment. The higher the intensity, the brighter the test light will 5. Watch the test light as you push the Constant button on the transmitter.
-
Page 26: General Training Tips
GENERAL TRAINING TIPS Getting Started With Your 3500X Your dog must know some basic obedience commands before beginning training with the 3500X. A dog learns by first being shown a command, followed by lots of repetition over an extended period. As the dog becomes proficient at these commands, the trainer can introduce distractions and different locations to strengthen them. - Page 27 Animals (and humans) perform better in a less stressful environment. For more training information, please visit our website at www.dogtra.com.
-
Page 28: Maintenance
Troubleshooting If the unit is malfunctioning, please refer to the “Troubleshooting Guide” before sending it to Dogtra for service. If you have any questions or concerns, you may email them to info@dogtra.com, or call customer service... -
Page 29: Troubleshooting Guide
TROUBLESHOOTING GUIDE 1.My dog is not reacting to the receiver. - Make sure the receiver and transmitter are turned on by holding down the on/off button on each device until the LED lights up. - Be sure the collar strap is tight enough so both contact points are touching the dog’s skin. - Page 30 If the dog is in salt-water, be sure to rinse the receiver and charging port with clean water. - If the above does not resolve your issues, contact Dogtra customer service at info@dogtra.com or (888)-811-9111.
- Page 31 - For Dogtra units over two years old from the purchase date, the batteries may need to be replaced. You can replace them yourself by contacting Dogtra. But, damages incurred to the unit due to improper battery installation are not covered under any warranty and any other unauthorized servicing or tampering with the unit voids your limited lifetime warranty.
-
Page 32: Warranty And Repair Information
1+1 Year Extended Warranty Except as otherwise provided, Dogtra warrants to the original retail purchaser (“You”) that your Dogtra product shall be free of defects in materials and workmanship for a period of one (1) year from the date of purchase (“Original Warranty”). As a special promotion, Dogtra... - Page 33 MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Limitation of Remedies Dogtra’s liability is limited to the cost of repair or replacement of the Dogtra product under the Original Warranty or Extended Warranty. Any claim or action to enforce the Original and/or Extended Warranties must be commenced within thirty (30) days of such warranty’s expiration for...
- Page 34 Dogtra products. To register your product, visit www.dogtra.com/product-registration. If your product is not registered with Dogtra, You will be required to provide a receipt or other proof purchase (as provided above) to qualify for warranty service.
