Summary of Contents for Dogtra 200C
- Page 2 By Dogtra Remote Controlled Dog Training Collars Owner's Manual Please read this manual thoroughly before operating the Dogtra 200C training collar.
- Page 3 Dogtra e-collars are intended for the sole purpose of behavior modification of dogs. They are NOT intended for human use or use on other animals. Dogtra Company does not assume any liability for the improper use of a Dogtra e-collar. Aggressive dogs...
- Page 4 Training Methods E-collars can be used with many different methods. If you have any concerns in the training methods provided by Dogtra, consult with a dog training professional.
-
Page 5: Table Of Contents
At a Glance ............Main Features of the 200C ........Overview ............Understanding Your Training System 1. How to Turn the 200C On/Off ......2. How the Transmitter Buttons Work ..... 3. Collar Fitting ..........4. How to Find the Right Stimulation ...... -
Page 6: At A Glance
Optional accessories Belt clip A belt clip is available for the handheld transmitter. Field auto charger Dogtra’s field auto chargers are designed for use with a 5-volt car outlet. European charger Dogtra’s European chargers are designed for use with a 230V AC electrical outlet. -
Page 7: Main Features Of The 200C
Main Features of the 200C Rheostat/Volume Dial with Stimulation Levels 0-100 Reduced Size Receiver 1-Handed Operation Non-Stimulating High Performance Pager Enhanced Contact Points Fully Waterproof 2-Hour Rapid Charge Batteries Nick and Constant Stimulation 1/2-Mile Range For Dogs as Small as 10 lbs. -
Page 8: Overview

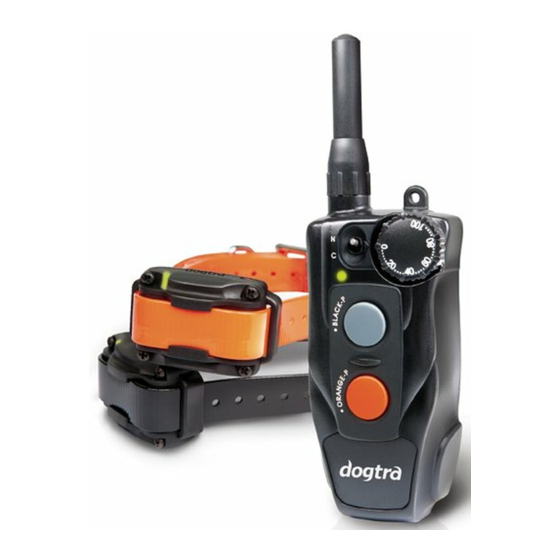

Overview Antenna Rheostat Intensity Dial Indicator Light Nick Button Pager Button Constant Button On/Off Battery Magnetic Charging Red Dot Receptacle & Rubber Plug Transmitter... - Page 9 Antenna Nick/Constant Toggle Switch Indicator Rheostat Light Intensity Dial 1st Dog Nick/ Constant Pager (Gray (Gray Button) Button) Pager Nick/ (Orange Constant Button) (Orange Button) On/Off Battery Magnetic Charging Red Dot Receptacle & Rubber Plug Transmitter...
- Page 10 Collar Strap On/Off Magnetic Red Dot LED Indicator Light Contact Points Battery Charging Receptacle & Rubber Plug Receiver/Collar...
-
Page 11: Understanding Your Training System
The transmitter does not have an on/off switch, and it will only activate when buttons are pressed. 2. How the Transmitter Buttons Work 200C The transmitter for the 200C single dog unit has three buttons (one on the face of the transmitter, and two on the left side). Nick... - Page 12 Nick Button The “Nick” button is located on top on the left side of the handheld transmitter. When the “Nick” button is pressed the receiver emits a single pulse of electrical stimulation. Constant Button The “Constant” button is located on the bottom on the left side of the handheld transmitter.
- Page 13 Nick & Constant Toggle Switch Located on the face of the transmitter is a toggle switch. The toggle switch has a setting for “Nick” and another for “Constant”. The color-coordinated buttons (orange for the orange receiver/collar and gray for the black receiver/collar) will implement the desired stimulation based on the toggle switch setting.
-
Page 14: Collar Fitting
3. Collar Fitting The receiver/collar should be fitted so that the surgical stainless steel contact points press firmly against the dog’s skin. When properly fitted, you should be able to fit a finger or two snugly in between the contact points and your dog’s skin. -
Page 15: How To Find The Right Stimulation
5. To Maximize the Distance The 200C has a 1/2-mile range. The range may vary depending on the way the transmitter is held. Hold the transmitter away from your body to receive the greatest range. -
Page 16: The Led Indicator
6. The LED Indicator The LED indicator flashes every 4 seconds when the receiver is on and ready for use. The LED indicator will blink on both the transmitter and the receiver when the transmitter buttons are pressed. The LED indicator color indicates the battery life level. Green = Fully charged, Amber = Medium, Red = Needs charging If the unit is used while the LED indicator is red, it will shut... -
Page 17: Charging The Battery
“Constant” button is pushed. Battery Charging Procedure NOTE : The unit has a partial charge when it leaves the Dogtra facility, upon receipt of the collar, be sure to give it a full 2-hour initial charge before the first use. - Page 18 4. After charging, cover the battery charging receptacles with the rubber plugs on the transmitter and receiver/collar. NOTE : Only use Dogtra-approved batteries, chargers, and accessories for your Dogtra e-collars. When a charger is not in use, disconnect it from the power source.
-
Page 19: General Training Tips
Getting started with your 200C Your dog must know some very basic obedience commands before beginning training with the 200C. A dog learns by first being shown a command, followed by lots of repetition over an extended period. As the dog becomes proficient at these commands, the trainer can introduce distractions and different locations to strengthen them. - Page 20 By using only enough stimulation to get your point across, you will have a more controllable environment and a dog that is under less stress. Animals (and humans) perform better in a less stressful environment. For more training information, please visit our website at www.dogtra.com.
-
Page 21: Maintenance
Storage maintenance The 200C should be fully charged before storing for extended periods. While in storage, the unit should be given a full charge once a month, and before the first use. Store the units in room temperature. -
Page 22: Troubleshooting Guide
- The contact points may be too short for your dog’s thick or long coat. To place an order for longer contact points, please contact Dogtra or a Dogtra dealer. If you are already using longer contact points, you may need to trim the hair on the dog’s neck, so that both contact... - Page 23 If your dog was in salt-water, be sure to rinse the receiver and charging port with clean water. - For Dogtra units over two years old from the purchase date, the batteries may need to be replaced. You can replace them yourself by contacting Dogtra for a replacement battery.
-
Page 24: Warranty And Repair Information
Dogtra will estimate the age of the unit by the serial number. Serial number estimates can differ from the actual purchase date. A serial number estimate is the only method of determining an approximate date of purchase without product registration or a proof of purchase. - Page 25 Or you can visit our website at www.dogtra.com for a service request form. If the repair costs are not covered under warranty, we will call you for payment information and authorization.
