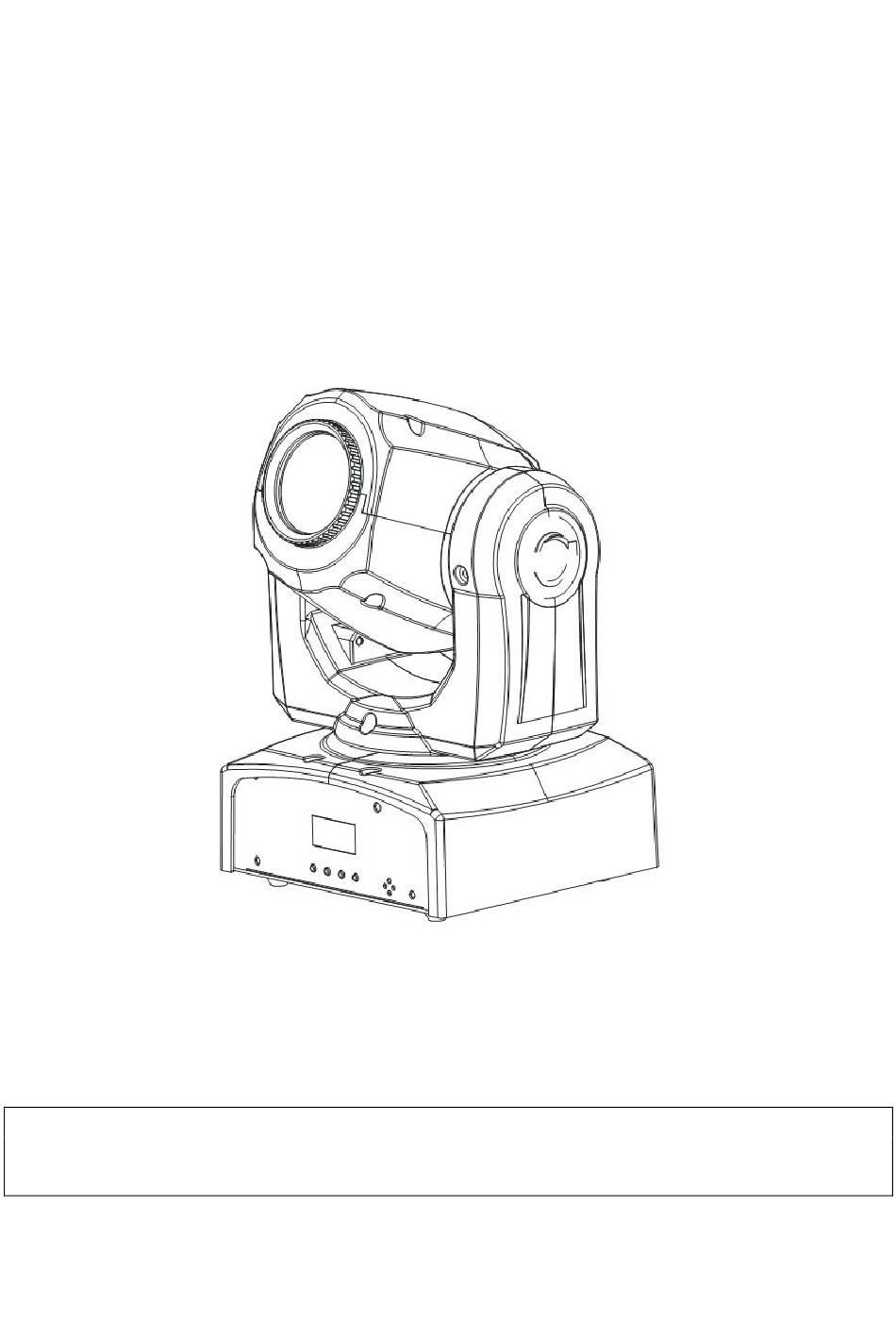

M-YL812 MINI SPOT MOVING HEAD
LIGHT
INSTRUCTION MANUAL
Thank you for choosing our LED mini spot moving head light. For the sake of your safety,
Please read and follow these instructions carefully and keep this manual in a safe place for
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-YL812 and is the answer not in the manual?

Questions and answers

Related Manuals for HD AUDIO SYSTEM M-YL812

Summary of Contents for HD AUDIO SYSTEM M-YL812

  • Page 1 M-YL812 MINI SPOT MOVING HEAD LIGHT INSTRUCTION MANUAL Thank you for choosing our LED mini spot moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for...

  • Page 2: Table Of Contents

    Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 DMX Set Up ------------------------------------------------------------------------------------------------------------5 System Menu ------------------------------------------------------------------------------------------------------------7 Home Adjustment Menu ---------------------------------------------------------------------------------------------10 Operation Menu ---------------------------------------------------------------------------------------------------------11 Master-Slave Set Up ----------------------------------------------------------------------------------------------------12 Remote Operation -------------------------------------------------------------------------------------------------------12 DMX Channel Mode ---------------------------------------------------------------------------------------------------13 Photometric Chart -------------------------------------------------------------------------------------------------------14 Dimmer Curve Chart ---------------------------------------------------------------------------------------------------15...

  • Page 3: Safe Usage Of The Product

    SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20.

  • Page 4: Install The Equipment

    Install The Equipment: When installing the unit, the trussing or area of installation must be able to hold 10 times the weight without any deformation. When installing the unit must be secured with a secondary safety attachment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting, removing, or servicing the unit. Overhead mounting requires extensive experience, including calculating working load limits, installation material being used, and perodic safety inspection of all installation material and unit.

  • Page 5: Dmx Set

    Screw one clamp via a M12 screw and nut to the included bracket. Attach the bracket using the included screws to the bottom of the Inno Pocket Spot Pearl. Attach the eyehole screw to the bottom of the base and pull the safety-cable through the screw and over the trussing system or a safe fixation spot. Insert the end in the carabine and tighten the safety screw.
  • Page 6 assigned a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. Therefore, the first fixture controlled by the controller could be the last fixture in the chain. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

  • Page 7: System Menu

    5-Pin XLR DMX Connectors. Some manufactures use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily available at most electric stores.
  • Page 8 Slave Mode Sound Mode Sound Sense Pan Inverse Tilt Inverse LED Display Display Normal Display Inversion Auto Test Temperature Display Reset System Menu: When making MJ adjustments press ENTER to confirm your setup then press and hold the MENU button for at least 3 seconds. To exit without making any adjustments press the MENU button.
  • Page 9 CHND - This will let select your desired DMX channel mode. 1. Press the either the MENU button until “CHND” is displayed, press ENTER. Either “9CH” or “11CH” will be displayed 2. Press the UP or DOWN buttons to find your desired DMX channel mode and press ENTER to confirm and exit.

  • Page 10: Home Adjustment Menu

    TINT - Tilt Inversion 1. Press the MENU button until “TINT” is displayed, press ENTER. Either “Yes” or “No” will be displayed. 2. To activate the tilt inversion press the UP or DOWN buttons until “Yes” is displayed, press ENTER to confim.

  • Page 11: Operation Menu

    To enter the home position adjustment menu, press the ENTER button for at least 5 seconds. In this submenu you are able to adjust the original position of the pan position, tilt position, color wheel position, and gobo wheel position. OPAN - adjustment of the pan position.

  • Page 12: Master-Slave Set

    1. Press the MENU button until “SOUN” is displayed, and press ENTER. Press the UP or DOWN buttons so that “ON” is displayed and press ENTER. 2. Press the MENU button until “SENS” is displayed, and press ENTER. Use the UP and DOWN buttons to adjust the sound sensitivity.

  • Page 13: Dmx Channel Mode

    The UC-IR infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more then 30 feet away. STAND BY - Pressing this button will blackout the fixture. FULL ON - Hold this button down to fully light up the unit.

  • Page 14: Photometric Chart

    080-087 Gobo 3 Shake 088-095 Gobo 4 Shake 096-103 Gobo 5 Shake 104-111 Gobo 6 Shake 112-119 Gobo 7 Shake 120-127 Gobo 8 Shake 128-189 Gobo Scroll, Fast to Slow 190-193 Stop 194-255 Gobo Scroll , Slow to Fast 5 CH 7 CH Shutter 000-007...

  • Page 15: Dimmer Curve Chart

    Dimmer Curve Chart Fuse Replacement Locate and remove the unit’s power cord. Once the cord has been removed located the fuse holder located inside the power socket. Insert a flat-head screw driver into the power socket and gently pry out the fuse holder.

  • Page 16: Trouble Shooting

    Auto Sensing Voltage: This fixture contains a automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. HD AUDIO SYSTEM INC. ADDRESS : 2112 Lee Ave. South El Monte, CA 91733 TELEPHONE : +1 (626) 433-0357...
