HD AUDIO SYSTEM M-Y8200 Manual

230w moving head beam light

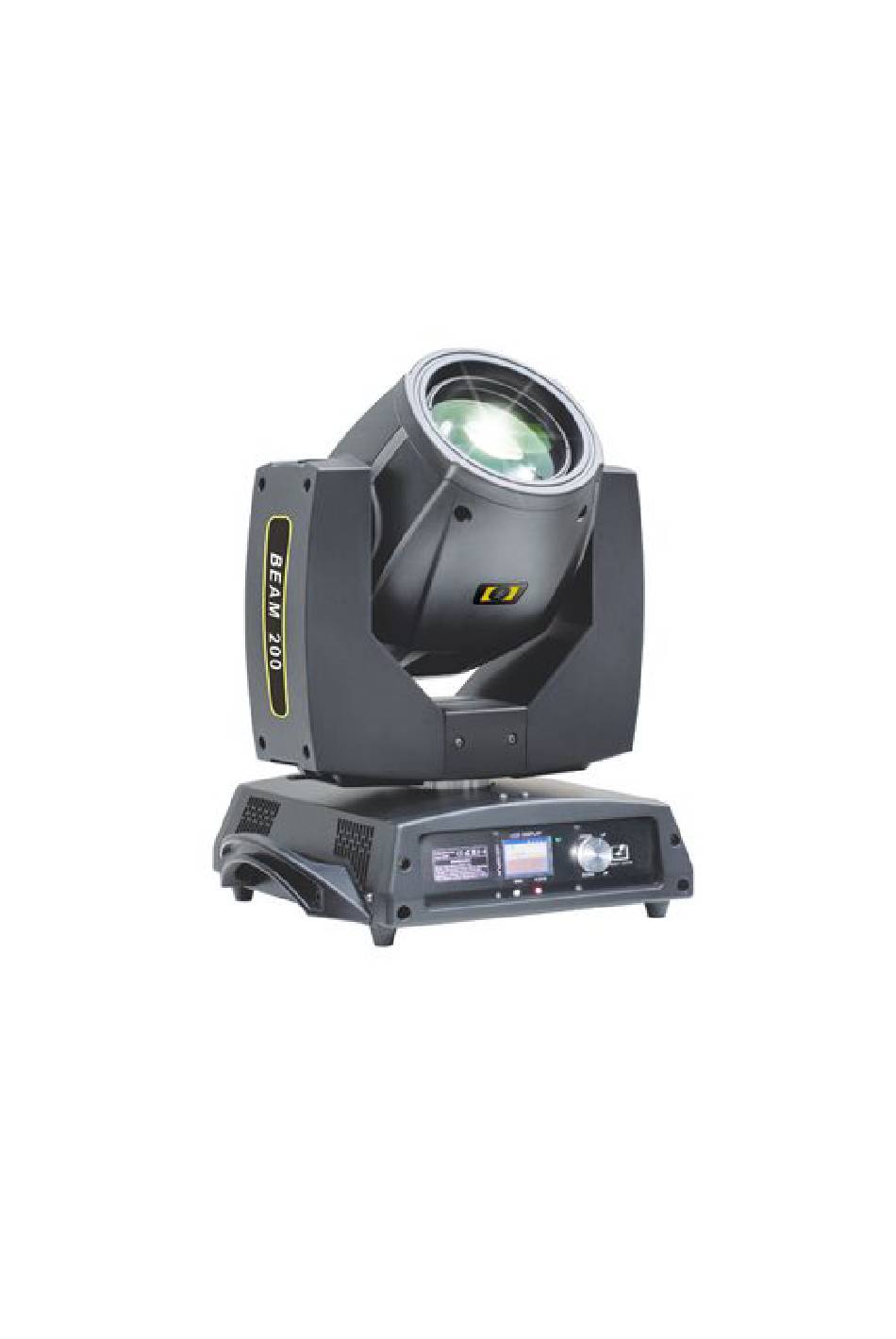

M-Y8200 230W Moving Head Beam Light

Table of Contents

Need help?

Do you have a question about the M-Y8200 and is the answer not in the manual?

Page 1 M-Y8200 230W Moving Head Beam Light...
Page 2 PLEASE READ THIS CAREFULLY BEFORE USE Skill parameters Light source: Osram 7R, 5000 (lm), 8000K Channel: 16 channels for optical. Voltage: AC 90V 240V ～(full voltage), 50/60Hz Power: 350W Functions: 1) Color wheel: 1 color wheel (14 colors), (8 colors + white) color filters are changeable.
Page 3 N.W: 19KG Channels Control Illustration： Item Channel Function address 0-255 0-450° Tilt 0-255 0-270° Pan fine 0-255 0--2.1° Tilt fine 0-255 0--1.0° Speed of pan/tilt 0-255 Fast-slow Foggy lens 0-255 1-50 Strobe 51-240 Strobe from slow to fast 241-255 Dimmer 0-255 From dark to bright White...
Page 4 88-95 Color 11 96-103 Color 12 104-111 Color 13 112-127 Color 14 Rainbow effect,clockwise from 128-191 fast to slow Rainbow effect ,anticlockwise 192-255 from slow to fast CH10 Half step of color 0-255 Half step of color Gobo 1 7-13 Gobo 2 14-20 Gobo 3...
Page 5 CH12 Gobo shake 1-191 Fast-slow 192-255 CH13 Focus 0-255 Near to far 0-31 CH14 Prism 32-255 Prism 0-127 Prism manual rotation CH15 Prism rotation 128-191 Clockwise from fast to slow 192-255 Anti clockwise from slow to fast 0-249 No function CH16 Reset 250-255...
Page 6 1、Sound control 6.Test run 2、Auto 7.Restore the factory default Settings 8.Rest HD AUDIO SYSTEM INC. ADDRESS : 2112 Lee Ave. South El Monte, CA 91733 TELEPHONE : +1 (626) 433-0357 +1 (844) 223-7809 FAX : +1 (626) 433-0315 EMAIL : info@hdaudiosystem.com...
