Summary of Contents for Peavey PBK15FM

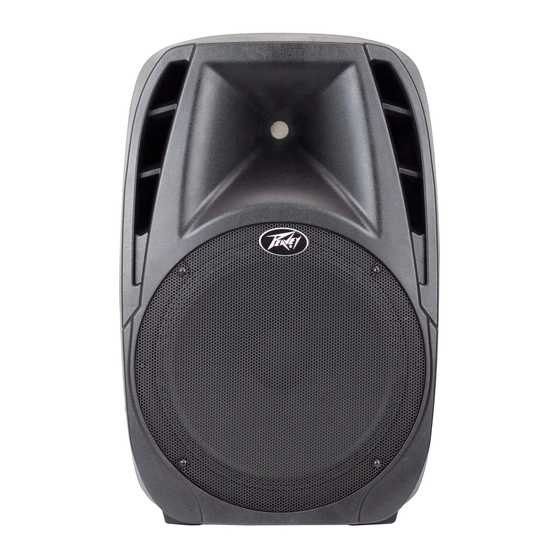

- Page 1 PBK15FM Two-way Powered Sound Reinforcement Enclosure Operating Manual www.peavey.com...
- Page 3 A typical signal source for the line-level inputs of the Peavey PBK15FM would be a sound reinforcement mixing console (mixer) or the output from a CD player, MP3 player or tape deck. A dynamic microphone can be connected to the Mic Input...
-
Page 4: Rear Panel
VALUE IN ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PREVENT VOIDING THE WARRANTY! The fuse in the Peavey PBK15FM can be replaced with a time- delay type 5 x 20 mm size 250V rated fuse. For 110-120VAC operation, a fuse rated at 3.15 amps and 250V should be used, which conforms to the international fuse classification "T3.15AL". -
Page 5: Wireless Microphones
This receptacle is for the IEC line cord (supplied) that provides AC power to the unit. It is very important that you ensure the PBK15FM has the proper AC line voltage supplied. You can change the voltage for your PBK15FM by following the instructions above under the section VOLTAGE SELECTION PROCESS. -
Page 6: Mic Input
LINE OUT (14) These RCA jacks are intended for the use of linking multiple PBK15FM in a line or to provide a feed to a powered subwoofer, or other electronics that needs to receive a full range version of the input signal. The connectors available are RCA jack. -
Page 7: Bluetooth® Player
Bluetooth® Player To listen to your music via Bluetooth wireless connection, you need to pair (link) your PBK 15FM with your Bluetooth phone and/or music device. 1. Turn off any Bluetooth devices previously paired with your PBK 15FM. 2. Turn on the Bluetooth feature on your phone or music device. 3. -
Page 8: Remote Control
Remote Control NOTE: For proper use, do not block the IR Receiver. PLAY/PAUSE: A short press of the PLAY/PAUSE button causes the operation to change from PLAY to PAUSE or from PAUSE back to PLAY CH- / CH+: Channel adjustment buttons. EQ: EQ Preset adjustment button. -
Page 9: Specifications
Output Connections: two RCA phone jack. The Line Out jacks are intended for the use of linking multiple PBK15FM in a line or to provide a feed to a powered subwoofer, or other electronics that needs to receive a full range version of the input signal. - Page 10 2.0 amp 250V rating. Features and specifications are subject to change without notice. Peavey Electronics Corporation • 5022 Hartley Peavey Drive • Meridian • MS • 39305 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com • ©2013 • EX000181...
- Page 12 QR tag below Features and speci 白 cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
