Summary of Contents for Peavey PVs 15 Sub

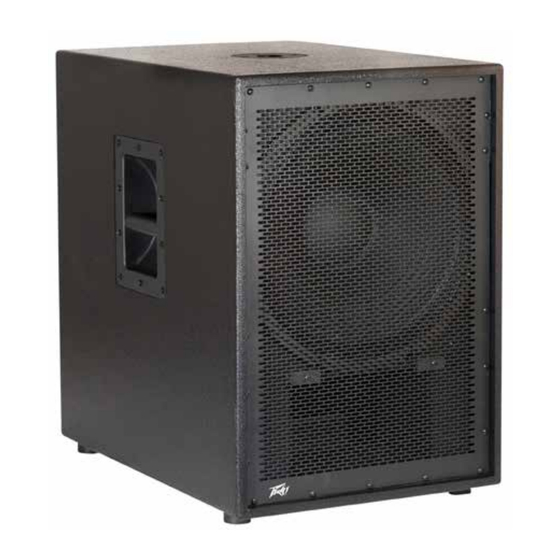

- Page 1 PVs 15 Sub Enclosure Operating Manual www.peavey.com...
- Page 2 FCC CAUTION: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 3 (mixer) or the output from a CD player, MP3 player or tape deck. The high-pass filtered signal from the PVs 15 Sub would then be sent to a full-range powered speaker system, easing the burden of deep bass from this...
- Page 4 Specifications Frequency Response, 1 meter on-axis, swept-sine in half space Environment (-6 dB): 47 Hz – 180 Hz (Crossover Control Full CW) 47 Hz – 90 Hz (Crossover Control full CCW) Low Frequency range (-10 dB, half space): 44 Hz Power Amp Rating: 1,000 watts peak available power Sine wave Power:...
- Page 5 Greater than 90 dB below rated power THD and IM: Typically less than 0.1 % Power requirements of Peavey PVs 15 Sub System: Nominal 160 Watts, 100-120 VAC 50-60 Hz (Domestic) 220-240 VAC 50-60 Hz (Export) Enclosure Materials & Finish: Black acrylic painted enclosure with 15 mm MDF, with a full-length, black powder coated perforated steel grille.
-
Page 6: Rear Panel
Changing the Voltage Range of the PVs 15 Sub First, make sure the PVs 15 Sub is disconnected from the power line, and that the power switch (4) is in the OFF position. - Page 7 AGE TO THE EQUIPMENT AND TO PREVENT VOIDING THE WARRANTY! The fuse in the PVs 15 Sub can be replaced with a time-delay type 5 x 20 mm size 250V rated fuse. For 100- 120VAC operation, a fuse rated at 5 amps should be used. In the USA, types GDC, GMC, 215, 218, and 477 car- tridge-style 5 x 20 mm size fuses with a 5 amp 250V rating can be used.
-
Page 8: Ground Lift Switch
TROL TOO LOW MAY ALLOW THE SATELLITE SPEAKER TO BE OVERLOADED BY DEEP BASS! Setting the control lower DOES NOT increase the deep bass output of the PVs 15 Sub, a middle range (9:30 to 2:30 clock face position) setting works best for most speakers. -
Page 9: Polarity Switch
Sub not be placed in a closed space or a space that has no fresh, cool airflow. DO NOT connect the inputs of the PVs 15 Sub to the output of a power amplifier. The inputs are meant to be driven from a line-level strength signal. - Page 10 Placing A Satellite Speaker System On Top Of The PVs 15 Sub The PVs 15 Sub has a threaded pole mount built-in to the top of the unit, and this is designed to mate with an M20 threaded pole of approx. 32” in length or less. This pole is designed to be used with speaker systems less than 33”...
- Page 11 (15 & 16), is to use a balanced XLR cable no longer than necessary to comfortably reach the satellite speaker system. If the satellite speaker is on top of a pole above the PVs 15 Sub, then a 6 foot cable will be plenty long. A 10, or 20 foot cable could also be used, but cables longer than that will only allow more interference pickup, and possibly start to lose high frequency information.
- Page 12 Frequency & Polarity SUB MODEL> PVs 15 Top Box Model PA12 Xover Frequency 135 Hz/90 Hz * Check the Peavey website for updat- Polarity Normal/Either ed information. Top Box Level/Gain 2 o’ c lock PA15 Frequencies corresponding to the Xover Frequency...
-
Page 13: Troubleshooting
If the PVs 15 Sub has been subjected to direct sunlight or excessive heat, the built-in thermal protection may have been triggered. If so, turn off the PVs 15 Sub and let it cool for a sufficient amount of time. If there is still no... - Page 14 PVs 15 Sub has not been set too low. Check that the input plug is fully seated in the input jack on the rear panel of the PVs 15 Sub. Ensure that a power amp has not been plugged into the input jack of the PVs 15 Sub. If an ex- tension cord is being used to provide the AC power to the unit, insure that it is of sufficient current capacity and that it is not also being used to supply power to any other device.
- Page 15 Do not allow ANY fluids to drip inside the PVs 15 Sub. For a touch-up of any damage to the black painted finish of the PVs 15 Sub, you can use a black spray paint such as Peavey Commercial Sound, Black Touch-Up Paint, Peavey part number 00052110.
- Page 16 The unit is subject to a great deal of vibration, and this could cause them to loosen with use. Loudspeaker System Specifications TYPICAL HOOK-UP CONNECTIONS Loudspeaker System Specifications _ PAGE _1_ _ PAGE _1_ Architectural and Engineering Specifications...
- Page 17 (70.6 cm) deep (including the casters), and the weight shall be 81.5 lbs. Power requirements shall be: 160 Watts nominal, 120 VAC, 50/60 Hz Domestic and 220-240 VAC, 50/60 Hz (Export). The loudspeaker system shall be called a Peavey® PVs 15 Sub.
- Page 18 212.50 8.366 301.50 11.870 23.740 218.50 8.602 6.535 110.50 4.350 8.819 24.488 23.701 16.732 1.339 2.677 19.449...
- Page 19 110.50 4.350 8.819 1.339 14.055...
- Page 20 Warranty registration and information for U.S. customers available online at www.peavey.com/warranty or use the QR tag below Features and speci cations subject to change without notice. Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005...
