Resolution RE106 Quick Start Manual

RE106 Tilt, GE-Compatible
Features
Alarm for anything that tilts.
•
Useful for hatches, roll-up doors and even moveable assets.
•
Cover tamper.
•
Strong, reliable RF signal.
•
10-15 year battery life on CR123A battery.
•
Low Battery indication.
•
3.3x1.4x1.1 inches.
•
Key Instructions
Battery "+" faces towards spring.
•
Mounted (non-alarm position) straight up with battery at bottom,
•
tamper switch at top.
Enrolled by tamper switch.
•
Operation
Tilt
•
Alarm: When tilted more than 45 degrees off of straight up.
Tamper: when cover is opened.
Supervisory: every hour.
Specifications
Tilt Sensing Angle: 40 degrees +/- 15 degrees upward cone
Tilt Operation Angles: 360 degrees
Tilt Element Technology: Gold-plated ball and contacts, non-mercury
Operational Life: 100,000 cycles
Mounting hardware: # 4 or #6 screws
Replacement Battery: CR123A 1550 mAH
Temperature Range: 0F to 120F
Housing dimensions: 3.3x1.4x1.1 inches
Specifications subject to change without notice.
Page 1 of 3
RE106_GE-Compat_Tilt_Instructions
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
15-Feb-16

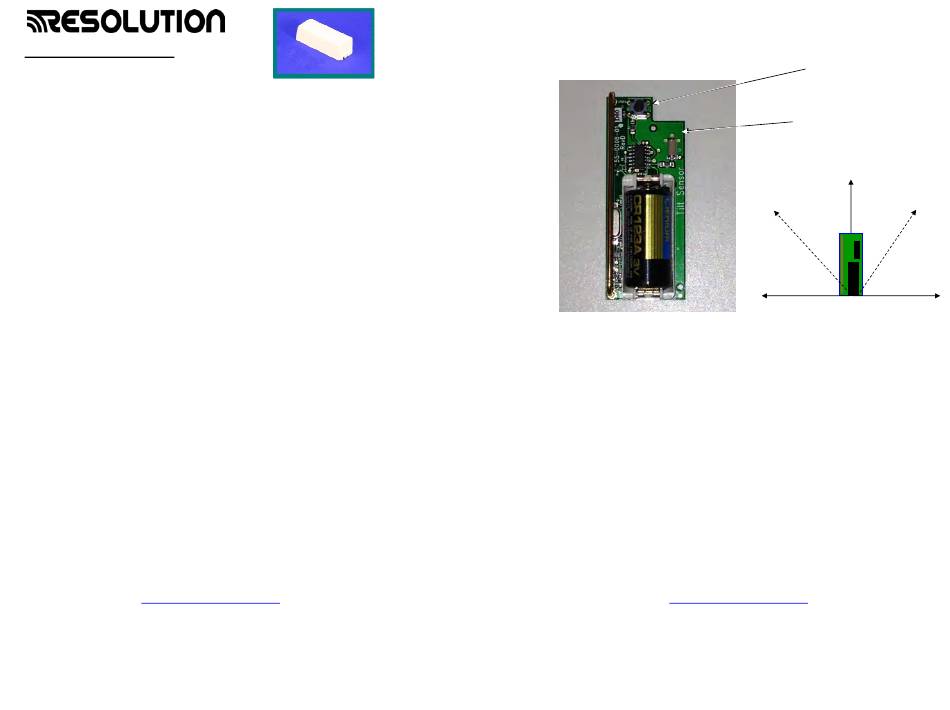

Internal Picture
Shown in straight up, non-alarm mounting position.
Page 2 of 3
RE106_GE-Compat_Tilt_Instructions
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Tamper Switch
Tilt Element
(Non-Alarm = up)
(Alarm = flat)
Non-Alarm Cone
Alarm Cone
Alarm Cone
Stays in Alarm even when
pointing into this region
15-Feb-16
