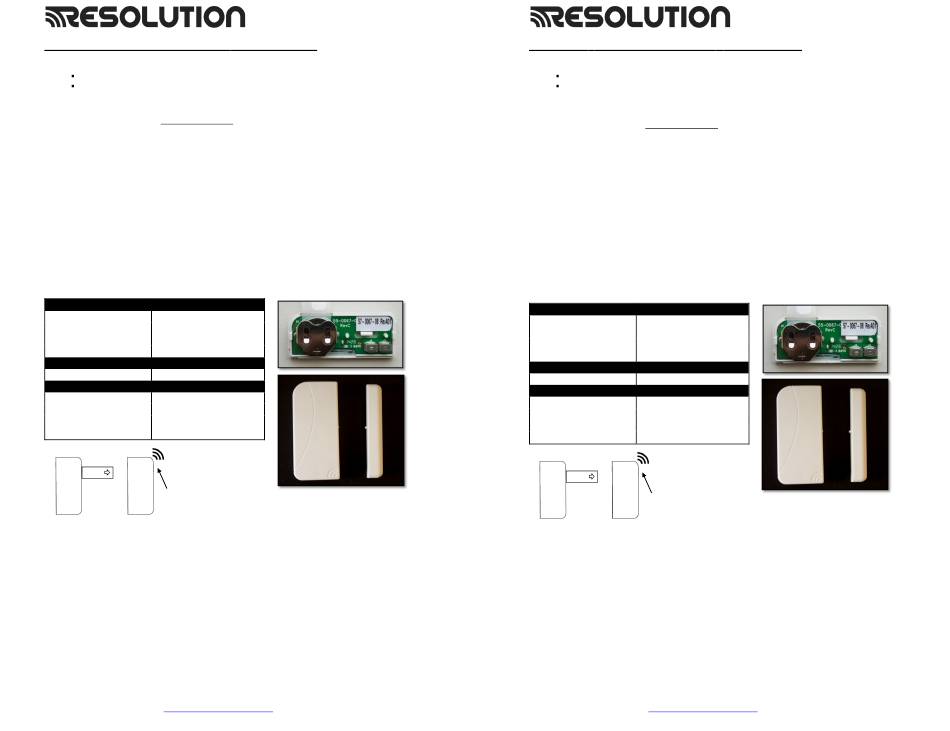

RE322 DSC
-Compatible NanoMax
®
Programming/Enrolling
Place control panel in enrollment mode
Remove the battery tab to send RF enrollment signal
Installation
The 3M VHB™ tape is an extremely effective adhesive. However it requires three things to
•
properly bond:
1. Clean surface – any standard cleaner will work, but surface must be dry afterwards.
2. Warm temperature – if temperature is below 50F, warm the mounting surface by
vigorously rubbing it with something clean.
3. Pressure – apply firm pressure for 10-15 seconds.
Remove 3M VHB™ tape backing
•
Place on desired location of door or window
•
External Contact: Internal magnetic switch cannot be used when external contact is
•
installed. See next page for external contact mounting.
Operation
Alarm when...
•
o Magnet is pulled away from internal reed switch, or
o External contact is opened
Tamper Alarm, when cover is opened
•
Supervisory transmission, every hour
•
Low battery indication, when battery is nearing end of life
•
Physical
Housing dimensions
1.8 x 0.77 x 0.39 inches
Weight with battery
0.529 ounces
Mounting fastener
3M VHB™ Tape
Tamper activation
Cover removal
Environmental
Operating temperature
32°F to 120°F
Specifications
Magnet trip distance
1 inch nominal
Replacement battery
Panasonic CR1632
Battery life
6 years
Strong, reliable RF signal
Maximum FCC power
RF Enrollment signal is
sent after tab is removed
Battery tab can be extracted
without removing the cover
RE322 DSC Compatible NanoMax Instructions - May 15, 2015
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Door/Window
™
RE322 DSC
-Compatible NanoMax
®
Programming/Enrolling
Place control panel in enrollment mode
Remove the battery tab to send RF enrollment signal
Installation
The 3M VHB™ tape is an extremely effective adhesive. However it requires three things to
•
properly bond:
1. Clean surface – any standard cleaner will work, but surface must be dry afterwards.
2. Warm temperature – if temperature is below 50F, warm the mounting surface by
vigorously rubbing it with something clean.
3. Pressure – apply firm pressure for 10-15 seconds.
Remove 3M VHB™ tape backing
•
Place on desired location of door or window
•
External Contact: Internal magnetic switch cannot be used when external contact is
•
installed. See next page for external contact mounting.
Operation
Alarm when...
•
o Magnet is pulled away from internal reed switch, or
o External contact is opened
Tamper Alarm, when cover is opened
•
Supervisory transmission, every hour
•
Low battery indication, when battery is nearing end of life
•
Physical
Housing dimensions
1.8 x 0.77 x 0.39 inches
Weight with battery
0.529 ounces
Mounting fastener
3M VHB™ Tape
Tamper activation
Cover removal
Environmental
Operating temperature
32°F to 120°F
Specifications
Magnet trip distance
1 inch nominal
Replacement battery
Panasonic CR1632
Battery life
6 years
Strong, reliable RF signal
Maximum FCC power
RF Enrollment signal is
sent after tab is removed
Battery tab can be extracted
without removing the cover
RE322 DSC Compatible NanoMax Instructions - May 15, 2015
24-Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
Door/Window
™
