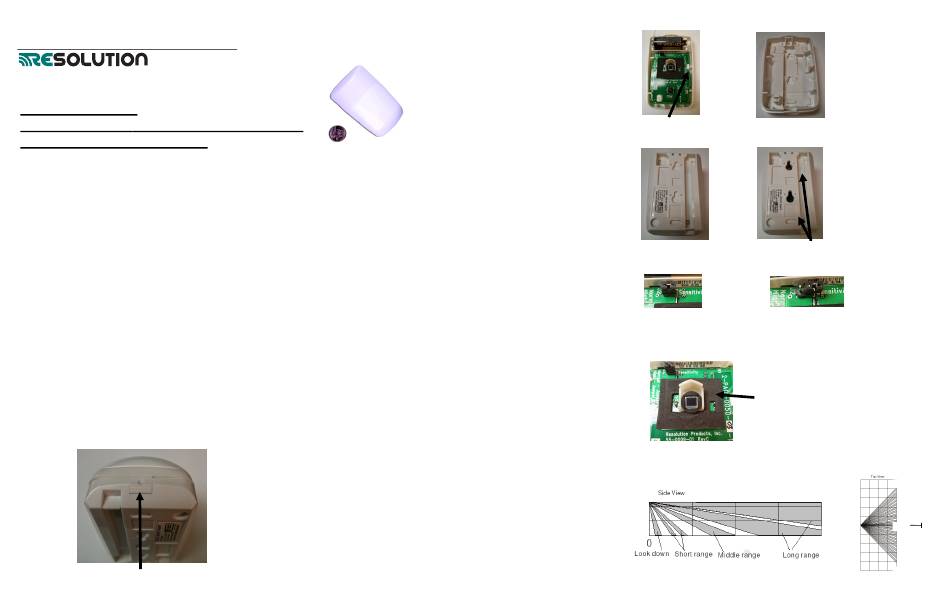

Resolution Connect O2 RE610P+ Installation Manual

O
CONNECT
Installation Guide
RE610P+ CryptiX -Compatible PIR Motion,
™
TWO 60-Pound-Dog-Immune
Features
PYROFLEX™ IR sensor and HighBar™ signal processing for superior performance
•
Unparalleled Pet Immunity and Catch performance
•
44 foot range and 90 degree field of view (45 degrees to each side)
•
Mountable on Flat-wall or in corners
•
Optional External Contact
•
Cover tamper
•
Strong, reliable RF signal
•
6-8 year battery life on CR123A battery
•
Low Battery indication
•
Enrollment
Place panel in enrollment mode.
•
Sensor enrollment signal can be sent by one of the below two ways.
•
Remove the battery tab.
•
Tamper the device by removing the cover.
•
To setup zone and configure the sensor, log into the web based dealer
•
portal.
Installation
Remove the cover of the enclosure by pressing the latch at the top of the
•
enclosure.
Cover latch
2
Remove the PCB from the bottom of the enclosure.
•
PCB latch Enclosure base
Punch out the mounting holes
•
Mounting holes
Motion sensitivity selection
•
High Sensitivity
Default: Normal Sensitivity
Jumper on ONLY 1 PIN
Jumper on BOTH PINS
Make sure bug foam is installed
•
Bug foam
Mount at 7.5 foot height for optimum performance between: Catch
•
performance, Pet Immunity and False Alarm prevention.
7.5 ft
10 ft 20 ft 30 ft
56
0 40 56
40 ft
56
