LED Description

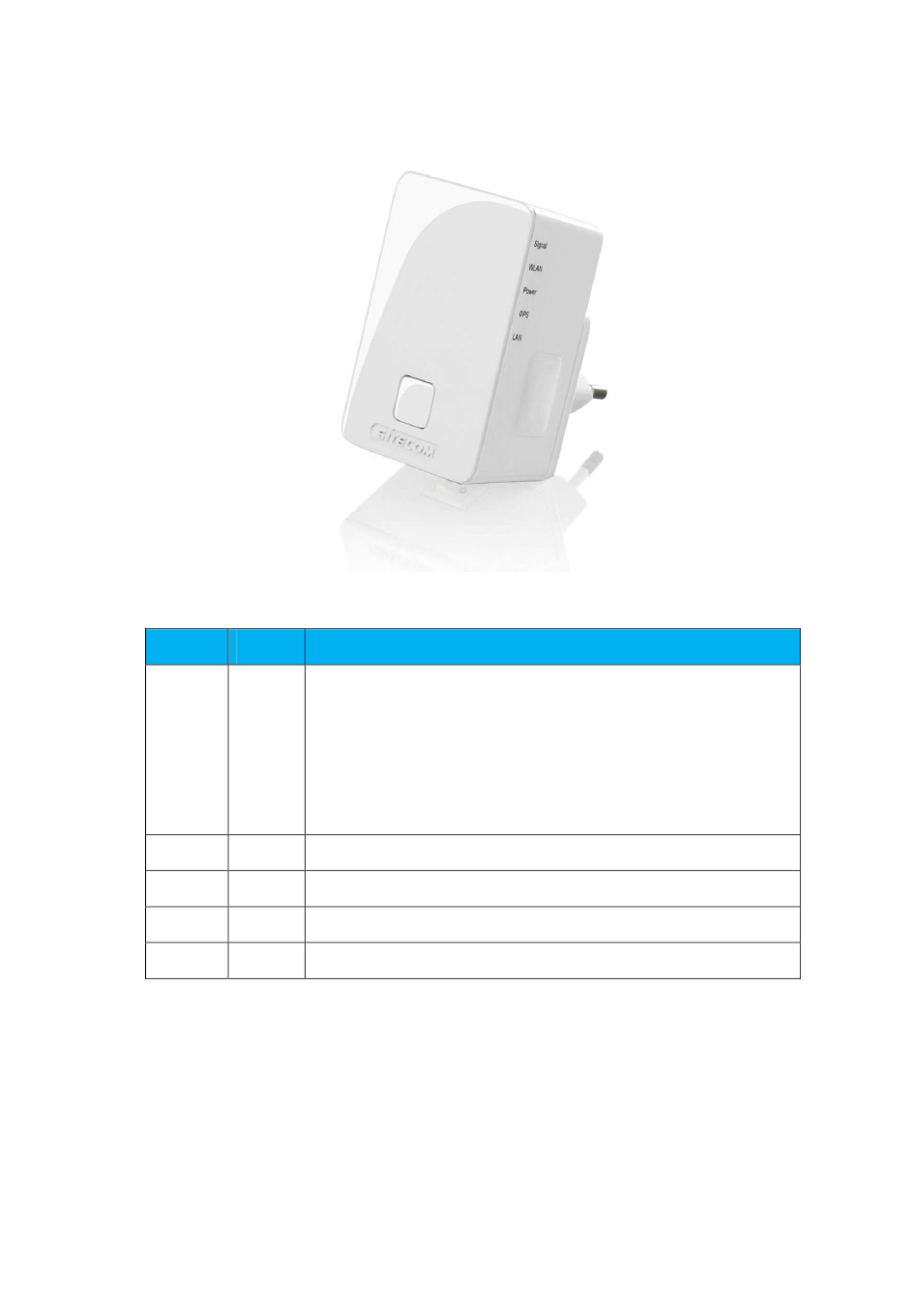

From top to bottom:
LED Color
Signal Orange
WLAN Blue
Power Orange
OPS White
LAN Green
Description
This LED shows the quality of the signal it receives from your
Router/Access Point.
0-25%: 250 milliseconds ON – 250 millisecond OFF
25-50%: 1000 milliseconds ON – 1000 milliseconds OFF
50-100%: Continuous ON
Lights up in Blue when WLAN is enabled. Blinks on traffic.
Lights up when powered ON. Blinks on TEST/RESET.
Blinks when OPS mode is on.
Lights up when a LAN cable is connected.
