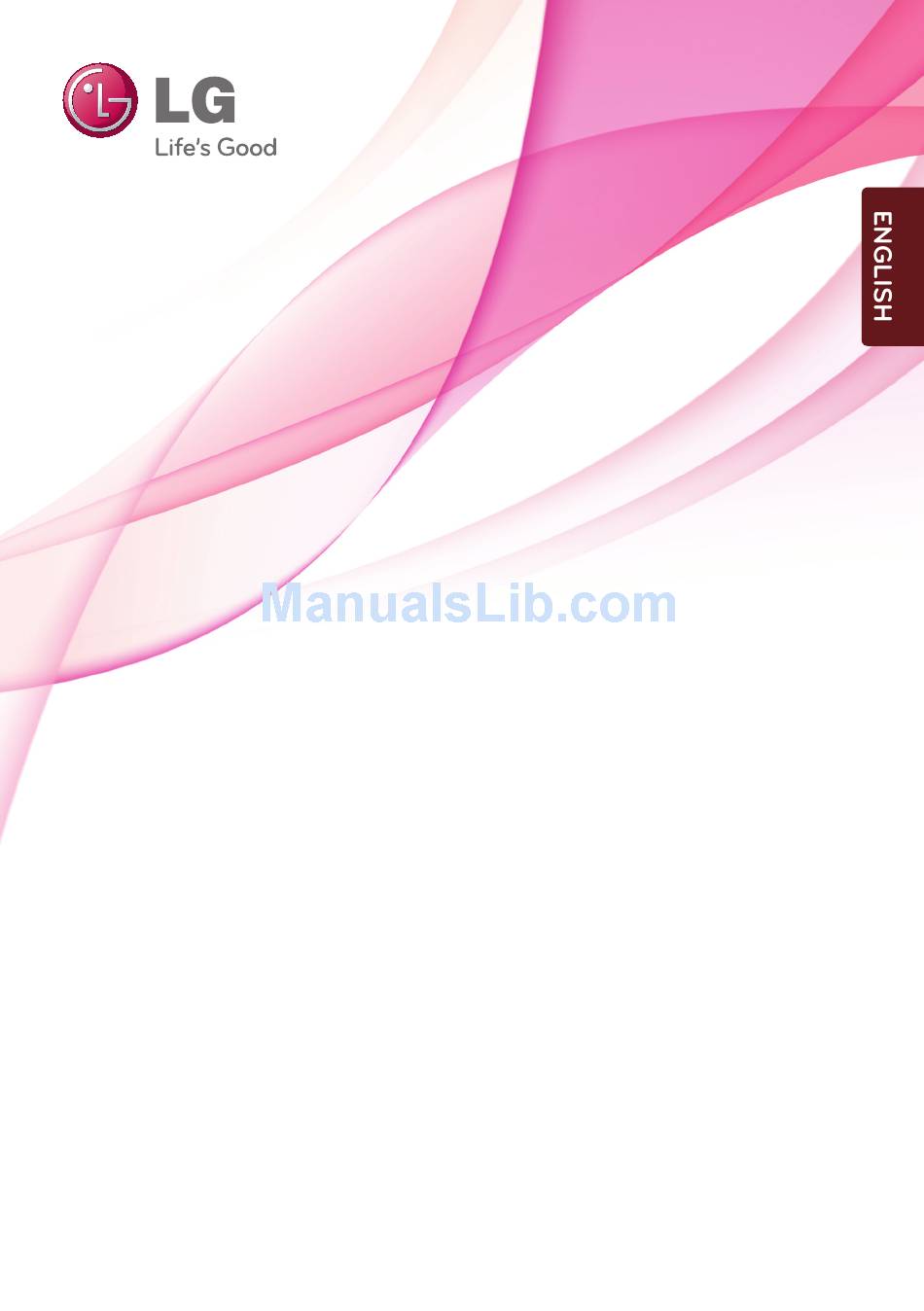

OWNER'S MANUAL
LCD TOUCH MONITOR
Please read this manual carefully before operating
your set and retain it for future reference.
LCD TOUCH MONITOR MODELS
T1710B
T1910B
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T1710B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG T1710B

Summary of Contents for LG T1710B

  • Page 1 OWNER’S MANUAL LCD TOUCH MONITOR Please read this manual carefully before operating your set and retain it for future reference. LCD TOUCH MONITOR MODELS T1710B T1910B www.lg.com...

  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

  • Page 4: On Cleaning

    Important Precautions On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching.
  • Page 5 Accessories !!! Thank for selecting LGE products !!! Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Owner's Manual/Cards USB Cable Touch Driver CD NOTE This accessories may look different from those shown here. User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard compliance for the product.

  • Page 6: Basic Adjustment

    Adjust the angle of the panel as follows. How to adjust the angle of the panel Tilt Range : T1710B : 15˚ to 66˚ T1910B : 15˚ to 68˚ Push back the panel to the end, and use from the point that it automatically returns.

  • Page 7: Connecting The Display

    Connecting the Display Using the Computer Make sure to turn off the computer and product. Connect the cable as below sketch map form Connect D-sub Cable (PC) Connect D-sub Cable (Mac) NOTE This is a simplified representation of the rear view. This rear view represents a general model;...
  • Page 8 * The software drivers support the following Microsoft Windows operating systems: Windows 2000, XP, VISTA(32bit, 64bit). NOTE When you lose Driver CD or want to update the program, please refer to http://www.lg.com. < USB cable for the touch screen > Power Cord...

  • Page 9: Front Panel Controls

    Control Panel Functions Front Panel Controls Control Function Use this button to enter or exit from the On Screen Display. MENU Button OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that these settings are not inadvertently changed. To lock the OSD settings, press and hold the MENU button for several seconds.
  • Page 10 (display mode). The best display mode is: T1710B: 1280 x 1024 T1910B: 1280 x 1024 Use this button to turn the display on or off. This Indicator lights up as blue when the display is operating normally(On Mode).

  • Page 11: Screen Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.

  • Page 12: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. (D-sub ) NOTE The order of icons may differ depending on the model (A11 to A16 ).
  • Page 13 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
  • Page 14 On Screen Display(OSD) Selection and Adjustment Main menu PICTURE MENU : Exit : Decrease : Increase SET : Select another sub-menu COLOR MENU : Exit : Decrease : Increase SET : Select another sub-menu Sub menu Description To adjust the brightness of the screen. BRIGHTNESS To adjust the contrast of the screen.
  • Page 15 On Screen Display(OSD) Selection and Adjustment Main menu TRACKING MENU : Exit : Decrease : Increase SET : Select another sub-menu Sub menu Description To move image left and right. HORIZONTAL To move image up and down. VERTICAL To minimize any vertical bars or CLOCK stripes visible on the screen background.
  • Page 16 On Screen Display(OSD) Selection and Adjustment Main menu SETUP MENU : Exit : Decrease : Increase SET : Select another sub-menu If this does not improve the screen image, restore the factory default settings. If necessary, perform the white balance function again. Sub menu Description To choose the language in which the...
  • Page 17 On Screen Display(OSD) Selection and Adjustment Select the button at the bottom of the monitor, then the OSD screen will appear. Menu Name Icons Sub-menu Name Main menu To adjust the USER sub-menu function, press the AUTO/SET Button. MENU : Exit : Decrease : Increase AUTO/SET...

  • Page 18: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the display connected? Is the power indicator light on? Is the power on and the power indicator blue or green? Is the power indicator flickering? Do you see an "OUT OF RANGE"...

  • Page 19: Display Image Is Incorrect

    Troubleshooting Display image is incorrect Display Position is incorrect. On the screen background, vertical bars or stripes are visible. Any horizontal noise appearing in any image or characters are not clearly portrayed. Important Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed.
  • Page 20 Troubleshooting Display image is incorrect The screen color is mono or abnormal. The screen blinks. Touch screen does not work. Did you install the touch screen driver? • Check if the signal cable is properly connected and use a screwdriver to fasten if necessary. •...

  • Page 21: Specifications

    Temperature 10 ˚C to 35 ˚C Humidity 10 % to 80 % non-Condensing Temperature -20 ˚C to 60 ˚C Humidity 5 % to 90 % non-Condensing T1710B Without Stand 36.96 cm (14.55 inch) 31.5 cm (12.40 inch) 6.24 cm (2.46 inch)
  • Page 22 Specifications Display 48.19 cm (19.0 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 48.19 cm 0.294 mm x 0.294 mm (Pixel Pitch) Horizontal Freq. Sync Input Vertical Freq. Input Form Signal Input Video Input Input Form Resolution Recommend Plug &...

  • Page 23: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) Display Modes (Resolution) 640 x 350 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1152 x 870 1152 x 900 1280 x 1024 1280 x 1024 Indicator...

  • Page 24: Installing The Wall Mount Plate

    Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Place the monitor with its front facing downward on a soft cloth. Separate the head and the stand with the use of a screwdriver.
  • Page 25 Installing the Wall mount plate Install the Wall mount plate. Wall Mount pad NOTE VESA compatible only with respect to screw mounting interface dimensions and mounting screw specifications Please use VESA standard as below. * 784.8 mm and under (30.9 inch) - Wall Mount Pad Thickness : 2.6 mm - Screw : 4.0 mm x Pitch 0.7 mm x Length 10 mm...
  • Page 26 Make sure to read the Important Precautions before using the product. Keep the User’s Guide(CD) in an accessible place for furture reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.

This manual is also suitable for:

T1910b-bnT1710b-bnT1910b
