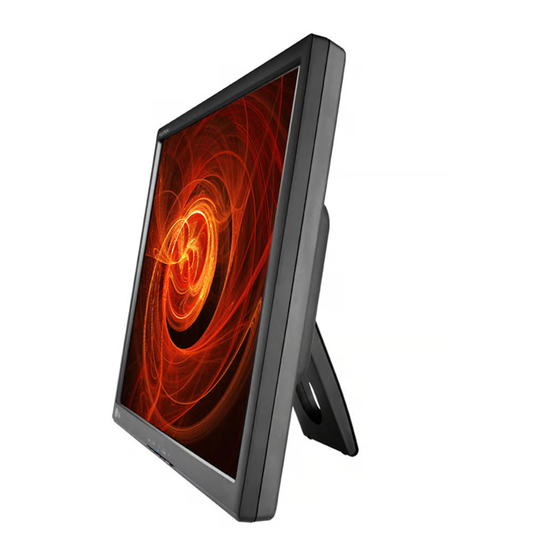

LG T1910B Owner's Manual
Lcd touch monitor
Hide thumbs
Also See for T1910B:
- Owner's manual (38 pages) ,
- Specifications (2 pages) ,
- Owner's manual (38 pages)
Subscribe to Our Youtube Channel
Related Manuals for LG T1910B
Summary of Contents for LG T1910B
- Page 1 OWNER’S MANUAL LCD TOUCH MONITOR Please read this manual carefully before operating your set and retain it for future reference. LCD TOUCH MONITOR MODELS T1710B T1910B www.lg.com...
-
Page 2: Important Precautions
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. - Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
- Page 4 Important Precautions On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching.
- Page 5 Accessories !!! Thank for selecting LGE products !!! Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Power Cord Owner's Manual/Cards 15-pin D-Sub Signal Cable USB Cable (To set it up, this signal cable may be attached to this product before shipping out.) Touch Driver CD...
-
Page 6: Basic Adjustment
Adjust the angle of the panel as follows. How to adjust the angle of the panel Tilt Range : T1710B : 15˚ to 66˚ T1910B : 15˚ to 68˚ 15˚ 66˚(68˚) Push back the panel to the end, and use from the point that it automatically returns. -
Page 7: Connecting The Display
Connecting the Display Using the Computer Make sure to turn off the computer and product. Connect the cable as below sketch map form Connect D-sub Cable (PC) Connect D-sub Cable (Mac) NOTE This is a simplified representation of the rear view. This rear view represents a general model;... - Page 8 * The software drivers support the following Microsoft Windows operating systems: Windows 2000, XP, VISTA(32bit, 64bit). NOTE When you lose Driver CD or want to update the program, please refer to http://www.lg.com. < USB cable for the touch screen > Analog Touch...
-
Page 9: Control Panel Functions
Control Panel Functions Front Panel Controls Control Function Use this button to enter or exit from the On Screen Display. MENU Button OSD LOCKED/UNLOCKED This function allows you to lock the current control settings, so that these settings are not inadvertently changed. To lock the OSD settings, press and hold the MENU button for several seconds. - Page 10 (display mode). The best display mode is: T1710B: 1280 x 1024 T1910B: 1280 x 1024 Power Button Use this button to turn the display on or off. This Indicator lights up as blue when the display is Power Indicator operating normally(On Mode).
-
Page 11: On Screen Display (Osd) Control Adjustment
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD. -
Page 12: On Screen Display(Osd) Selection And Adjustment
On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. (D-sub ) NOTE The order of icons may differ depending on the model (A11 to A16 ). - Page 13 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
- Page 14 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE To adjust the brightness of the screen. BRIGHTNESS To adjust the contrast of the screen. CONTRAST Set your own gamma value. : -50/0/50 GAMMA On the monitor, high gamma values display whitish images and low gamma values display high contrast images.
- Page 15 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description TRACKING To move image left and right. HORIZONTAL To move image up and down. VERTICAL To minimize any vertical bars or CLOCK stripes visible on the screen background. The horizontal screen size will also change.
- Page 16 On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description SETUP To choose the language in which the LANGUAGE control names are displayed. To adjust position of the OSD window POSITION on the screen. If the output of the video card is different WHITE BALANCE the required specifications, the color...
- Page 17 On Screen Display(OSD) Selection and Adjustment Select the button at the bottom of the monitor, then the OSD screen will appear. Menu Name Icons Sub-menu Name Main menu Sub menu Description This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc).
-
Page 18: Troubleshooting
Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet. Is the power indicator •... -
Page 19: Display Image Is Incorrect
Troubleshooting Display image is incorrect Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the H position and V position icon in the on screen display. - Page 20 Troubleshooting Display image is incorrect The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video card is properly inserted in the slot. •...
-
Page 21: Specifications
Specifications T1710B Display 43.27 cm (17.0 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 43.27 cm 0.264 mm x 0.264 mm (Pixel Pitch) Horizontal Freq. 30 kHz to 83 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic) Input Form Separate TTL SOG (Sync On Green) - Page 22 Specifications T1910B Display 48.19 cm (19.0 inch) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 48.19 cm 0.294 mm x 0.294 mm (Pixel Pitch) Horizontal Freq. 30 kHz to 83 kHz (Automatic) Sync Input Vertical Freq. 56 Hz to 75 Hz (Automatic)
-
Page 23: Preset Modes (Resolution)
Specifications Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.469 640 x 350 31.468 720 x 400 31.469 640 x 480 37.500 640 x 480 37.879 800 x 600 46.875 800 x 600 49.725 832 x 624 48.363 1024 x 768 60.123... -
Page 24: Installing The Wall Mount Plate
Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. Place the monitor with its front facing downward on a soft cloth. Separate the head and the stand with the use of a screwdriver. - Page 25 Installing the Wall mount plate Install the Wall mount plate. Wall mount plate(Separate purchase) This is stand-type or wall mount type and is connectable with Wall mount plate. Please refer to the installation guide for more details, which is provided when Wall mount plate is purchased.
- Page 26 Make sure to read the Important Precautions before using the product. Keep the User’s Guide(CD) in an accessible place for furture reference. The model and serial number of the SET is located on the back and one side of the SET. Record it below should you ever need service.
