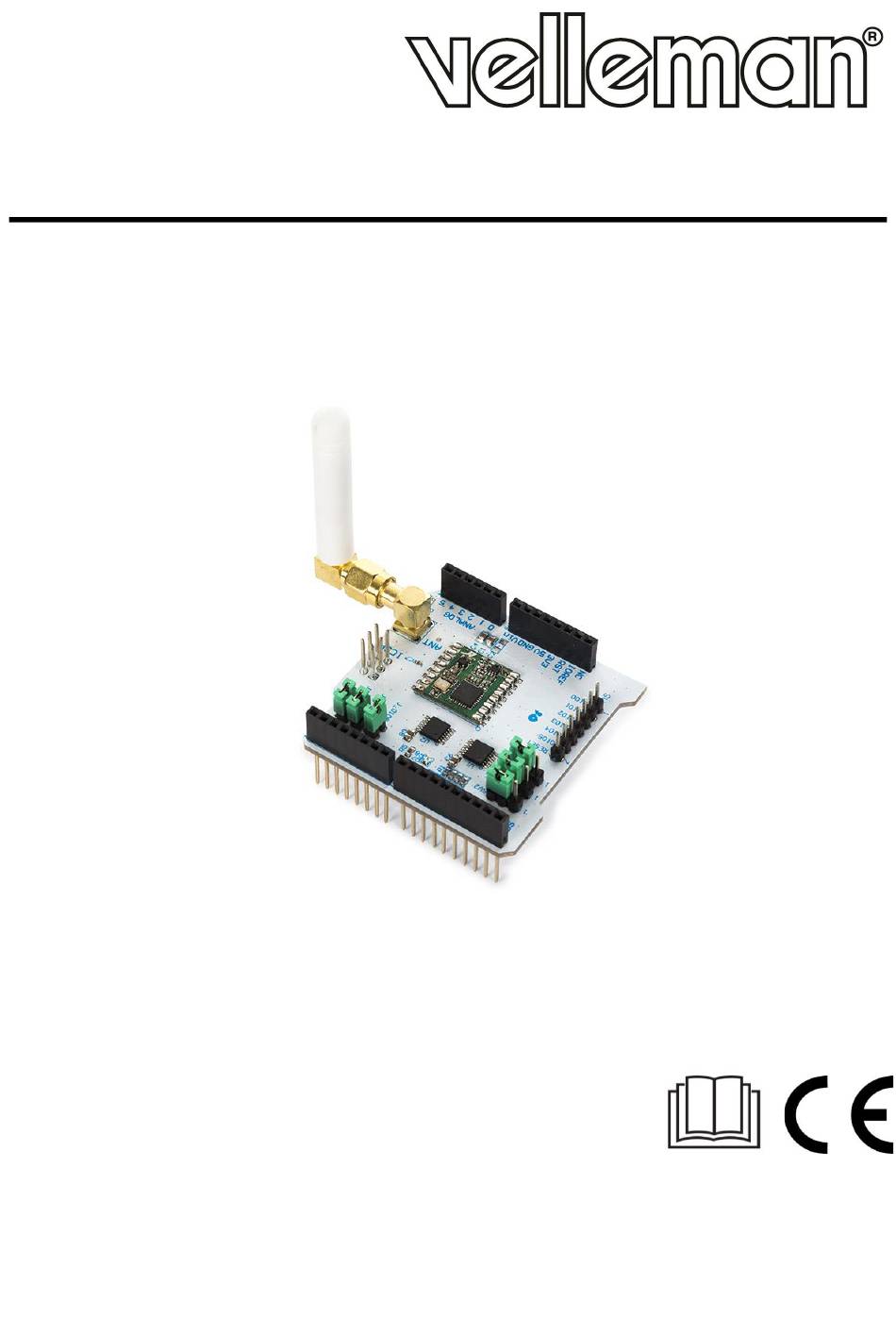

- Page 1 VMA214 USER MANUAL...
- Page 2 • Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.

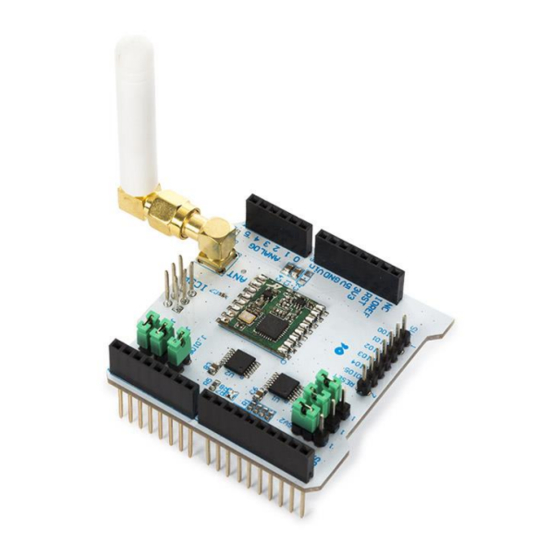

- Page 3 RF communication parameters are programmable and most can be set dynamically. The RFM69HCW is optimized for low power consumption while offering high RF output power and channelized operation. This VMA214 RFM69HCW Radio Shield connects the RFM69HCW module to the appropriate lines on the Arduino ®...
- Page 4 2x VMA214 RFM69HCW module • 1x VMA320 analogue temperature sensor module • 2x USB-A to USB-B cable Connecting Arduino ® 1. Connect the VMA214 RFM69HCW module to the Arduino ® UNO (or Arduino ® MEGA) as depicted. 2. Connect the VMA320 temperature module.
- Page 5 VMA214 Programming 1. Download the RadioHead library here and add it to the Arduino ® IDE. 2. Go to GitHub and download both codes here. 3. Open the RF69_CLIENT_SEND_DATA code and upload to the Arduino ® with the temperature sensor. You should see following output: 4.
- Page 6 © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
- Page 7 • Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
