ASSEMBLING AND PREPARING

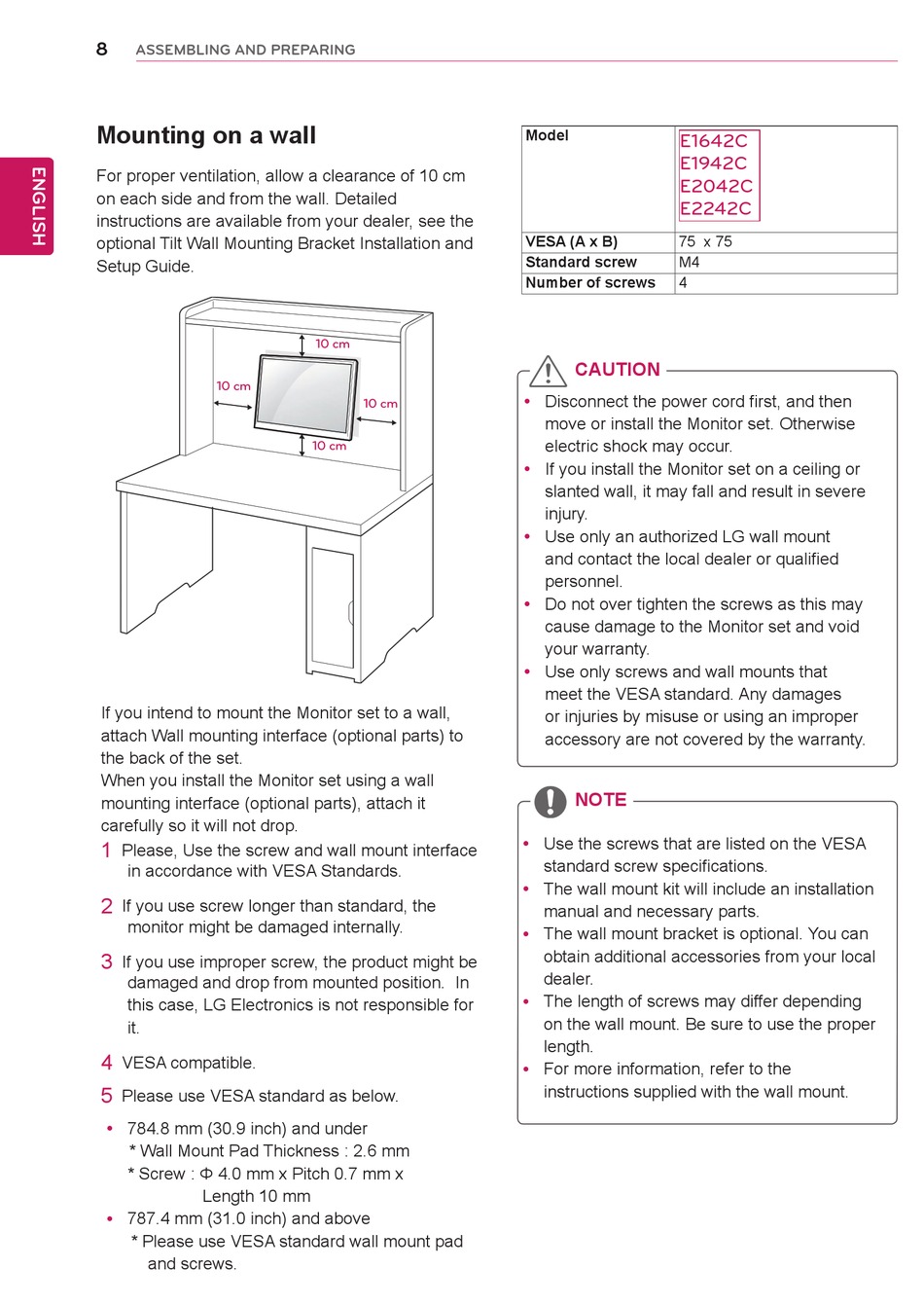

Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
10 cm
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1
Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2
If you use screw longer than standard, the
monitor might be damaged internally.
3
If you use improper screw, the product might be
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
4
VESA compatible.
5
Please use VESA standard as below.
784.8 mm (30.9 inch) and under
y
y
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
y
y
* Please use VESA standard wall mount pad
and screws.
10 cm
10 cm
10 cm
Model
E1642C
E1942C
E2042C
E2242C
VESA (A x B)
75 x 75
Standard screw
M4
Number of screws
4
CAUTION
Disconnect the power cord first, and then
y
y
move or install the Monitor set. Otherwise
electric shock may occur.
If you install the Monitor set on a ceiling or
y
y
slanted wall, it may fall and result in severe
injury.
Use only an authorized LG wall mount
y
y
and contact the local dealer or qualified
personnel.
D o not over tighten the screws as this may
y
y
cause damage to the Monitor set and void
your warranty.
U se only screws and wall mounts that
y
y
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
NOTE
Use the screws that are listed on the VESA
y
y
standard screw specifications.
The wall mount kit will include an installation
y
y
manual and necessary parts.
The wall mount bracket is optional. You can
y
y
obtain additional accessories from your local
dealer.
The length of screws may differ depending
y
y
on the wall mount. Be sure to use the proper
length.
For more information, refer to the
y
y
instructions supplied with the wall mount.
