Summary of Contents for Hyundai H-SA502

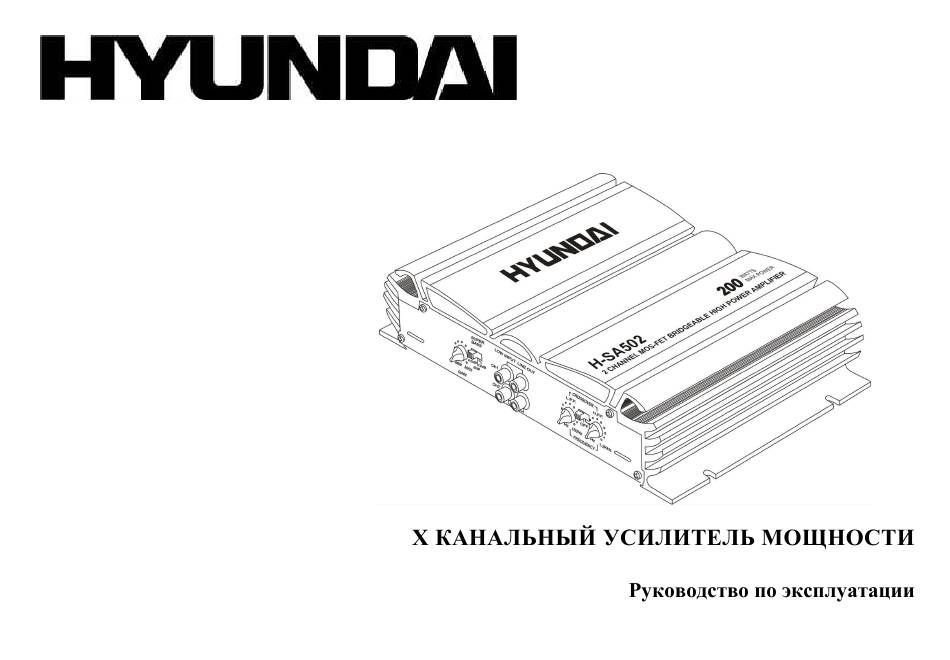

- Page 1 H-SA502 2-WAY CAR AMPLIFIER Instruction manual HYUNDAI H-SA502...
- Page 2 YOUR NEW HIGH FIDELITY BRIDGEABLE/STEREO AMPLIFIER IS DESIGNED TO DELIVER MAXIMUM ENJOYMENT AND ONE YEAR OF TROUBLE FREE SERVICE. Features · Four Class ''AB'' High-Current Dual Discrete Drive Stages. · Class ''AB'' Technology MOSFET PWM Power Supply. · Bridgeable & TRI-Mode Operation. ·...
-
Page 3: Installation
· Whenever wires pass through metal, rubber or plastic grommets must be used to prevent the mental from wearing through the installation and causing a short. · Whenever possible, use cable ties, mounting clamps and similar wiring aids (available from an electrical supply or auto parts store) Adding stress relief loops to wiring is also advisable to prevent straining or breakage. -
Page 4: Installation Diagram
INSTALLATION DIAGRAM Fig.1 CONNECTIONS INPUT CONNECTIONS · This amplifier will accept low level inputs. Low level is the same as line level. The low level signal is carried through RCA cables. It is preferred to use low level inputs to the amplifier if the head unit is equipped with the low level outputs. If not, you can use a "high to low converter" available through your local car audio shop. -
Page 5: Power Connections
POWER CONNECTIONS It is important to have good quality power and ground connections. Remember, to complete an electrical circuit, the ground connection is just as important as the positive power connection. Before any power connections are made, disconnect the ground cable at the battery. When the power supply lead, memory backup lead or ground lead are extended, use a 5mm (AWG5) or larger automotive grade cable which will withstand friction and heat to safe guard against fires occurring as a result of short-circuiting. - Page 6 Fig.3.
-
Page 7: Speaker Connections
SPEAKER CONNECTIONS This amplifier can operate in either one, two or three channel mode. The minimum impedance for single channel (bridged/mono) operation is 4-8 ohms. There channel tri-power is referred to stereo and mono at the same time. Minimum impedance remain the same for three channel (satellite/ subwoofer) systems as long as proper passive crossovers are used. - Page 8 ADJUSTMENTS 1.Set to the "H.P.F" position when the amplifier is used to drive a tweeter/midrange system. The frequencies below the crossover point will be attenuated at 12dB/octave. Permits adjustment of the crossover frequency ,by rotating the knob to select any frequency between 80Hz to 1.2kHz as the crossover point. 2.Set to the "L.P.F"...
-
Page 9: Troubleshooting Guide
TROUBLE SHOOTING GUIDE · Before you consult this listing, make sure the vehicle s electrical system is working properly by verifying that other electrical items (e. g. headlights, Windows, etc.) still function correctly. SYMPTOM PROBABLE CAUSE SOLUTION Low or N.C. remote turn-on connections Check remote turn-on voltage at amp and head unit Blown fuse Replace with new fast-blow fuse... -
Page 10: Low Pass Filter
SPECIFICATION MODEL H-SA502 4 OHMS @ 0.5% 0Hz - 30kHz) THD (2 60 W 2 OUTPUT OF BRIDGED(BTL) 2 OHMS @ 0.5% THD 120 W 2 OPERATION INTO 4 OHMS @ 1KHz, 1% THD 250 1 (VARIABLE) LOW PASS FILTER... - Page 11 · «A » MOSFET PWM. · · · · 0/+6/+12 · RCA, · · · · · · · · · · · · 5,27 (AWG 10). · HYUNDAI H-SA502...
- Page 12 · · · · · · · « ». · 0,832 (AWG 18). · +12 . · · · · · · .1). HYUNDAI H-SA502...
- Page 13 · · ) RCA .2). · (HIGH LEVEL INPUT) 0,832 (AWG 18), . 2. HYUNDAI H-SA502...
- Page 14 · · AWG5), · «GND» · · · · · «REMOTE» «remote amplifier» · « +» HYUNDAI H-SA502...
- Page 15 HYUNDAI H-SA502...
- Page 16 · 4 - 8 · · .3). HYUNDAI H-SA502...
- Page 17 · « .F», · «L. .F», · «OFF». · «MIN» (3 ). ¾ « » (200 , ¾ · «BASS» 0/+6/+12 «L.P.F» «OFF»). HYUNDAI H-SA502...
- Page 18 · , RCA HYUNDAI H-SA502...
- Page 19 H-SA502 @ 0,5% .(20 @ 0,5% ) @ 1 ; 1% 250 1 WTD) >95 273 62 180 HYUNDAI H-SA502...
