5.3 Section cut from the work surface

The following operation requires
building and/or carpentry work
and must therefore be carried out
by a competent tradesman.
Installation can be carried out on
various materials such as masonry,
metal, solid wood or plastic
laminated wood as long as they
are heat resistant (>90°C).

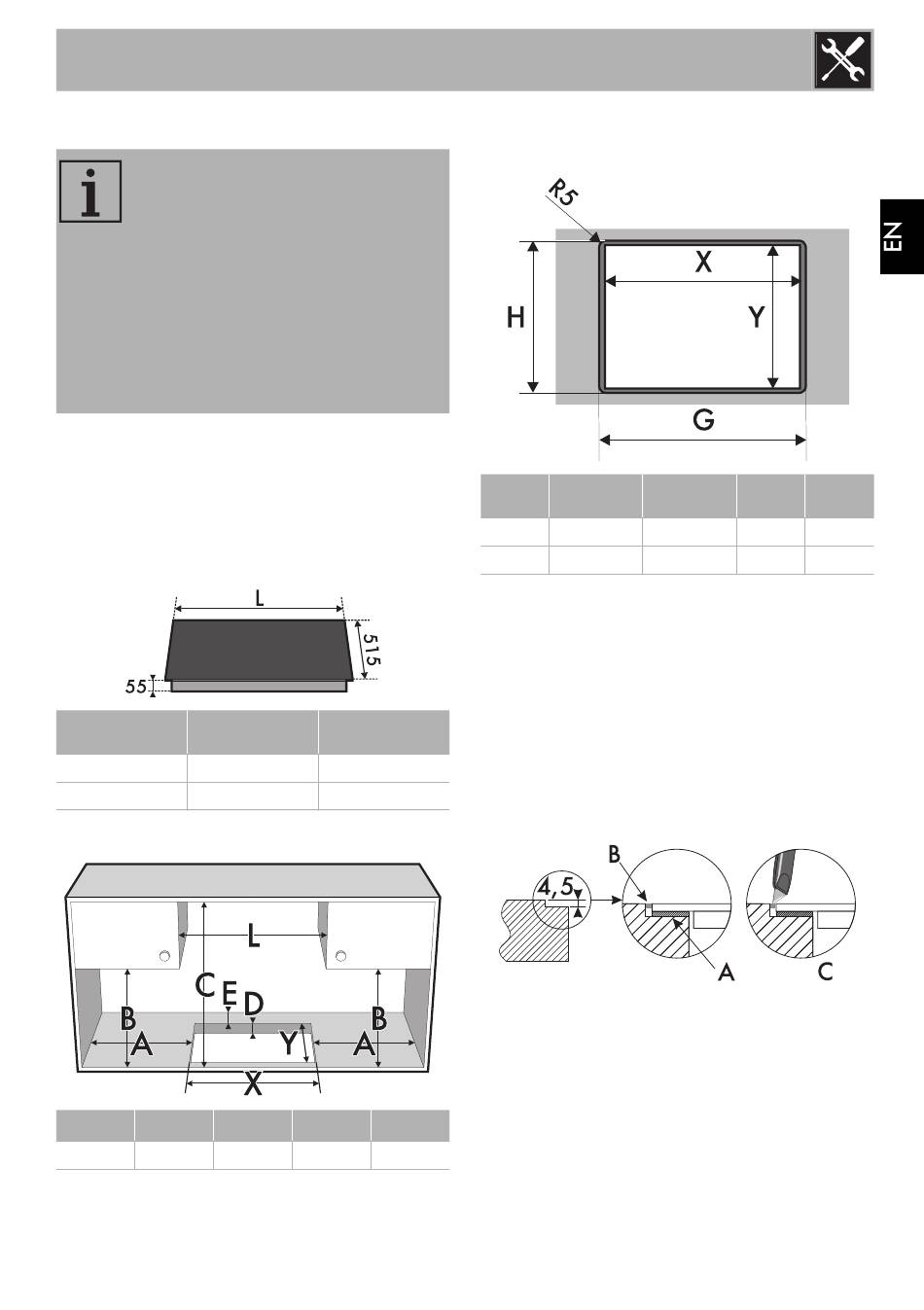

Create an opening with the dimensions
shown in the figure in the work surface of
the piece of furniture.
Mounting dimensions for hob with
bevelled edge
L (mm) X (mm)
600 555 - 560
750 555 - 560
A (mm) B (mm) C (mm)
min 50 min 460 min 750 20÷60
Installation
Y (mm)
478 - 482
478 - 482
D (mm) E (mm)
min 50
Mounting dimensions for hob with
straight edge
L (mm) X (mm)
600 555 - 560 478 - 482
750 555 - 560 478 - 482
After laying the adhesive seal (A) on the
glass surface and after positioning and
securing the hob, fill the edges with
insulating silicone (B) and wipe away any
excess.
In the event the hob needs to be removed,
cut the silicone using a cutter before
attempting to remove it (C).
Y (mm) G (mm) H (mm)
604 519
754 519
47
