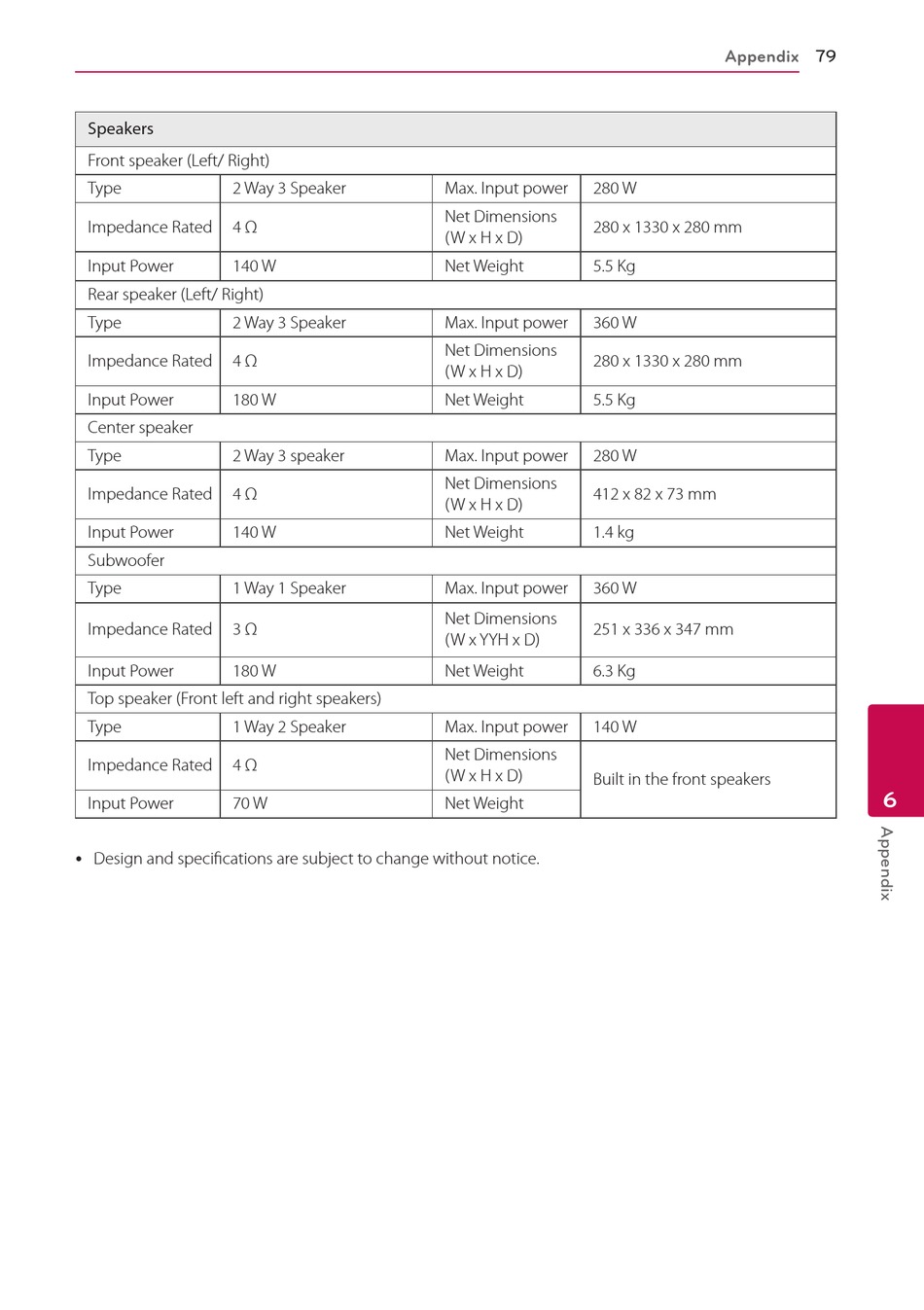

LG BH9520TW Owner's Manual page 79

Speakers
Front speaker (Left/ Right)
Type 2 Way 3 Speaker
Impedance Rated 4 Ω
Input Power 140 W
Rear speaker (Left/ Right)
Type 2 Way 3 Speaker
Impedance Rated 4 Ω
Input Power 180 W
Center speaker
Type 2 Way 3 speaker
Impedance Rated 4 Ω
Input Power 140 W
Subwoofer
Type 1 Way 1 Speaker
Impedance Rated 3 Ω
Input Power 180 W
Top speaker (Front left and right speakers)
Type 1 Way 2 Speaker
Impedance Rated 4 Ω
Input Power 70 W
y Design and specifications are subject to change without notice.
Max. Input power 280 W
Net Dimensions
280 x 1330 x 280 mm
(W x H x D)
Net Weight 5.5 Kg
Max. Input power 360 W
Net Dimensions
280 x 1330 x 280 mm
(W x H x D)
Net Weight 5.5 Kg
Max. Input power 280 W
Net Dimensions
412 x 82 x 73 mm
(W x H x D)
Net Weight 1.4 kg
Max. Input power 360 W
Net Dimensions
251 x 336 x 347 mm
(W x YYH x D)
Net Weight 6.3 Kg
Max. Input power 140 W
Net Dimensions
(W x H x D)
Built in the front speakers
Net Weight
Appendix 79
6
