Summary of Contents for EDLUND G-2

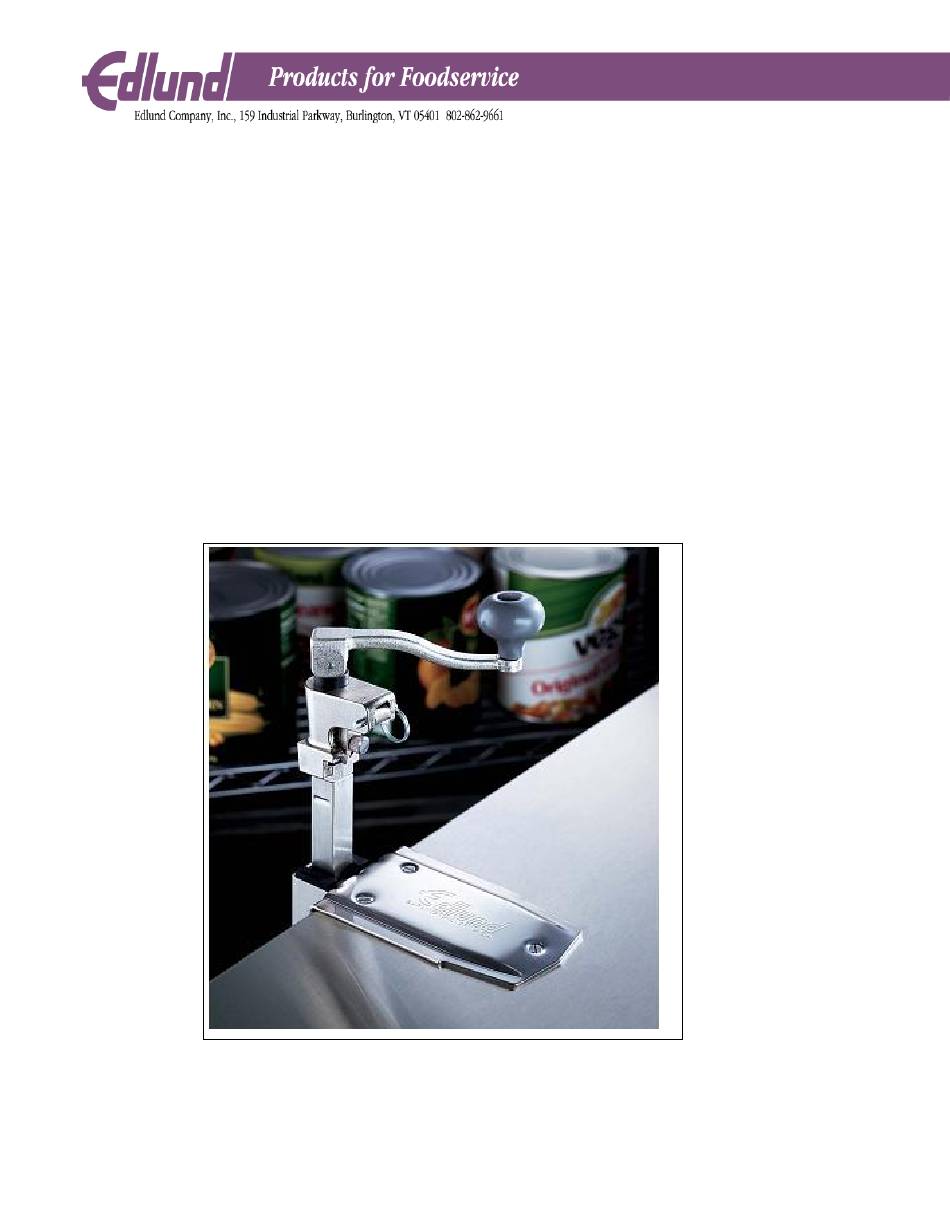

- Page 1 M129 SERVICE MANUAL- M129 MODEL #G-2 MANUAL CAN OPENER...
- Page 2 Place head of rivet on top of steel plate and upset other end of rivet using hammer. Remove the spring compression tool and insert gear (G011) with stamped word "Edlund Up" toward top of side bar. Place bushing (B122) into opening at top of slide bar and slide arbor of handle and arbor assembly (A210) down through bushing, washer and spring and into gear.
- Page 3 M129 Model No. G-2 Can Opener Trouble Shooting Guide Problem Cause Correction I. Can opener 1. Drive gear is worn. 1. Replace gear (G011). will not turn can. 2. Drive gear needs cleaning. 2. Clean drive gear (G011) using cleaning brush (ST-93).
- Page 4 M129 P 0 2 6 S S 2 6 1 A 2 1 0 P 1 6 5 A 0 3 2 K 0 1 1 G A 2 0 9 S 2 5 5 - 3 H 0 0 2 S 1 5 1 - 3 B 1 2 2 - 3 P 1 9 9...
- Page 5 G011SP GEAR, #G-2, #2 SINGLE PACK H002 HANDLE, #2, #8, #G-2 H050 HOLDER, #G-2 KNIFE I066 INSERT, #U-12 AND #G-2 BASE (#2 REG) K070M KNIFE, #G-2, #2/20 24 PKG. K070SP PKG. KNIFE, #G-2, #2/20 SINGLE PACK K011G KNOB, #G-2 MANUAL CAN OPENER...
