- Page 1 RVS-6137-DVR 7" LED Digital Color Rear View Monitor with RCA and DVR Connections Instruction Manual © Rear View Safety 2021...
- Page 2 Rear View Backup Monitor! With this manual you will be able to properly install and operate this item. One of our keystone monitors, the RVS-6137-DVR is a high quality 7" LED Digital Panel display and is equipped with auto-dimming and a built-in speaker.
- Page 3 IMPORTANT USAGE WARNING The Rear View Camera System is designed to help the driver safely detect people and/or objects helping to avoid damage or injury. However, you the driver, must use it properly. Use of this system is not a substitute for safe, proper or legal driving.
- Page 4 SAFETY INFORMATION BEFORE DRILLING Please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility Make sure to firmly affix the product before use. of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components.

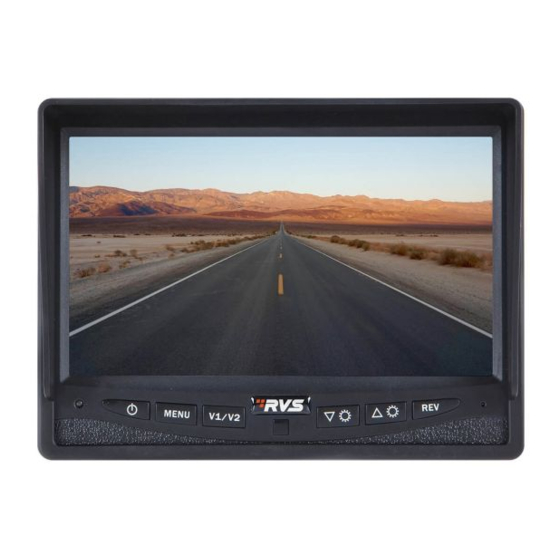

- Page 5 MONITOR DIAGRAM INSTALLING SUNSHIELD Step 1) Put sunshield cover on Installation of Installation of SUNSHIELD the display. U Bracket Flushmount Bracket Step 2) Put the monitor with sunshield cover in the back cover (only for embedded MONITOR monitor) SPLITTING BACK COVER SUNSHIELD MONITOR Figure 1.1...
- Page 6 INSTALLING MONITOR NAVIGATING MENU 4 pin Female 4 pin Male Yellow - Video RCA White - Audio RCA 4 pin Male 4 pin Female Fuse Red - POWER Black - GROUND Blue - BACK MENU DESCRIPTIONS • "Brightness" "Contrast "Saturation" "Sharpness": adjust image properties •...
- Page 7 TROUBLESHOOTING MONITOR SPECIFICATIONS Type LED Digital Panel PROBLEM SOLUTION Screen Size 7" • Do a hard reset, unplug all cables leave out for Dot Resolution 800 X 3 (RGB) X 480 1 minute and then re-connect them Display Format 16:09 •...
- Page 8 ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR DISCLAIMER REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE...
- Page 9 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Engineered For Vehicle Safety...
