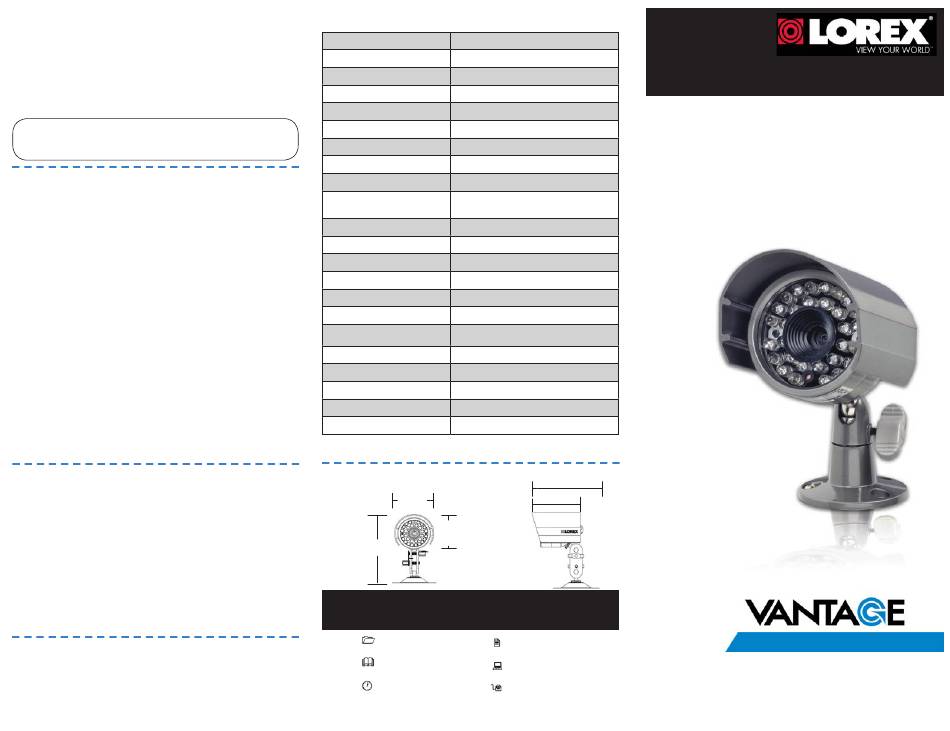

Lorex CVC7661 Series Quick Start Manual

Contents
• IR Night Vision Camera*
• Mounting Kit*
• 60ft BNC / Power Extension Cable*
• Power Adapter**
*Model CVC7661PK4 is a 4-pack that includes four of the listed items.
** A "4-in-1" Power Adapter that provides power to four cameras may be substituted for four
individual power adapters, depending on product configuration.
WARNING - A REGULATED UL / CSA APPROVED power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.

Features

• Super+ Resolution with megapixel optics delivering crystal clear
video at 660TV lines
• BrightNight viewing with enhanced low light image sensor
• Close-up recognition at night with auto-light compensation
prevents wash-out effect
• Anti-glare feature ensures clear images under strong lighting
conditions
• Accurate colors with Lorex's automatic light filtering technology
• Reliable camera operation coupled with patented ImageCool™
technology ensures optimal performance in extreme
temperatures (–22° ~ 122°F / –30° ~ 50°C)
• Long range infrared (IR) night vision (100ft / 30m)*
• 3.6mm lens captures a 78° field of view (diagonal)
• Weatherproof design: ideal for indoor and outdoor applications
(IP66)**
• Day / Night mode: picture automatically switches to B&W
delivering better clarity in low light conditions
• Versatile mounting options: ceiling, counter or wall mountable
• 60ft BNC / power extension cable provided per camera
Disclaimers:
* Infrared illumination range under ideal conditions. Actual range and clarity may vary
depending on scene / object reflection and camera application.
** Not intended for submersion in water. Installation in a sheltered location recommended.

Warning/Caution

• Read this guide carefully and keep it for future reference
• Follow all instructions for safe use of the product and handle with care
• Use the camera within given temperature, humidity and voltage levels
noted in Camera Specifications
• Do not disassemble the camera
• Do not point the camera directly towards the sun or a source of intense
light
• Use only the supplied regulated power supply. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty
• Periodic cleaning may be required. Use a damp cloth only. Do not use
harsh cleaners or aerosol cleaners.
• The supplied extension cable is rated for surface mounting only
• Cables for in-wall / floor-to-floor installations are sold separately

Installation Tips

• Point the camera where there is the least amount of obstructions (i.e. tree
branches)
• Install the camera in a location that is difficult for vandals to reach
• Secure cabling so that it is not exposed or easily cut
• Camera rated for outdoor use. Installation in a sheltered location
recommended

Camera Specifications

Image Sensor 1/3" Color Image Sensor
Video Format NTSC
Effective Pixels H: 720 V: 480
Resolution 660 TV Lines
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 48dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/25,000 Sec.
Min. Illumination 0.1 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 3.6mm F2.0 / Fixed
FOV (Diagonal) 78°
Termination BNC Type
IR LED Qty. / Type 30 pieces / 850nm
Night Vision Range* 100ft / 30m
Power Requirement 12V DC ±10%
Power Consumption Max. 350mA (w / IR)
Operating Temp. Range –22° ~ 122°F / –30° ~ 50°C
Operating Humidity Range < 90% RH
Environmental Rating** IP66
Weight (including stand) 0.7lbs / 0.3kg
* IR Illumination Range under ideal conditions. Objects at or beyond this range may be partially or
completely obscured, depending on the camera application.
** Not intended for submersion in water. Installation in a sheltered location recommended.

Dimensions

130mm / 5.1"
66mm
/ 2.6" 80mm / 3.2"
62mm
/ 2.5"
103mm / 4"
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
User Manuals
Quick Start Guides
Copyright © 2012 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE
SUPER+ RESOLUTION WEATHERPROOF
Quick Start Guide
English Version 1.0
